8.3.1. Exchange View Menu

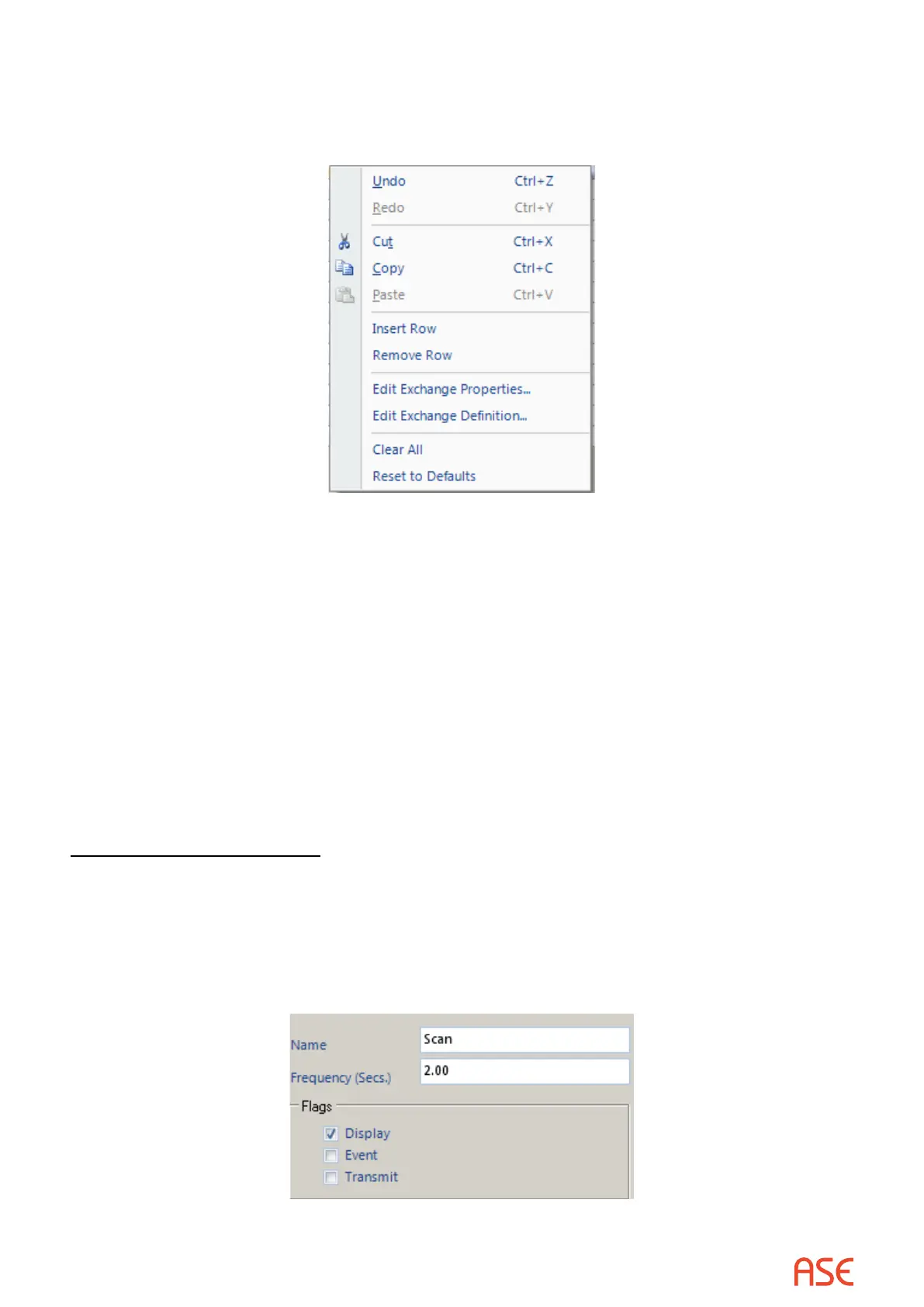

To edit an exchange, select the exchange and then the Edit pull-down menu or, alternatively,
right-click anywhere in the row. This will display an edit menu.
• Cut, Copy, Paste, Insert Row, Remove Row, and Clear All operate on the entire row
according to conventional meanings
• Since there is no concept of a “blank” exchange, Insert Row will present a list of exchanges
dened for the active protocol, requiring the user to select one to complete the Insert Row
operation
• Reset To Defaults erases all existing exchanges, replacing them with the default set for the
active protocol
• Edit Exchange Properties requests a menu for editing exchange information such as device
and point addresses and transmission frequency. More details are provided below
• EditExchangeDenition requests a menu for editing detailed structural exchange information.
It is useful primarily for adjusting scan messages for most legacy protocols. Editing the
exchange denition is not supported for IEC 60870-5-10x and DNP3; for these protocols, use
Edit Exchange Properties.
Edit Exchange Properties
The Exchange Properties Menu supports editing several key properties about each exchange.
However, since these properties can di󰀨er signicantly from protocol to protocol, most details
have been located in the protocol-specic sections.
The properties common to all protocols and shown in the example below are used for Master
Simulation mode.
