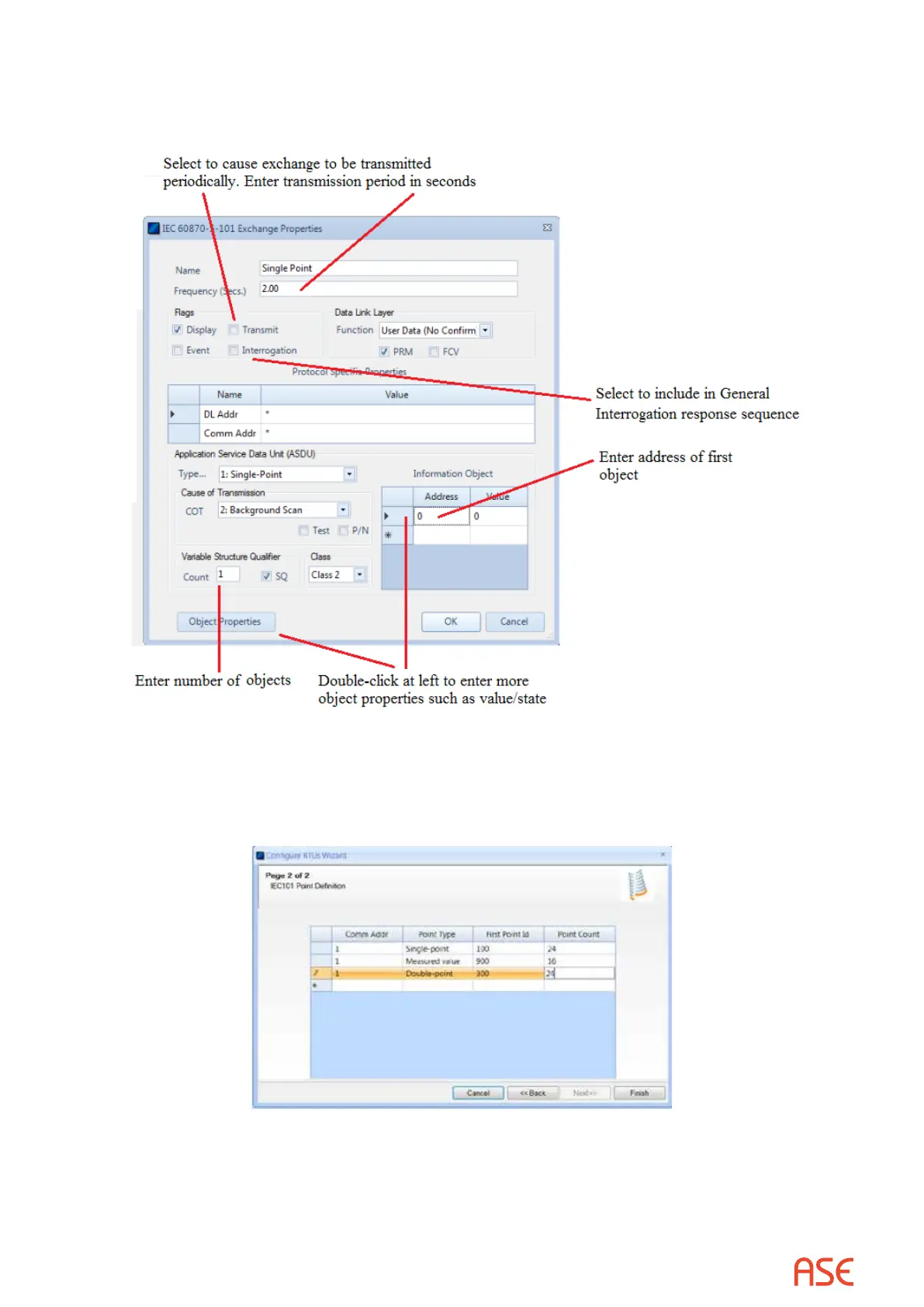

be sent to the master, edit transmission information from the Exchange Proprieties menu. The
example presented below is for Single Points. While other properties than those shown can be
entered, a basic RTU simulation conguration requires entry only of those shown.
28.9. IEC 60870-5 – Task Mode
Virtually all Task Mode setup starts by rst conguring points/objects in the RTU data base. For
example:
The conguration shown above creates 24 Single Points, 16 Measured Values, and 24 Double
Points with consecutive Information Object address starting at the address contained under the
First Point ID column.
