ASE2000 V2 Communication Test Set User Manual 149

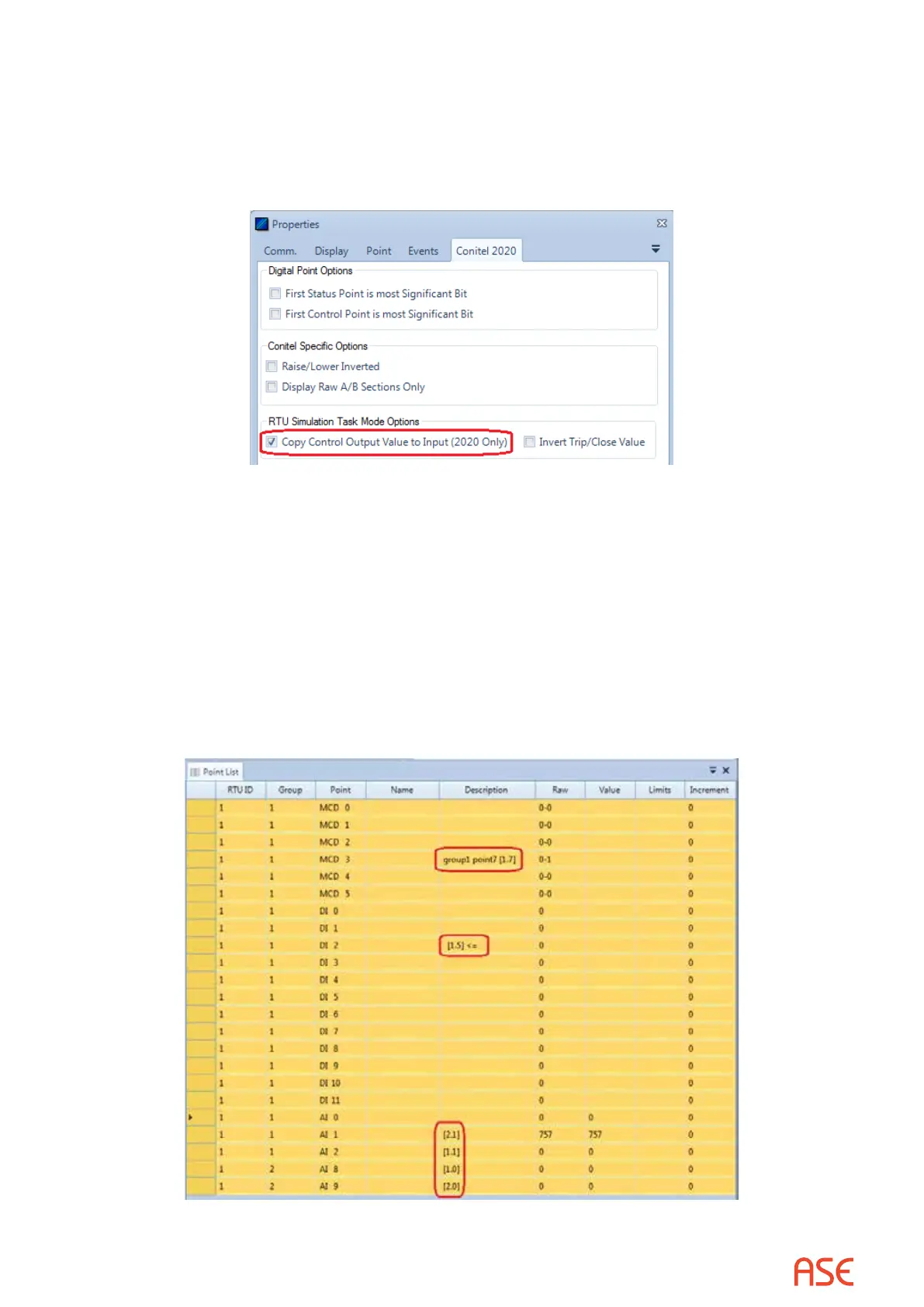

25.2.4. Conitel – Mapping Output Controls to Change Input Point Values
To modify values at the RTU by sending controls from the master station, select this feature from
the Conitel tab in the Properties menu. (This feature is not available for all Conitel variations.) A
Trip command defaults to a value of zero and a Close command defaults to one. To invert this
interpretation, check the ‘Invert Trip/Close Value’ option.
Add the control point enclosed in square brackets to the description eld of the input point to
create a link. For Conitel, the point is referenced by group and point number, [Group.Point]. It is
a one-way link. Individual points may be inverted by prexing the point ID with an exclamation
point such as [!2.3].
Binarylink–[1.7]appearsintheDescriptioneldforPointMCD3: Write commands to point
7 in group 1 will change the value of MCD 3.
Analoglink–[2.1]appearsintheDescriptioneldforPointAI1: A value written to point 1
in group 2 will be set as the value of AI 1 in group 1. Note that point numbers are relative to their
position in the group. Point AI 9 represents point 1 in that group (point AI 8 is point 0 in group 2).
