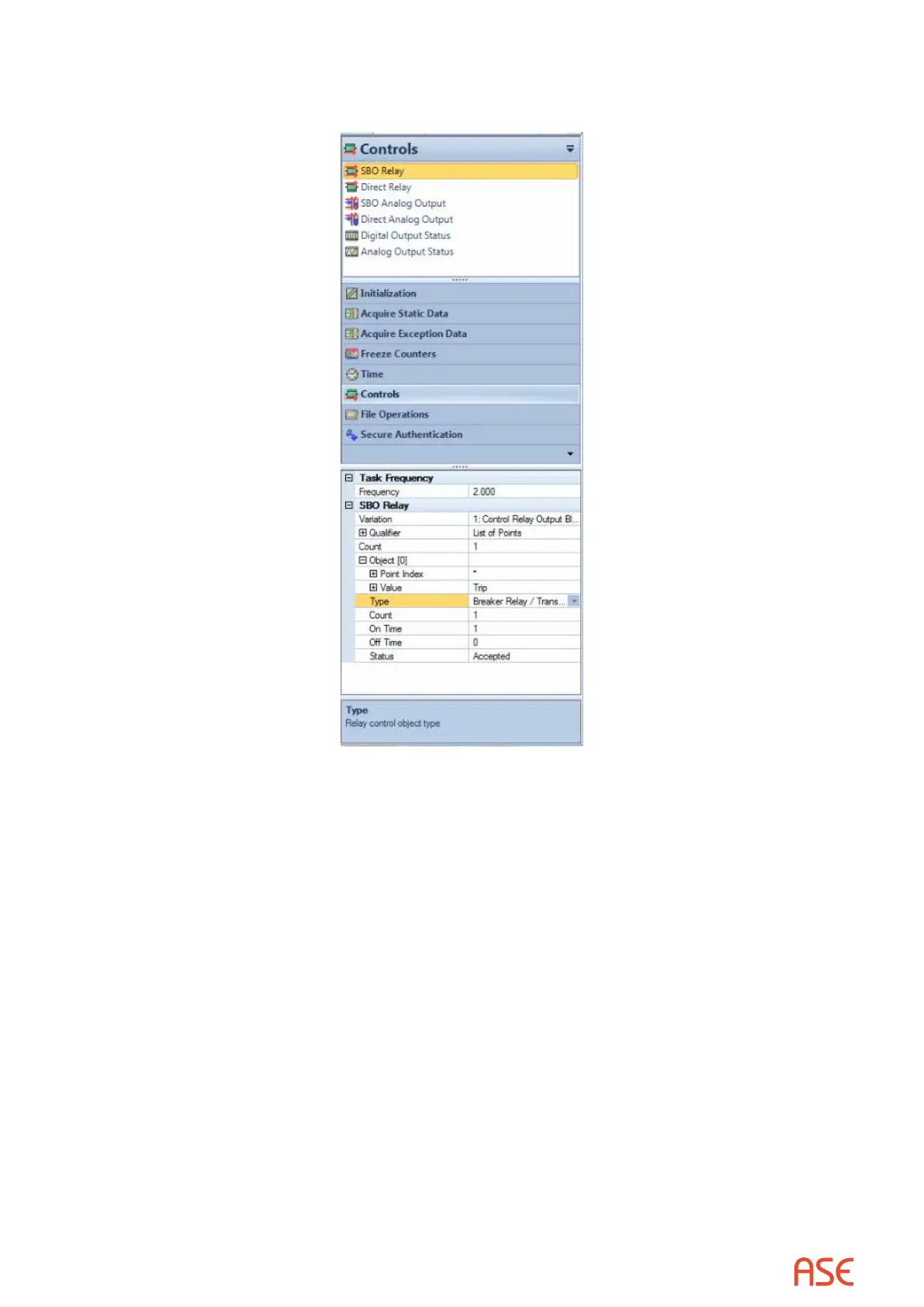

To issue supervisory controls in Task Mode Master Simulation, select the Controls task group
and provide the desired values as shown below.
26.7.3. DNP3 – Task Mode RTU Simulation
Task mode RTU Simulation is mostly automatic. Task Mode starts by selecting a pre-congured
device, with point object types and indices, such as shown below, already dened. The ASE2000
automatically generates scan responses consistent with data in this table. There is no need to
modify any exchanges. NOTE: If Binary or Analog control points are to be simulated, the points
must be dened in the device conguration. For Binary points this would be Binary Input Status
points. For Analog controls, this would be Analog Input Status points as shown below.
