Applied Systems Engineering ASE2000

ASE2000 V2 Communication Test Set User Manual 156
Mask species an 8-bit mask to exclusive-OR against the value eld to create a value for the
next response.
Quality codes present all DNP3 Binary object quality codes.
Counters

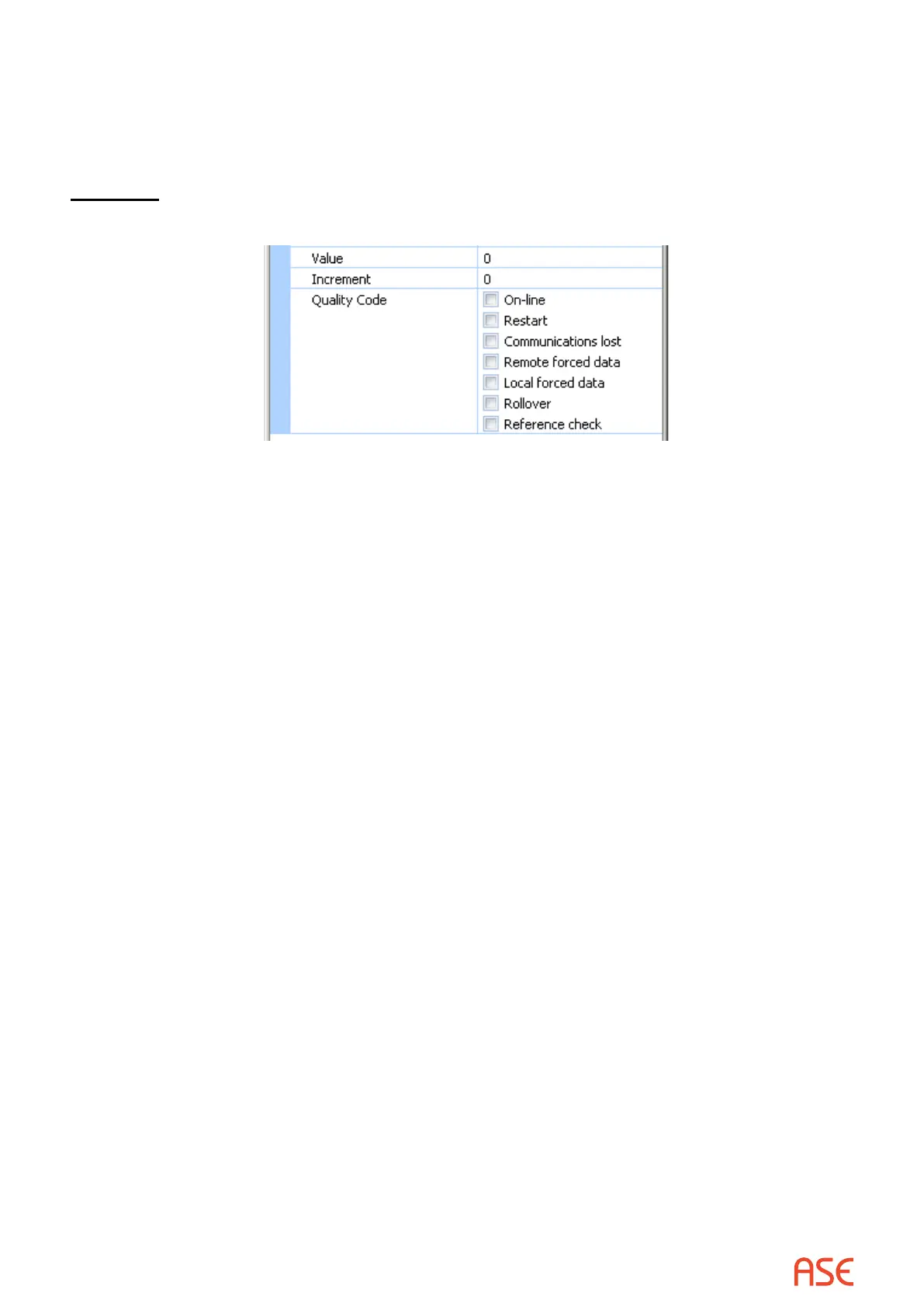

The following menu appears for counter input objects:
Value species the value to be sent in the next response. This is repeated for all counters
contained in the underlying object denition.
Increment species an amount to add the value eld for the next response. Values wrap to
0 after exceeding a maximum. The maximum is set by the ASE2000 and can be viewed and
changed from the Properties dialog and Point tab.
Quality codes present all DNP3 counter object quality codes.
26.2. DNP3 – Properties Tabs
26.2.1. DNP3 – Protocol Tab (Exchange Mode - Serial and LAN/WAN)
Certain protocol specic properties can entered from the Protocol tab in the Properties menu.
This menu is accessed by selecting the Tools pull-down list and the Properties option. Following
is the menu that appears for DNP3 protocol in Exchange Mode.
