ASE2000 V2 Communication Test Set User Manual 185

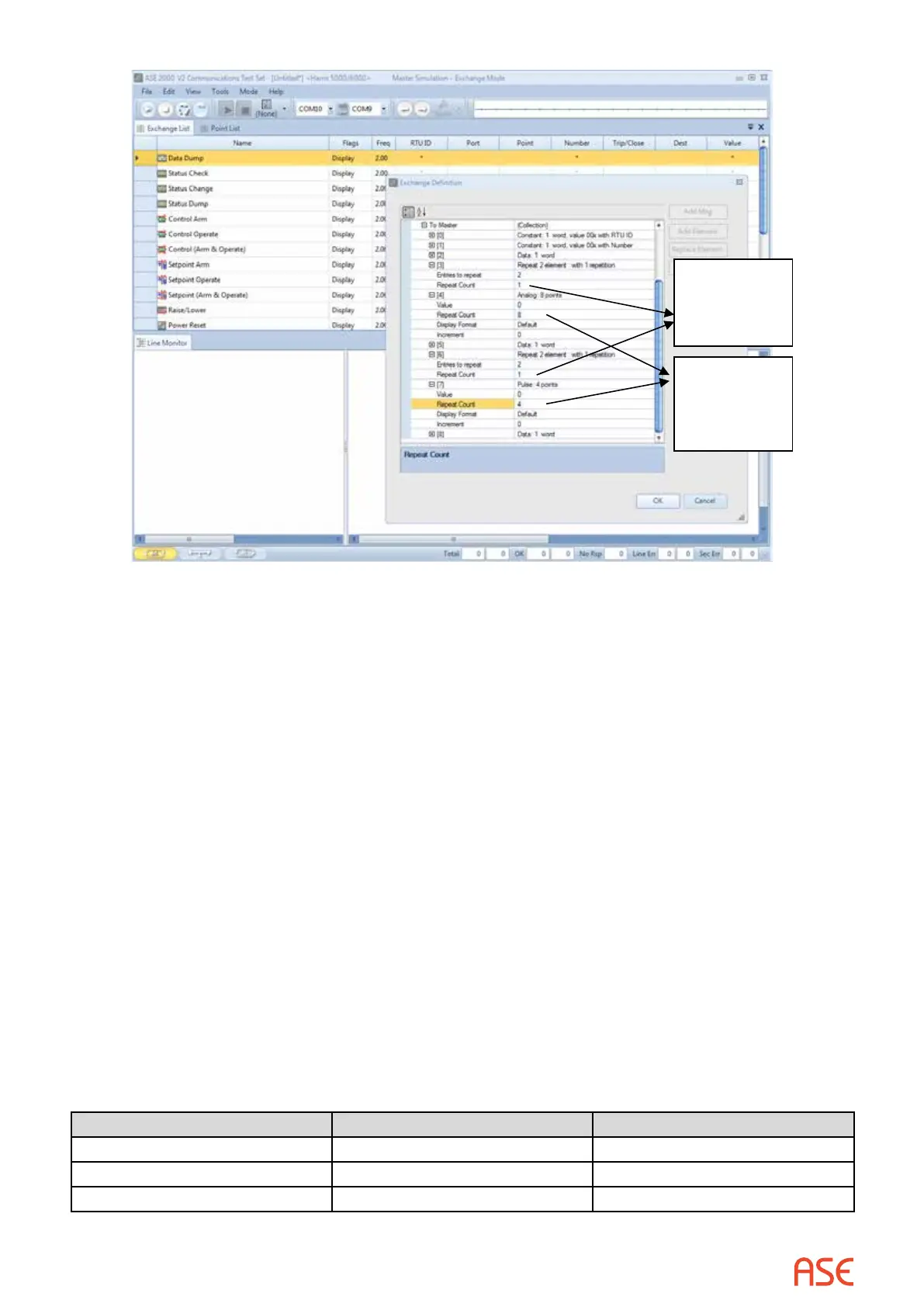

Set count for
number of Analog
and Pulse
Accumulator
ports
Set count for
number of Analog
and Pulse
Accumulator
points
27.1.2. Harris 5k/6k – Set RTU ID and Group
The RTU ID and Group number can be set for all exchanges from the Tools>Properties>Protocol
tab or individually on the Exchange List view.
27.1.3. Harris 5k/6k – Exchange Mode Line Monitor
No additional setup is required. If cabling is correct Line Monitoring can be started by selecting
the Start button.
27.1.4. Harris 5k/6k – Exchange Mode Master Simulation
If the Communication Properties, Exchange Denition, and RTU ID have been congured, Master
Simulation operations can be performed. No additional setup is required.
27.1.5. Harris 5k/6k – Exchange Mode RTU Simulation
If the Communication Properties, Exchange Denition, and RTU ID have been congured, Master
Simulation operations can be performed. No additional setup is required. Note, if the RTU ID is
set to * the test set will respond to any RTU ID.
27.2. Harris 5k/6k – Task Mode
For all protocols, Task Mode setup starts by rst conguring an RTU and RTU point conguration
in the device data base or selection of an existing RTU denition. See the non-protocol specic
section “Task Mode Device Selection and Conguration”. Note, when conguring the points for
a Harris 5k/6k device, it is necessary to specify the point type for each port.
Group Type Command Point Type
Analog Data Dump Analog
Pulse (Accumulator) Data Dump Pulse Accumulator
Digital Status Dump Digital
