ASE2000 V2 Communication Test Set User Manual 216
While it is best to accurately enter the RTU/point data base as described, it is not required for
Line Monitor operations. An undeîš¿ned input point is automatically added to the data base when
detected.
30.2.2. Telegyr 8979 – Task Mode Master Simulation
Master Simulation operation works by selecting a Task Group and then a Task Activity within that
group.
With the desired Task Activity selected, execute the function one time using the Send Once icon
or continuously by selecting the Start Button.
For Telegyr 8979, the Task Groups are:
• Analog Data
• Indication Data
• SOE Data
• Digital Data
• Accumulator Data
• ADC Reference Data

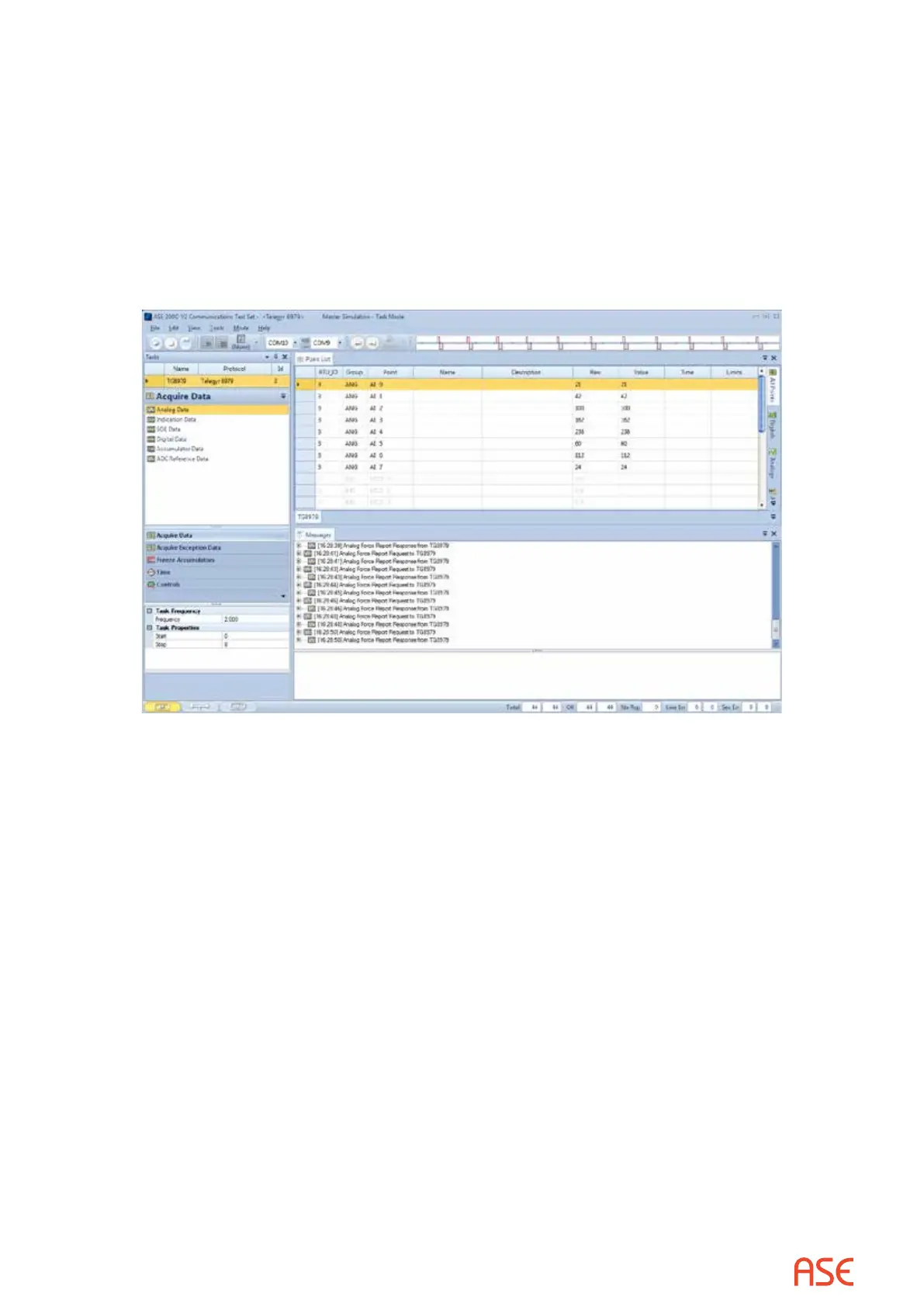

The above display illustrates Analog Data (Analog Force Report) and the display below illustrates
activity.
