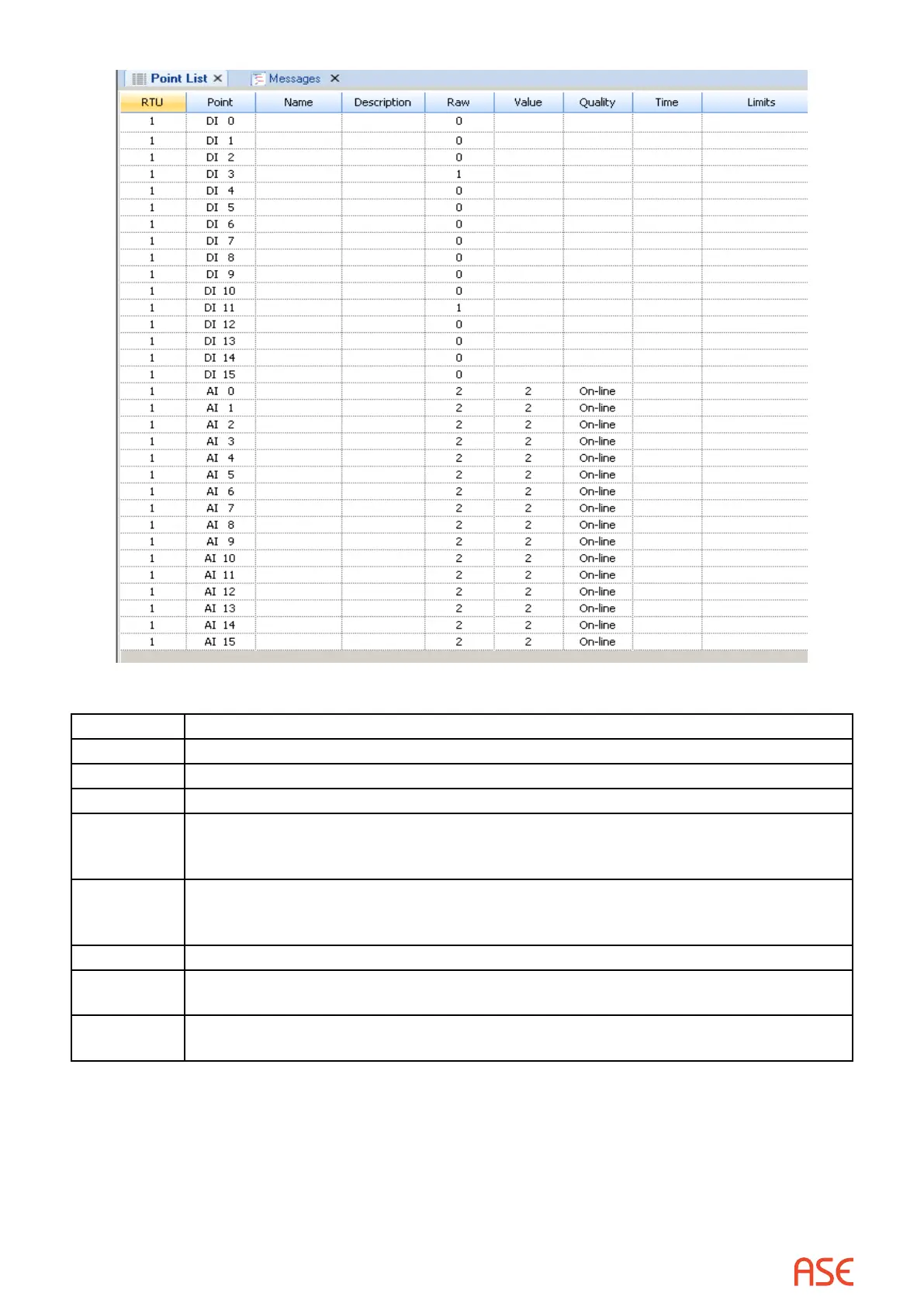

Points List columns are:
RTU Remote device ID
Point Point type and ID
Name Optional point name, user enterable
Description Optional point description, user enterable
Raw Value reported in the communication protocol. Analog and counter values are
converted to decimal. Digital points are shown as one or two-bit values as dened by
the protocol
Value Raw value converted according to user entered rules. For analogs, the user can
specify a scale and o󰀨set for linear conversion. For digitals, the use can supply state
names such as OPEN for a raw value of 0 and CLOSE for a raw value of 1
Quality As reported by the protocol
Time A time stamp, if reported in the communication message for the associated point. If not
reported, the eld is blanked
Limits User dened low/high limits for analogs. If entered, information is shown in red when
the point’s value is outside the limits.
