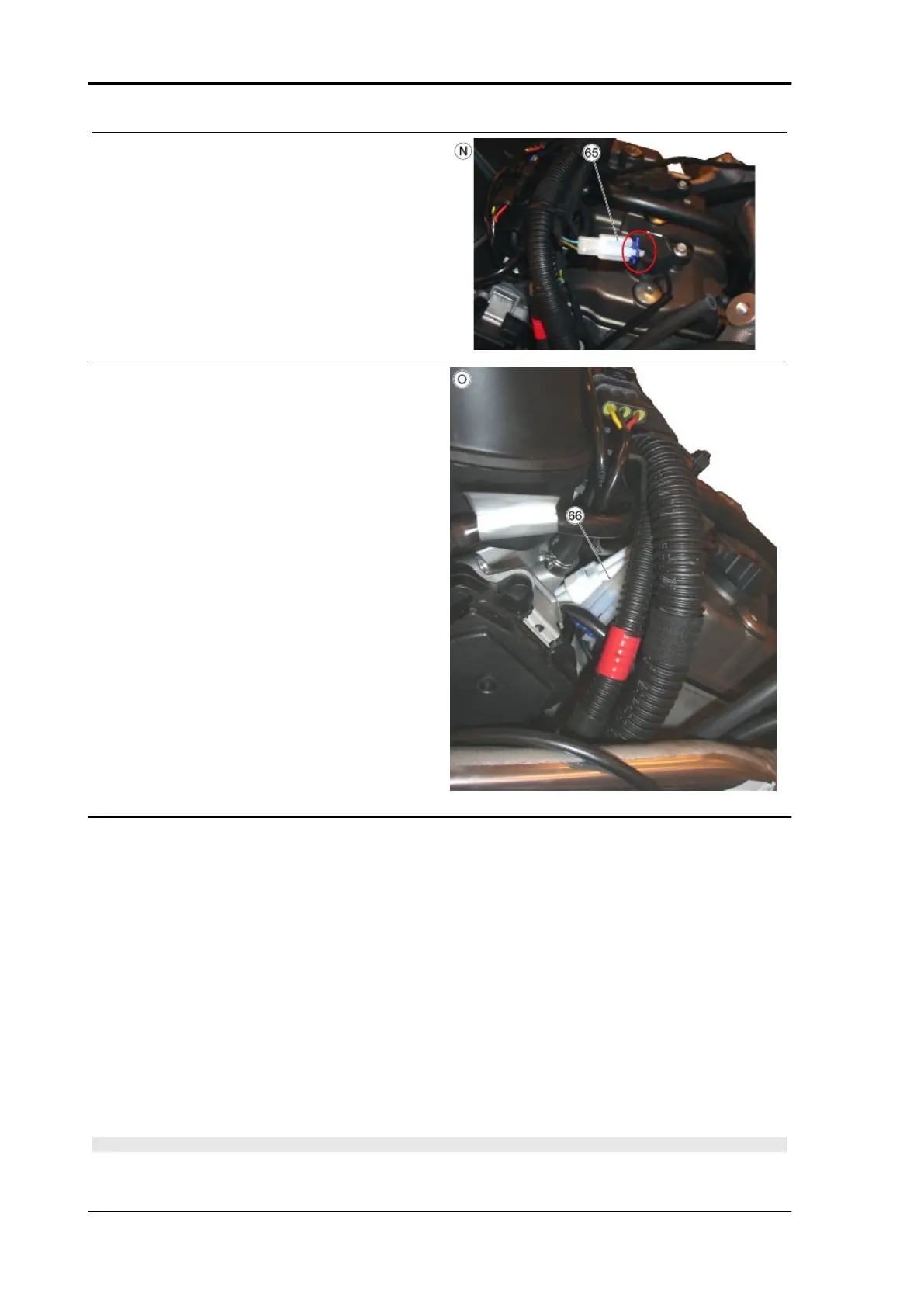

TABLE N
65. Stand switch connector
TABLE O
66. Set the connectors for stand switch, Quick Shift
and gear sensor under the two corrugated pipes.
TABLE P1 - NOTES FOR FITTING THE GROUND CABLES
67. Flanged M6x15 screw
68. Engine GND lug terminal from the engine cable harness
69. Engine GND lug terminal from the vehicle cable harness
70. Engine - battery ground cable engine Gnd lug terminal
71. Cable grommet
72. Flanged M6x16 screw
73. Chassis GND lug terminal from the engine cable harness
To avoid inverting the ground connections, unscrew the screw (67) from the engine; to connect the
other ground connections, the chassis ground cable (73) can be connected with the screw (72), as
shown in the figure.
CAUTION
BE CAREFUL NOT TO INVERT THE TWO GROUND LUG TERMINALS (68) AND (73).
Electrical system RSV4 Factory a-PRC
ELE SYS - 120
