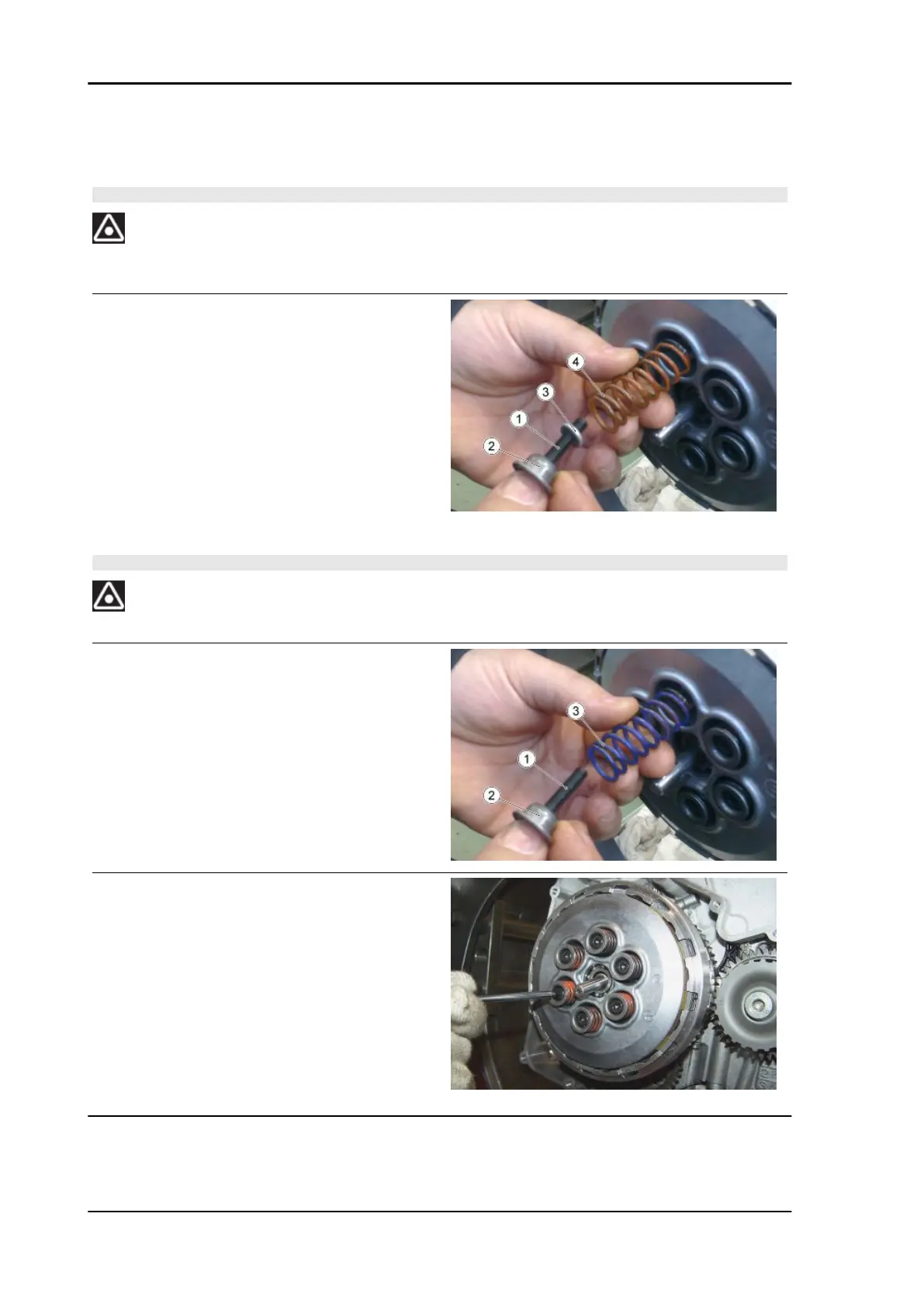

USE THE SAME SOLUTION FOR ALL THE STUD BOLTS.
ORANGE SPRING
CAUTION
PAY ATTENTION WHEN REFITTING, RESPECT THE SEQUENCE OF SCREW, CAP, LINING AND
SPRING.
•
Fit the clutch springs (4).
•
Insert the spring holder cap (2) and the
shimming washers (3) onto the screws
(1).
BLUE SPRING
CAUTION
PAY ATTENTION WHEN REFITTING, RESPECT THE SEQUENCE OF SCREW, CAP AND SPRING.
•
Fit the clutch springs (3).
•
Insert the spring holder cap (2) onto the
screws (1).
•
Tighten the six screws operating in
stages and diagonally.
Engine RSV4 Factory a-PRC
ENG - 302
