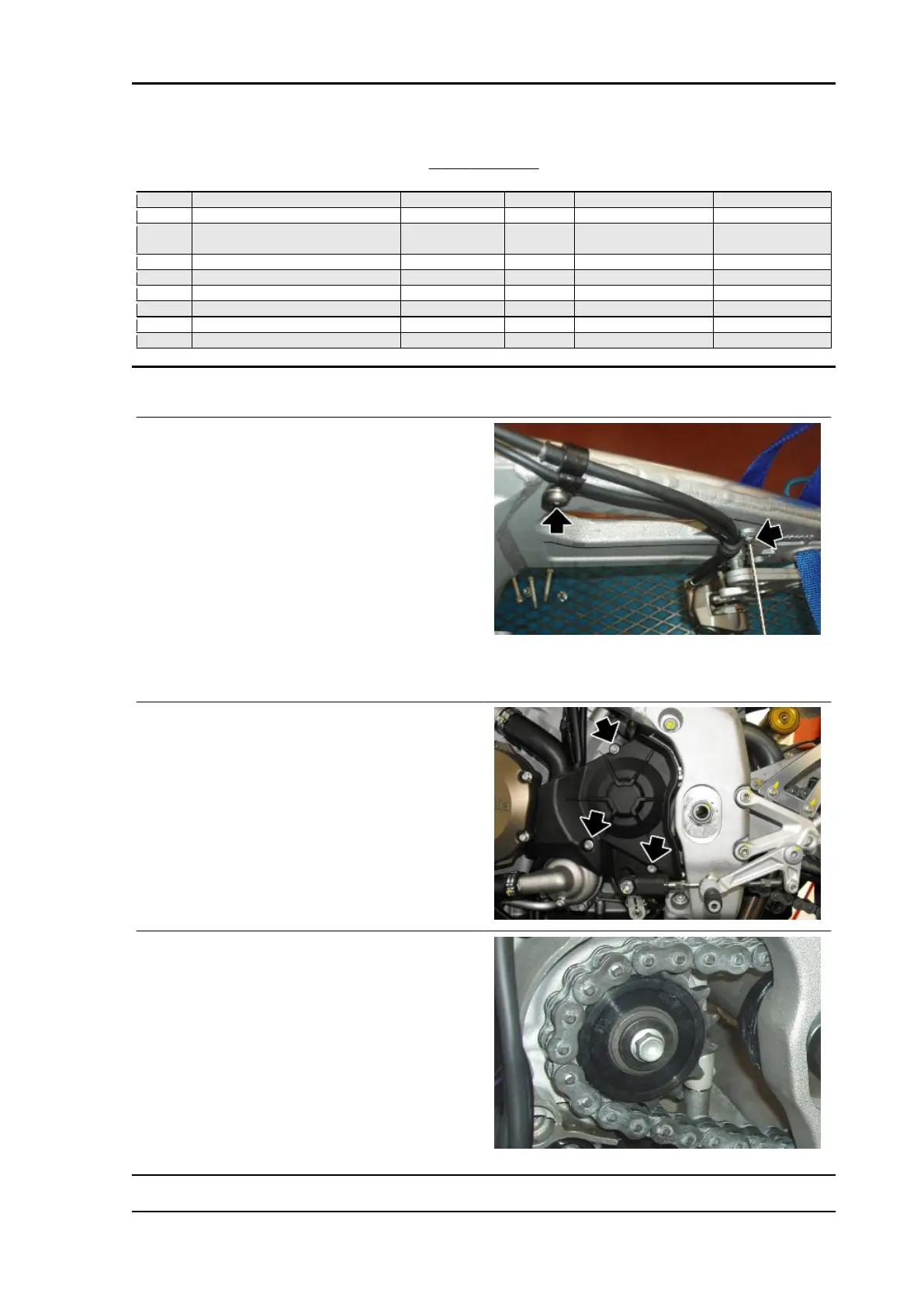

REAR SWINGARM
pos. Description Type Quantity Torque Notes
1 Swingarm adjuster screw bushing M30x1.5 1 12 Nm (8.85 lbf ft) -
2 Swingarm ring nut M30x1.5 1 60 Nm (44.25 lbf ft) -
3 Swingarm pin nut M20x1.5 1 65 Nm (47.94 lbf ft) AGIP GREASE
SM2
4 Chain casing fixing screws M5 2 4 Nm (2.95 lbf ft) -
5 Front chain guide fixing screw M5 1 4 Nm (2.95 lbf ft) -
6 Rear chain guide fixing nut M6 1 7 Nm (5.16 lbf ft) -
7 Chain skid fixing screws M5 2 2 Nm (1.47 lbf ft) -
- Lower chain slider fixing screws M6 2 10 Nm (7.37 lbf ft) -
- Chain guide fixing screw M6 1 8 Nm (5.90 lbf ft) -
Removing
•
Remove the exhaust system.
•
Remove the rear mudguard.
•
Remove the rear shock absorber.
•
Remove the rear wheel.
•
Secure the rear part of the vehicle with
a belt and a hoist.
•
Unscrew and remove the two pipe
grommet screws.
•
Remove the rear brake calliper off the
swingarm.
•
Unscrew and remove the three screws
and remove the pinion cover.
•
Unscrew and remove the screw and
retrieve the washer.
•
Slide off the pinion from the chain and
remove.
RSV4 Factory a-PRC Chassis
CHAS - 439
