APRILIA RSV4 Factory a-PRC 2009 User Manual

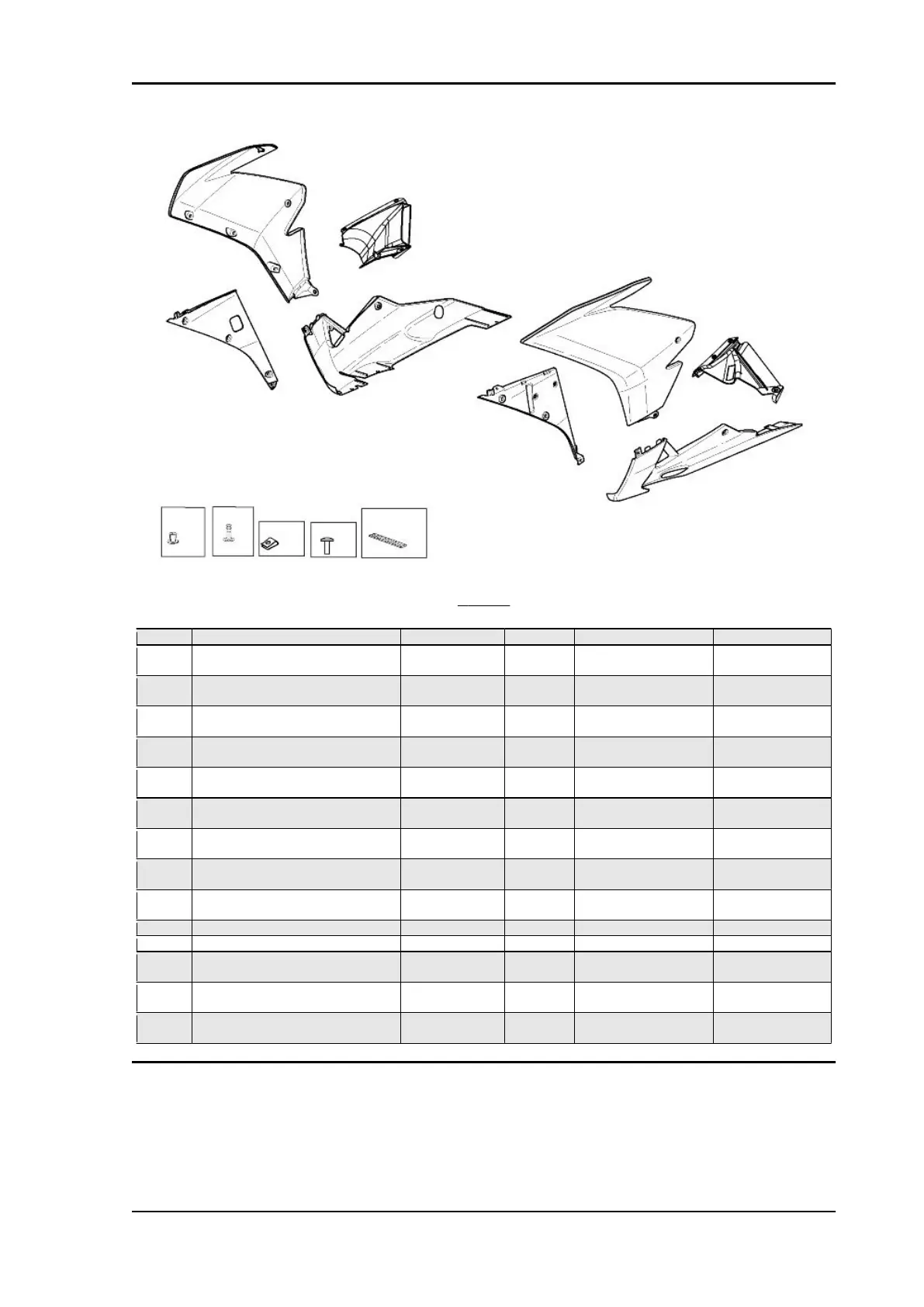

FAIRING
pos.
Description Type Quantity Torque Notes
- Centre screws fastening lower fairing M6 2 10 Nm (7.37 lb ft) -
- Right hand lower fairing mounting
bracket
M6 2 10 Nm (7.37 lb ft) -
- Left hand lower fairing mounting
bracket
M6 2 10 Nm (7.37 lb ft) -
- Screws fixing the side fairings to the
side spacers
M5 2 1.5 Nm (1.11 lb ft) -
- Screws fixing upper fairing fastener
to intake duct
M5 2 1.5 Nm (1.11 lb ft) -
- Screws fixing upper fairing fastener
to front fairing
M5 2 1.5 Nm (1.11 lb ft) -
- Screws fixing upper fairing fastener
to intake duct
self-tapping 2 1 Nm (0.74 lb ft) -
- Screws fixing upper fairing fastener
to headlamp
self-tapping 2 1 Nm (0.74 lb ft) -
- Screws fastening the lower fairing to
the bracket
M5 2 + 2 1 Nm (0.74 lb ft) -
- Screws fastening the lower fairing to
the lug
M5 2 2 Nm (1.47 lb ft) -
- Lower fairing lower fastening screws M5 2 2 Nm (1.47 lb ft) -
- Lower fork fastener fixing screws M6 2 8 Nm (5.90 lb ft) -
- Screws fixing lower front fairing fas-
tener to intake ducts
SWP 3.9 2 1 Nm (0.74 lb ft) -
- Inner screws fixing fairing to the low-
er front fairing fastener
M4 2 0.5 Nm (0.37 lb ft) -
- Inner screws fastening the fairing to
the lug
M5 2 2 Nm (1.47 lb ft) -
RSV4 Factory a-PRC Bodywork
BODYW - 491
