APRILIA RSV4 Factory a-PRC 2009 - Sez:Disassembling the clutch

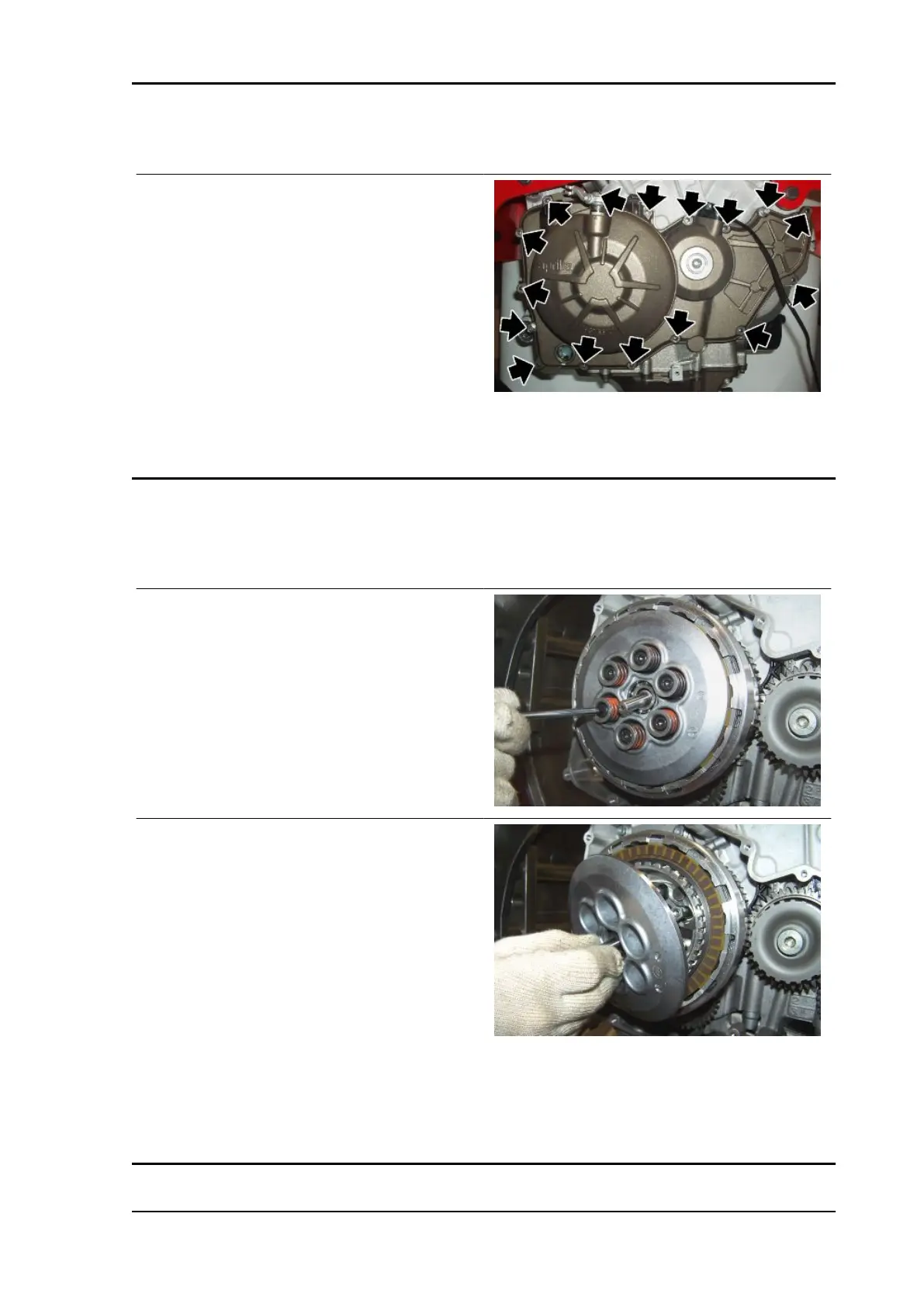

Removing the clutch cover
•
Drain the engine oil.
•
Unscrew and remove the sixteen peri-
metric fixing screws and retrieve the
washers
•
Remove the clutch casing, retrieving the gasket, the two locator pins and the starter motor
transmission gear.
Disassembling the clutch
•
Unscrew and remove the tone wheel fixing screw.
•
Remove the tone wheel.
•
Remove the clutch cover.
•
Unscrew and remove the six screws by
loosening them 1/4 of a turn at a time;
operate in stages and diagonally, and
retrieve the washers and the clutch
springs.
•
Remove the thrust plate and the com-
plete control rod.
•
Remove the discs.
See also
Removing the
clutch cover
RSV4 Factory a-PRC Engine
ENG - 291
