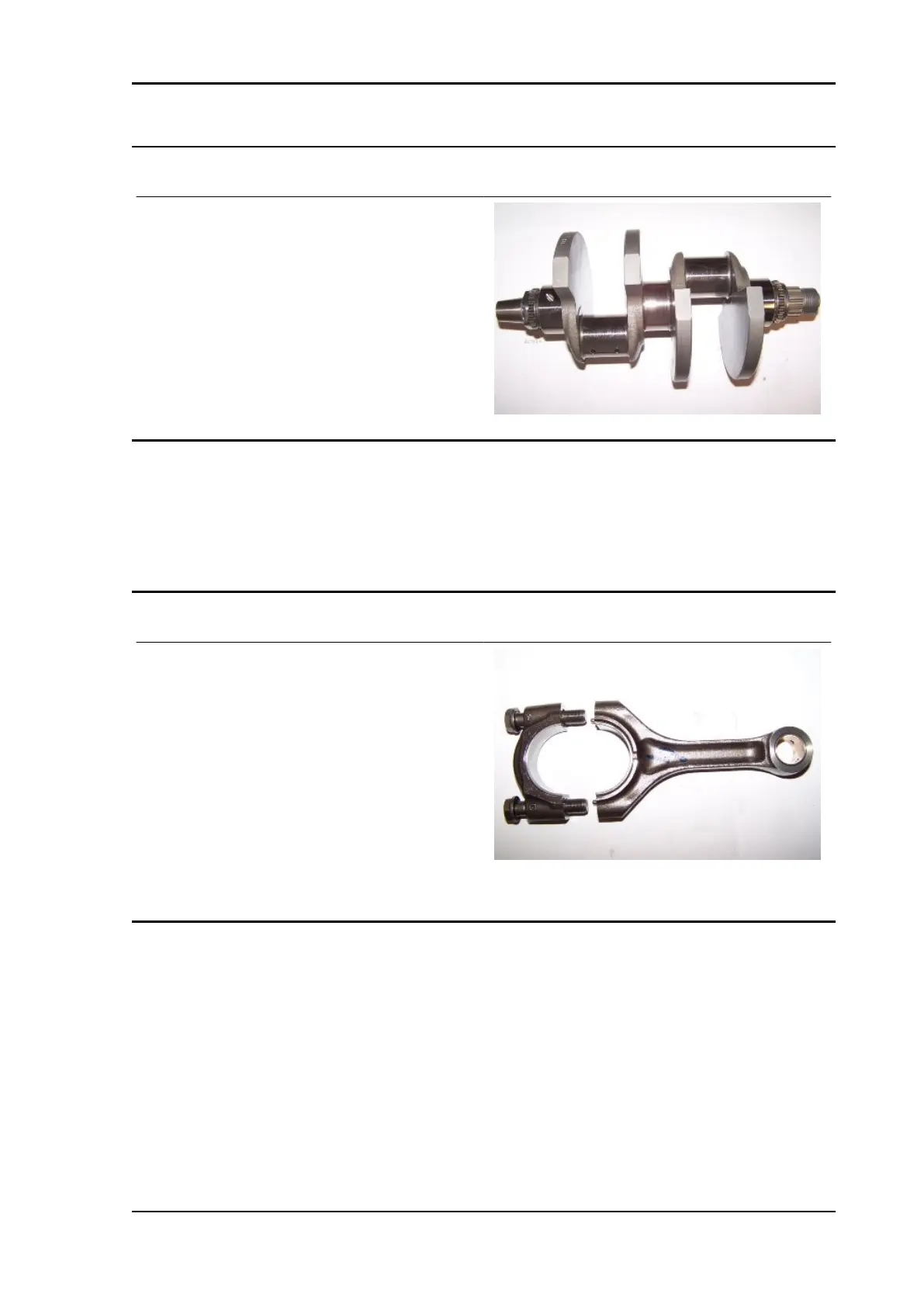

Crankshaft check
Characteristic
Maximum crankshaft axial clearance after
closing the crankcase
0.5 mm (0.0197 in)
Maximum radial clearance between the main
bearings and the crankshaft pins
0.05 mm (0.00197 in)
Balancing countershaft check
Characteristic
Maximum countershaft axial clearance after closing the crankcase
0.1 mm (0.0039 in)
Connecting rod check
Characteristic
Maximum wear limit of the rod small end
17.05 mm (0.671 in)
Maximum rod small end radial clearance
0.055 mm (0.0022 in)
Maximum axial clearance between the con-
necting rod and the crank pin
0.55 mm (0.022 in)
Maximum connection rod pin clearance
0.08 mm (0.0031 in)
Inspecting pistons
WITHOUT CLASS SELECTION
Characteristic
Minimum piston diameter
77.914 mm (3.067 in)
Maximum clearance between the cylinder and piston
0.1 mm (0.0039 in)
Maximum wear limit of the clearance between pin and pin hole on the piston
0.040 mm (0.0016 in)
RSV4 Factory a-PRC Engine
ENG - 361
