APRILIA RSV4 Factory a-PRC 2009 User Manual

•

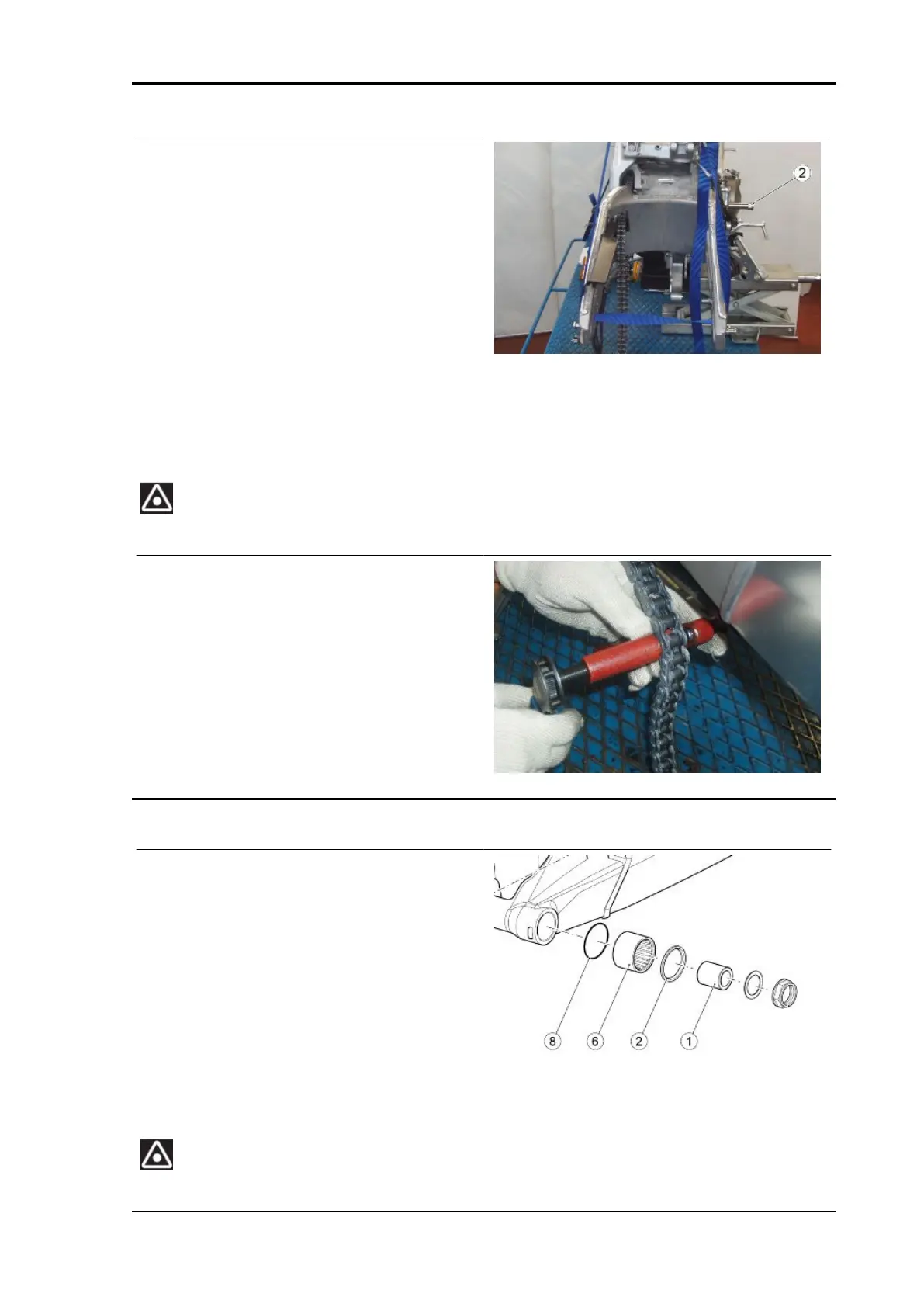

Place a mounting under the front part
of the swingarm.
•
Support the swingarm from the front.
•
Remove the swingarm pin (2) from the
right hand side.
•
Support the front part of the swingarm
and be ready to accompany it.
•
Using the rear mounting stand, remove
the swingarm completely from the ve-
hicle from the rear.
•
Remove the adjustment bushing from
the swingarm pin (2).
UPON REMOVING THE REAR SWINGARM PAY ATTEN-
TION NOT TO JAM THE GEARING CHAIN.
•
If necessary, use a specific tool to re-
move a pin from the drive chain.
•
Open and remove the chain.
Checking
•
Remove the swingarm.
•
Clean the two sides of the bearing
seats with a cloth.
•
Slide off the bushing (1).
•
Remove the sealing gasket (2).
•
Remove the sealing gasket (3).
•
Remove the circlip (4).
•
Use the specific special tool to extract
the two bearings (5) and the roller bear-
ing (6).
RSV4 Factory a-PRC Chassis
CHAS - 441
