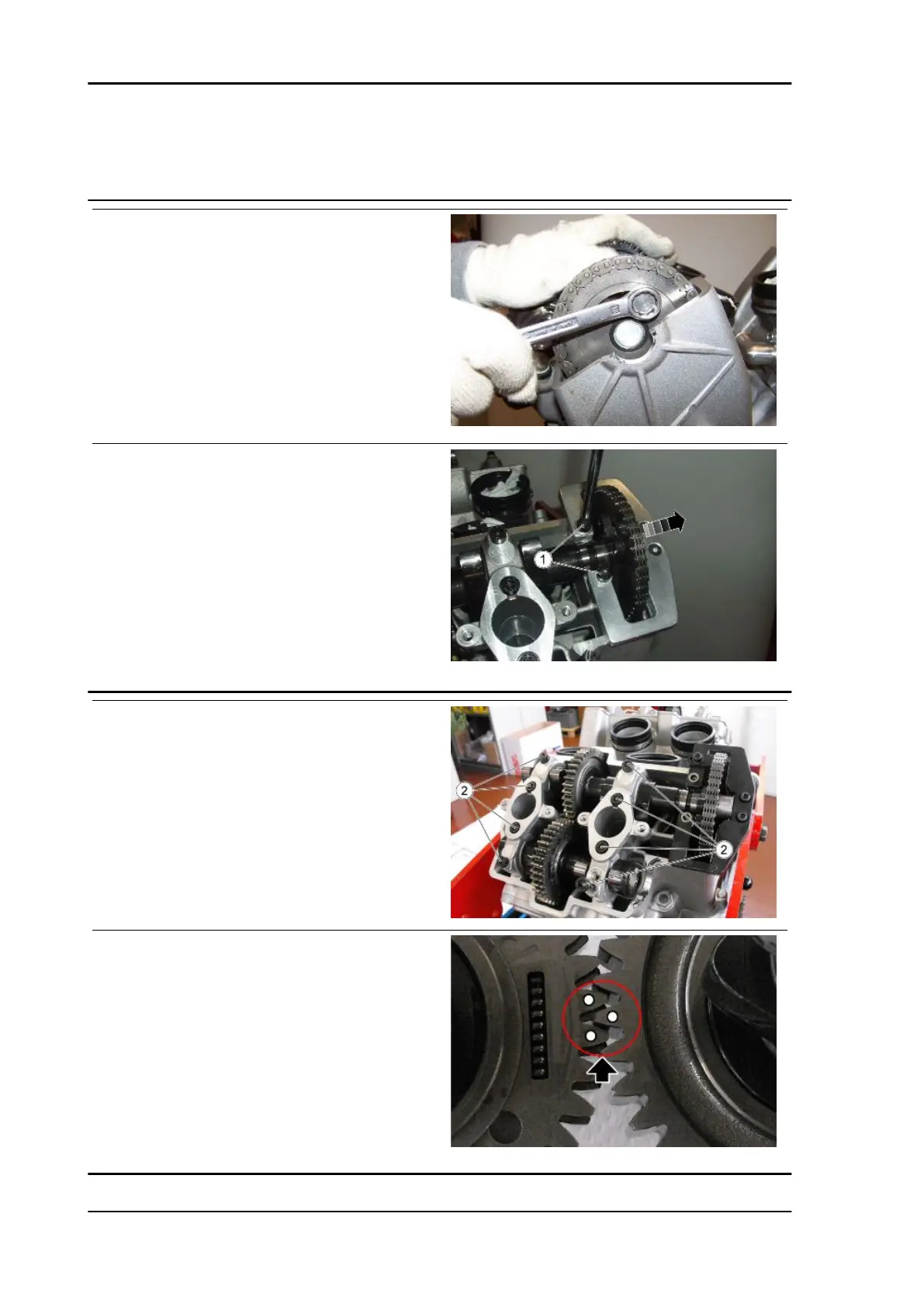

020851Y Camshaft timing pin
020852Y Crankshaft timing pin
•
Block crankshaft rotation using one of
the specific tools.
•
Unscrew and remove the second in-
take camshaft gear screw.
•
Leave the gear on the camshaft.
Specific tooling
020848Y Flywheel retainer
020850Y Primary gear lock
•
Install the specific camshaft gear sup-
port tool.
•
Fix it to the head using the two screws
(1).
•
Move the gear from the camshaft to the
tool.
Specific tooling
020865Y Support for camshaft gear on head
•
Unscrew and remove the eight screws
(2), proceeding in stages and diago-
nally.
•
Retrieve the washers from the screws
near the spark plug holes.
•
Remove the U bolts with the O rings
and locator pins.
•
Remove the intake and exhaust cam-
shafts.
If the two camshafts are timed correctly, the intake
camshaft gear tooth (indicated with one dot) is
meshed with the trough of the exhaust camshaft
gear (indicated with two dots).
Engine RSV4 Factory a-PRC
ENG - 328
