Steering bearing
STEERING
pos.

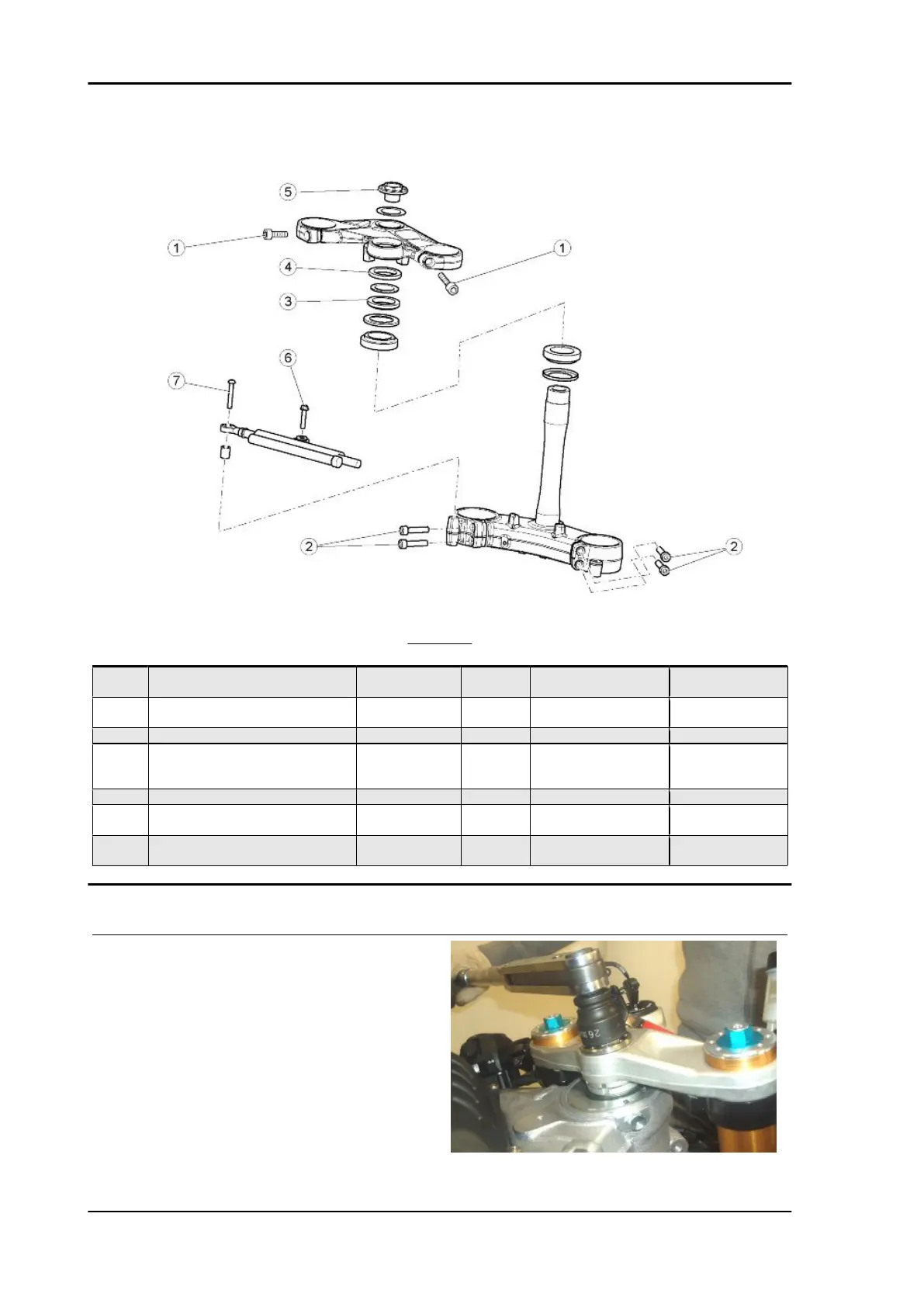

Description Type Quantity Torque Notes
1 Screws fastening upper yoke to stan-
chions
M8 2 25 Nm (18.44 lb ft) -
2 Screws fastening lower yoke to stan-
chions
M8 4 25 Nm (18.44 lb ft) -
3 Headstock lock ring M35x1 1 60 Nm (44.25 lbf ft) -
4 Headstock counter-lock ring M35x1 1 Manual +35° or -10° Bend the tabs into
the notches in the
lock ring
5 Upper yoke fixing cap - 1 100 Nm (73.76 lb ft) -
6 Screw fastening shock absorber to
frame
M6 1 10 Nm (7.37 lb ft) -
7 Screw fastening shock absorber to
lower yoke
M6 1 10 Nm (7.37 lb ft) -
Adjusting play
•
Unscrew and remove the top bolt on
the headstock and retrieve the washer.
