pos. Description Type Quantity Torque Notes
- Screws fastening the lower fairing to
the lug
M5 2 2 Nm (1.47 lb ft) -
- Lower fairing lower fastening screws M5 2 2 Nm (1.47 lb ft) -
- Lower fork fastener fixing screws M6 2 8 Nm (5.90 lb ft) -
- Screws fixing lower front fairing fas-
tener to intake ducts
SWP 3.9 2 1 Nm (0.74 lb ft) -
- Inner screws fixing fairing to the low-
er front fairing fastener
M4 2 0.5 Nm (0.37 lb ft) -
- Inner screws fastening the fairing to
the lug
M5 2 2 Nm (1.47 lb ft) -
Back side

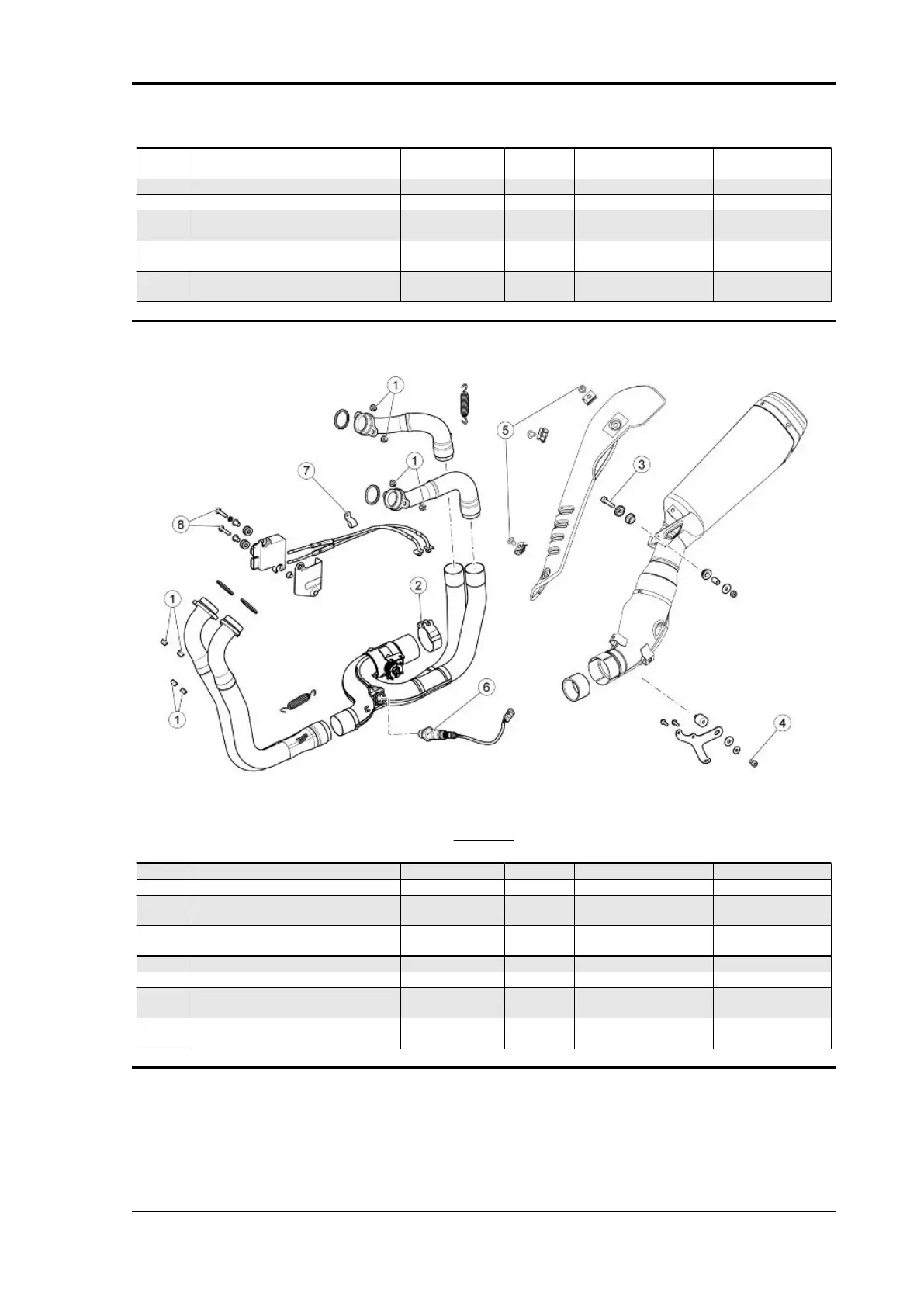

EXHAUST
pos.
Description Type Quantity Torque Notes
1 Exhaust manifold flange fixing nuts M7 8 13 Nm (9.59 lbf ft) -
2 Silencer clamp fixing screw M6 1 10 Nm (7.37 lbf ft) -
3 Screw fastening silencer to right
hand footpeg mounting
M8 1 25 Nm (18.44 lbf ft) -
4 Screw fastening silencer to central
lower fairing bracket
M8 1 20 Nm (14.75 lbf ft) -
5 Cosmetic silencer shield fixing screw M5 2 5 Nm (3.69 lbf ft) -
6 Oxygen sensor fastener M18x1.5 1 38 Nm (28.03 lbf ft) -
7 Fastener screw for cable grommet
for exhaust butterfly valve cables
M6 1 10 Nm (7.37 lbf ft) -
8 Exhaust butterfly valve actuator fix-
ing screws
M6 2 10 Nm (7.37 lbf ft) -
RSV4 Factory a-PRC Characteristics
CHAR - 33
