ENGINE
pos. Description Type Quantity Torques Notes
1 Pinion protector casing fixing screws M6 3 8 Nm (5.9 lb ft) -
2 Threaded spacer - 1 8 Nm (5.9 lb ft) -
3 TSPEI screw M6x35 1 10 Nm (7.38 lb ft) Loct.
4 Self-locking nut M8 1 25 Nm (18.44 lb ft) -
5 Gearbox linkage joint to gearbox lev-
er fastener
- 1 8 Nm (5.90 lb ft) Loct.
6 Gearbox linkage nut to quick shift
fastener
- 1 8 Nm (5.90 lb ft) -
7 TBEI screws M6x20 2 8 Nm (5.90 lb ft) -
•
Smear waterproof grease between the O-rings and the Quick Shift uniball.
NOTE
ONCE REASSEMBLY IS COMPLETED, CENTRE TO CENTRE DISTANCE BETWEEN UNIBALL
AND JOINT MUST BE APPROX. 180mm (7.09in).

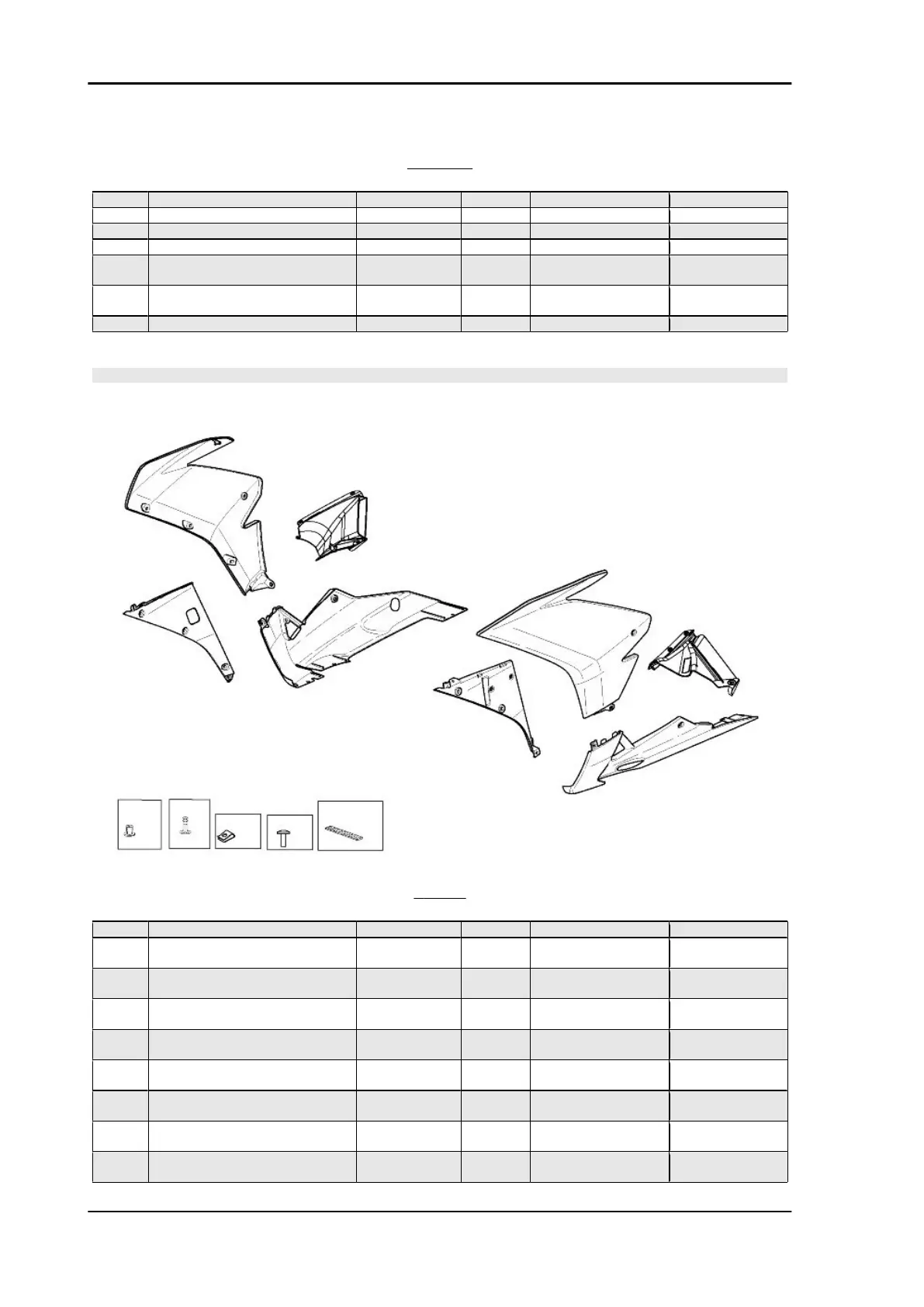

F
AIRING
pos.
Description Type Quantity Torque Notes
- Centre screws fastening lower fairing M6 2 10 Nm (7.37 lb ft) -
- Right hand lower fairing mounting
bracket
M6 2 10 Nm (7.37 lb ft) -
- Left hand lower fairing mounting
bracket
M6 2 10 Nm (7.37 lb ft) -
- Screws fixing the side fairings to the
side spacers
M5 2 1.5 Nm (1.11 lb ft) -
- Screws fixing upper fairing fastener
to intake duct
M5 2 1.5 Nm (1.11 lb ft) -
- Screws fixing upper fairing fastener
to front fairing
M5 2 1.5 Nm (1.11 lb ft) -
- Screws fixing upper fairing fastener
to intake duct
self-tapping 2 1 Nm (0.74 lb ft) -
- Screws fixing upper fairing fastener
to headlamp
self-tapping 2 1 Nm (0.74 lb ft) -
- Screws fastening the lower fairing to
the bracket
M5 2 + 2 1 Nm (0.74 lb ft) -
Characteristics RSV4 Factory a-PRC
CHAR - 32
