Check that the gaskets are in good conditions; replace them if they show signs of damage
or excessive wear.
ALWAYS REPLACE BOTH GASKETS.
ALWAYS REPLACE THE GASKETS WITH OTHERS OF THE SAME TYPE.
SWINGARM PIN
•

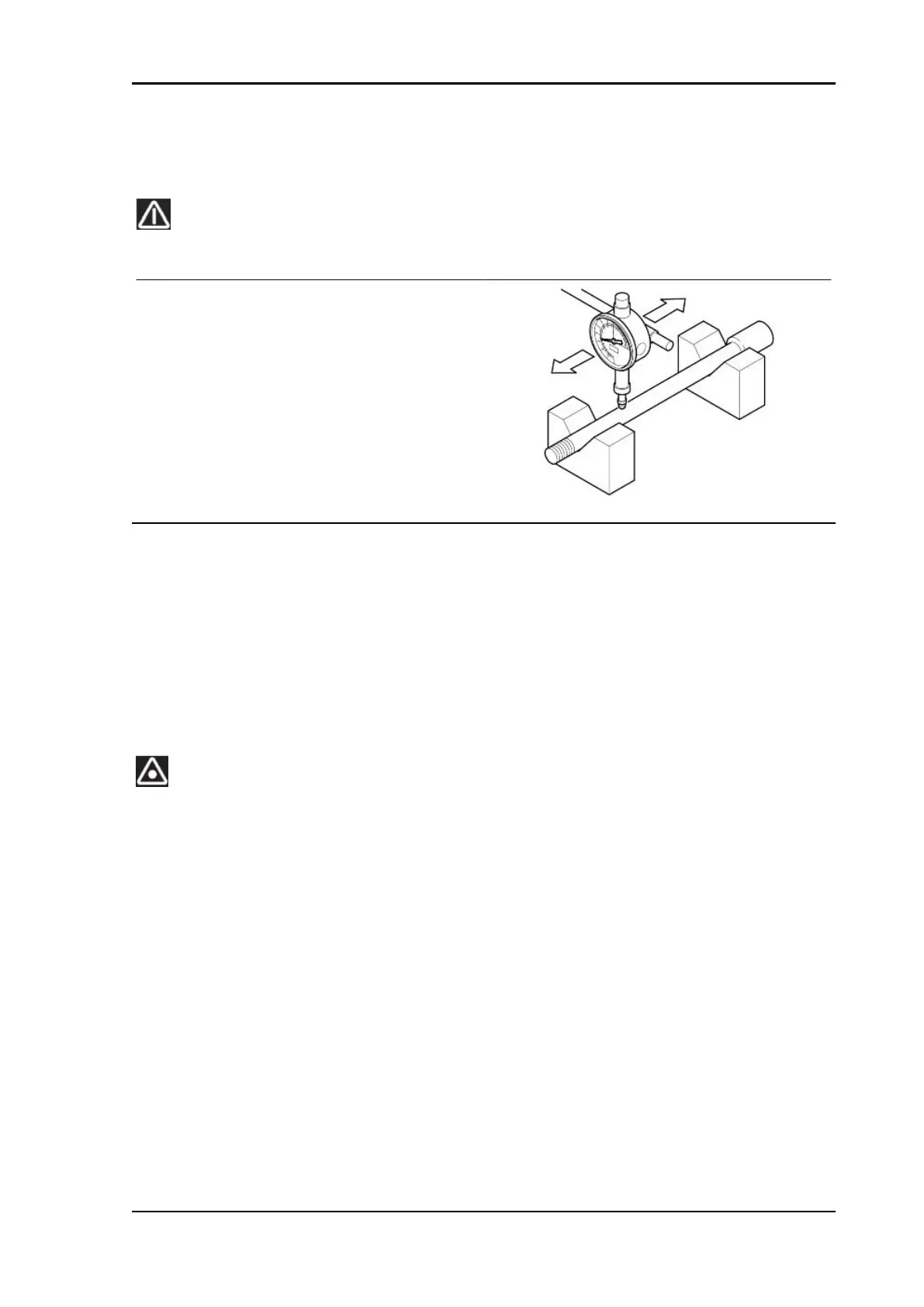

Use a dial gauge to check the swing-
arm pin eccentricity. If the eccentricity
exceeds the limit value, replace the
swingarm pin.
Maximum eccentricity: 0.3 mm (0.012 in)
Installing
The height of the swingarm pin relative to the chassis is adjusted with special inserts installed in the
respective seats in the chassis. The hole is offset by +2.5 mm (+0.098 in) relative to the centreline of
the insert, as a result the swingarm is in the high position.
There are four inserts, subdivided as follows:
•
Inner/outer
•
Right/left
THE TWO LEFT SIDE SWINGARM PIN INSERTS ARE THE SAME.
THE TWO RIGHT SIDE SWINGARM PIN INSERTS ARE DIFFERENT.
RSV4 Factory a-PRC Chassis
CHAS - 443
