Refit the swingarm height adjustment inserts if removed, bearing in mind that the arrow must
face upward.
WARNING
PAY PARTICULAR ATTENTION TO THE DIRECTION OF THE INSERTS WHEN REFITTING. IN-
CORRECT ASSEMBLY MAY CAUSE SEVERE DAMAGE TO THE VEHICLE. THE ARROW MUST
FACE UPWARD.
•
Spread a thin layer of lubricating
grease all along the swingarm pin.
•

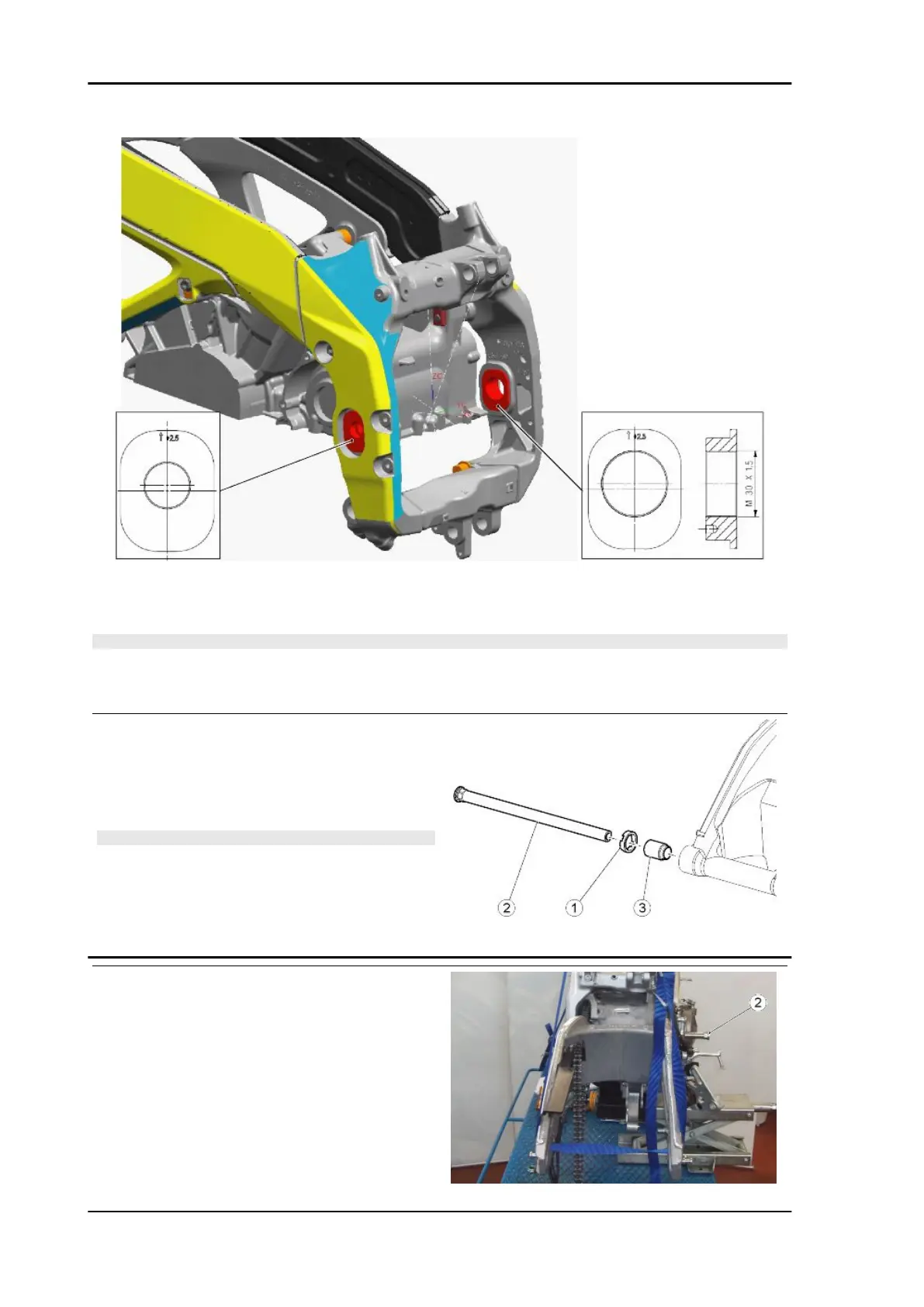

Fit the adjustment bushing (3) to its
seat and tighten it manually.
CAUTION
THE ADJUSTMENT BUSHING (3) MUST NOT PROTRUDE
BEYOND THE CHASSIS INTERNAL EDGE.
•
Place a wooden support under the
front of the swingarm to prevent it from
dropping and hold in position.
•
Support the swingarm from the front;
move it into position so that the holes
are aligned and simultaneously insert
the pin (2) fully.
Chassis RSV4 Factory a-PRC
CHAS - 444
