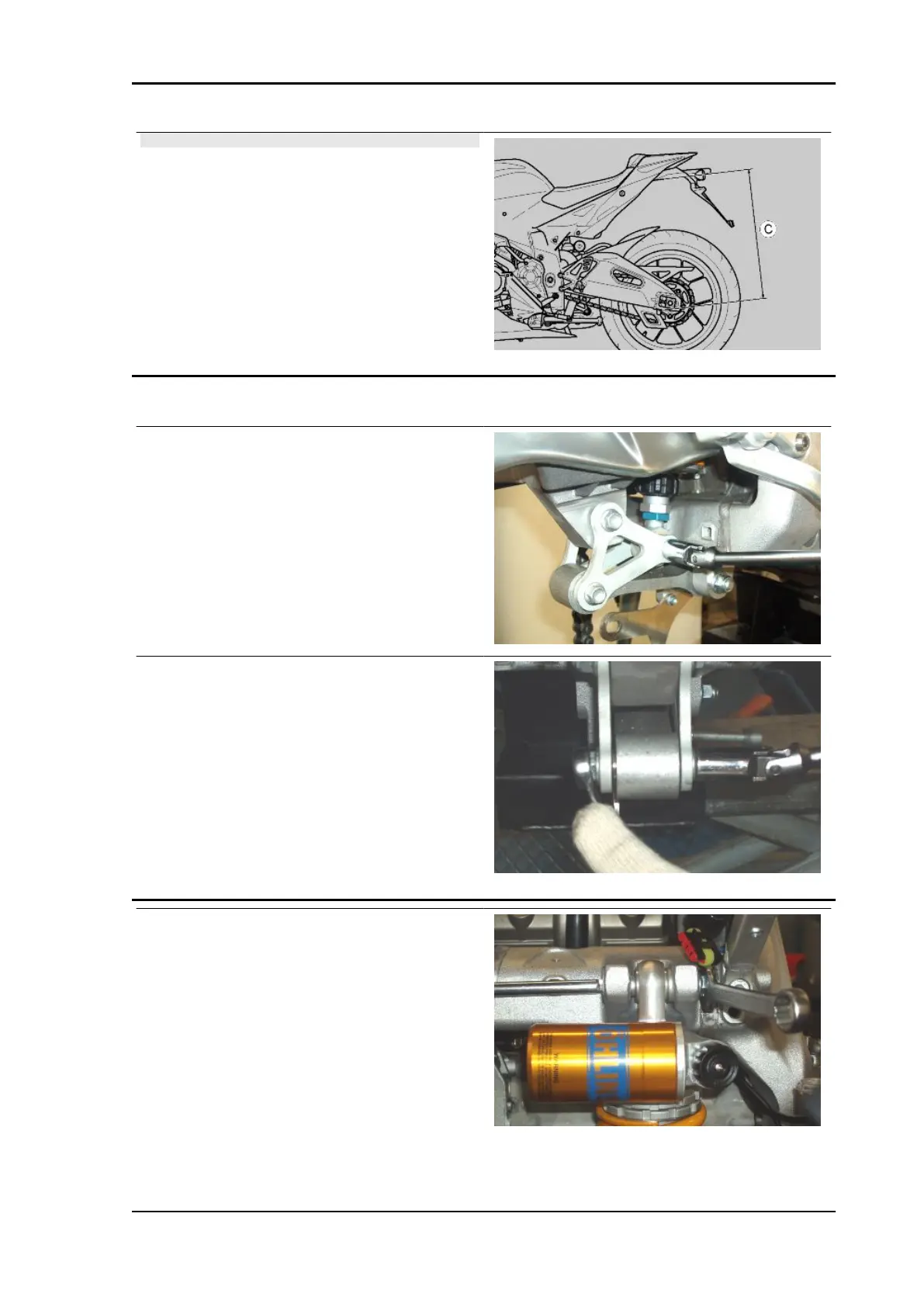

NOTE
TO CHECK FOR REAR FAILURE, MEASURE THE DIFFER-
ENCE BETWEEN THE FOLLOWING TWO FIXED POINTS:
•
CENTRE OF THE FRONT SCREW FASTEN-
ING THE LICENSE PLATE HOLDER TO UN-
DERTAIL SECTION AND
•
UPPER CORNER OF THE SCREW FASTEN-
ING THE REAR STAND PIN ON THE SWING-
ARM
Removing
•
Secure the vehicle using a belt and
hoist.
•
Remove the silencer and the right hand
rider footpeg.
•
Unscrew and remove the lower screw
and retrieve the nut.
•
Unscrew and remove the screw fixing
the dual linkage rod to the single link-
age.
•
Retrieve the nut.
•
Unscrew and remove the upper screw
and retrieve the nut.
•
Remove the shock absorber from the
right side.
RSV4 Factory a-PRC Suspensions
SUSP - 433
