124. Lower injector 3 cable harness connector
(output "17") - green connector
125. Coil 3 - long cable harness
126. Coil 1 - short cable harness

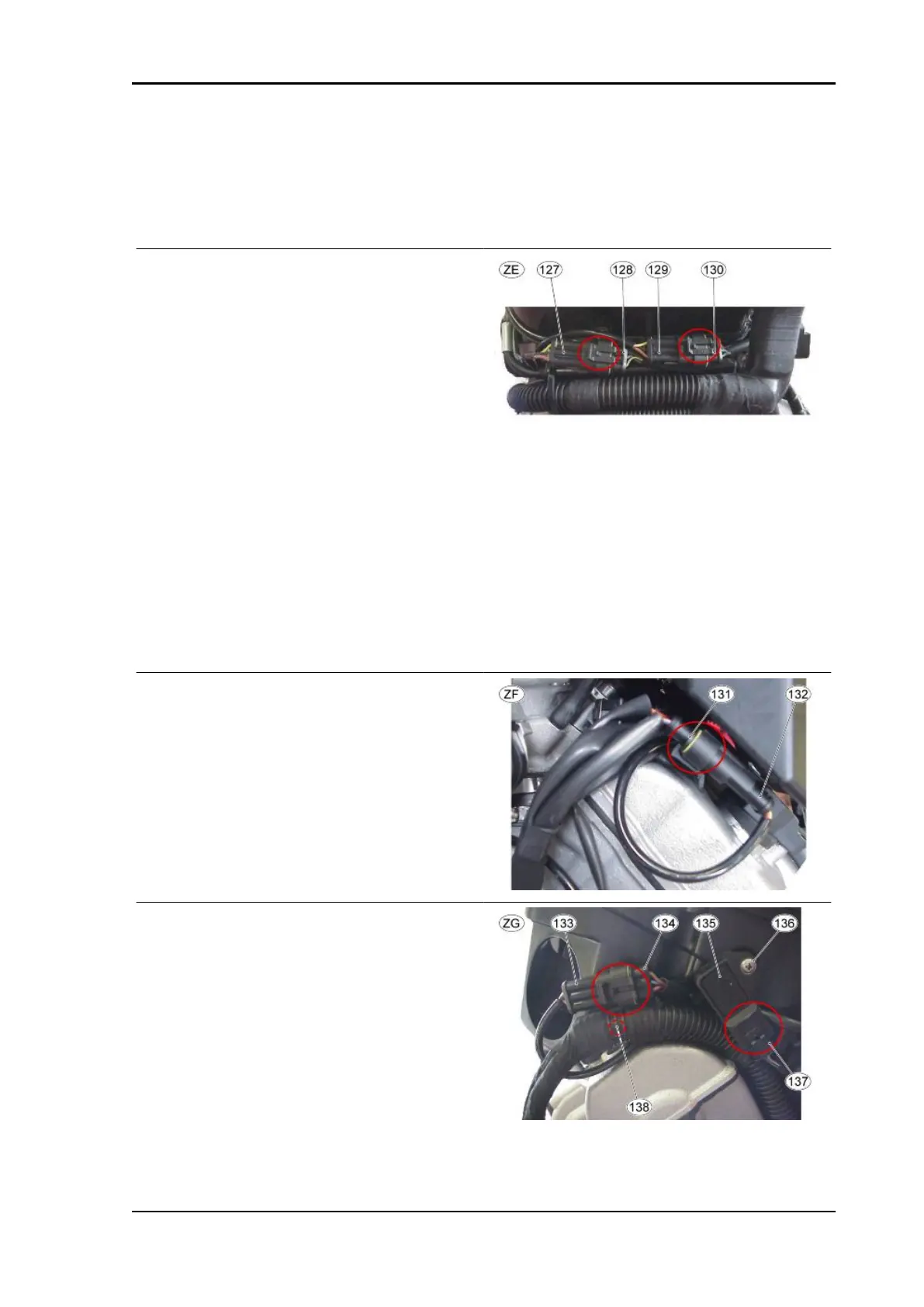

TABLE ZE - COIL AND MAP SENSOR CON-
NECTION
Once the filter box is assembled, the coil and map
sensor connections must be made. The connec-
tors for the 4 coils (AMP Superseal male plug
housing) must be placed on the mountings that
were previously fit on the filter box: to do this, insert
the slide positioned under the connector in the
plastic tooth of the mounting.
Passage of coil 3 and coil 1 cables between the
Fuel Rail and the filter box
127. Coil 1 connector
128. Coil 1 cable harness connector (output "29")
129. Coil 3 connector
130. Coil 3 cable harness connector (output "28")
TABLE ZF
131. Coil 4 cable harness connector (output "8")
132. Coil 4 connector
TABLE ZG
133. Coil 2 connector
134. Coil 2 cable harness connector (output "7")
135. Map sensor 2
136. Self-tapping 5x20 screw
137. Map sensor 2 cable harness connector (out-
put "11")
138. Insert the tape clamp on the cable harness in
the free hole on the filter box
RSV4 Factory a-PRC Electrical system
ELE SYS - 127
To Next Page
