154. Air temperature sensor
155. Upper injector 1 cable harness connector (output "23") - black connector
156. Self-tapping screw

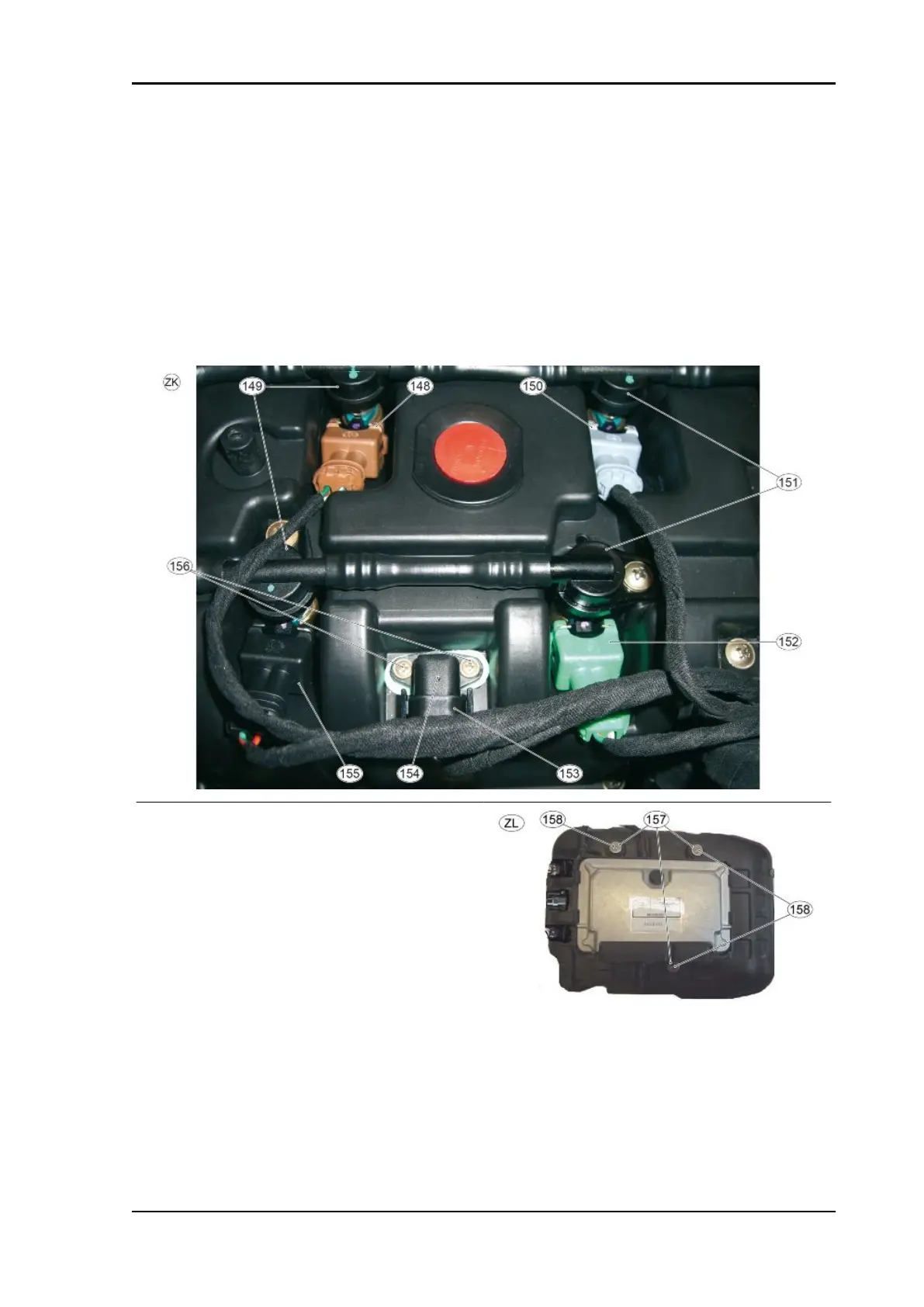

Connect the upper injectors as shown in the figure and according to the following sequence:
Injector 1 (output "23"): BLACK connector
Injector 2 (output "20"): BROWN connector
Injector 3 (output "22"): GREEN connector
Injector 4 (output "21"): GREY connector
TABLE ZL - 7SM CONTROL UNIT FITTING AND
CONNECTION
After connecting the upper injector connections
and the air temperature sensor connector, the
7SM control unit can be fastened, which was pre-
viously fastened to its relative mounting.
157 Washer
158. Self-tapping screw
RSV4 Factory a-PRC Electrical system
ELE SYS - 129
