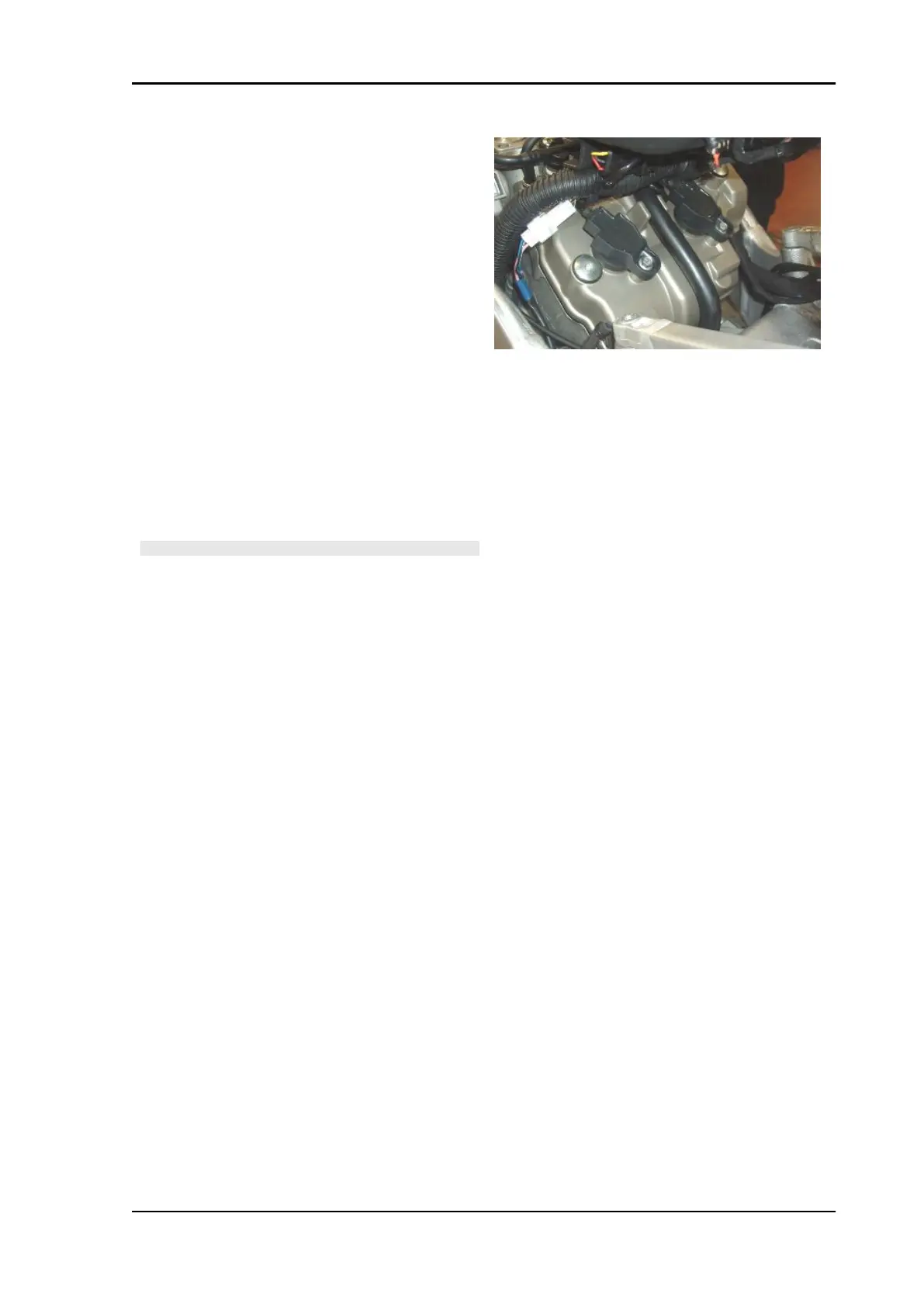

strap on engine cable harness); coil 4
with short cable: on the right of the front
side of the filter box.
Electrical specifications:
0.7 - 0.9 Ω at ambient temperature
Pin out:
1. Power supply + Vbatt
2. Secondary circuit to ground
3. Activation from control unit
DIAGNOSTICS INSTRUMENT: PARAMETERS
Example value with key ON: Current ignition ad-
vance
Example value with engine on: Indicates the cyl-
inder advance where combustion will take place.
CAUTION
BEFORE CARRYING OUT ANY TROUBLESHOOTING,
CAREFULLY READ THE GENERAL TROUBLESHOOTING
CONCEPTS FOR ELECTRICAL DEVICES AT THE BEGIN-
NING OF THE CHECK AND CONTROL SECTION IN THE
ELECTRICAL SYSTEM CHAPTER.
DIAGNOSTICS INSTRUMENT: ACTIVATION
Coil 1:
The injection relay (No. 33 in the wiring diagram, placed under the saddle, next to the battery positive
CHECK, however, the identification of the relay with the colour of the cables) is energised for 5 seconds
and the brown/yellow cable of the coil is closed to ground for 2 ms per second. Disconnect the 4-way
connector of the fuel pump to be able to hear the relay and injector activation. The continuity of the
wiring is necessary for correct activation: no error indications are displayed in case of lack of activation.
Coil 2:
The injection relay (No. 33 in the wiring diagram, placed under the saddle, next to the battery positive
CHECK, however, the identification of the relay with the colour of the cables) is energised for 5 seconds
and the brown/red cable of the coil is closed to ground for 2 ms per second. Disconnect the 4-way
connector of the fuel pump to be able to hear the relay and injector activation. The continuity of the
wiring is necessary for correct activation: no error indications are displayed in case of lack of activation.
Coil 3:
The injection relay (No. 33 in the wiring diagram, placed under the saddle, next to the battery positive
CHECK, however, the identification of the relay with the colour of the cables) is energised for 5 seconds
and the brown/green cable of the coil is closed to ground for 2 ms per second. Disconnect the 4-way
connector of the fuel pump to be able to hear the relay and injector activation. The continuity of the
wiring is necessary for correct activation: no error indications are displayed in case of lack of activation.
Coil 4:
RSV4 Factory a-PRC Electrical system
ELE SYS - 199
