Input for rear throttle potentiometer 1 signal PIN 48
Front cylinder intake pressure sensor input PIN 49
Input for rear throttle potentiometer 2 signal PIN 50
Direct power supply to control unit PIN 52

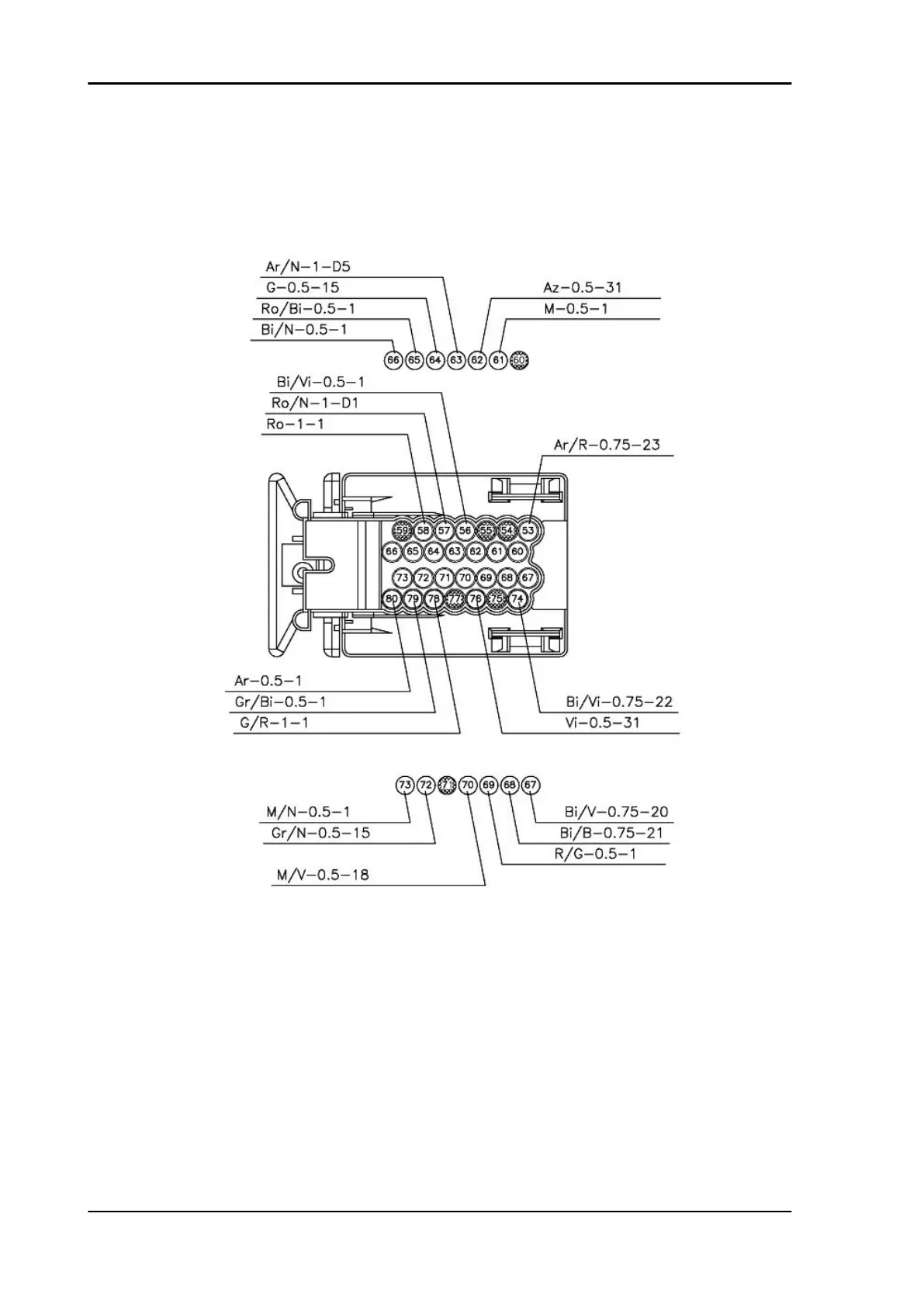

Vehicle pinout key:
Upper cylinder 1 injector control output PIN 53
Clutch sensor input PIN 56
Analogue ground connection 2 PIN 57
"Start engine" switch input PIN 58
Electric fan relay control output PIN 61
Variable geometry control unit control output PIN 62
Reference voltage output + 5V: tracks B-D and front throttle PIN 63
Neutral input PIN 64
Fall sensor input PIN 65
Electrical system RSV4 Factory a-PRC
ELE SYS - 238
