SADDLE

pos. Description Type Quantity Torque Notes

1 Rider saddle fixing screw M5 2 6 Nm (4.42 lbf ft) -

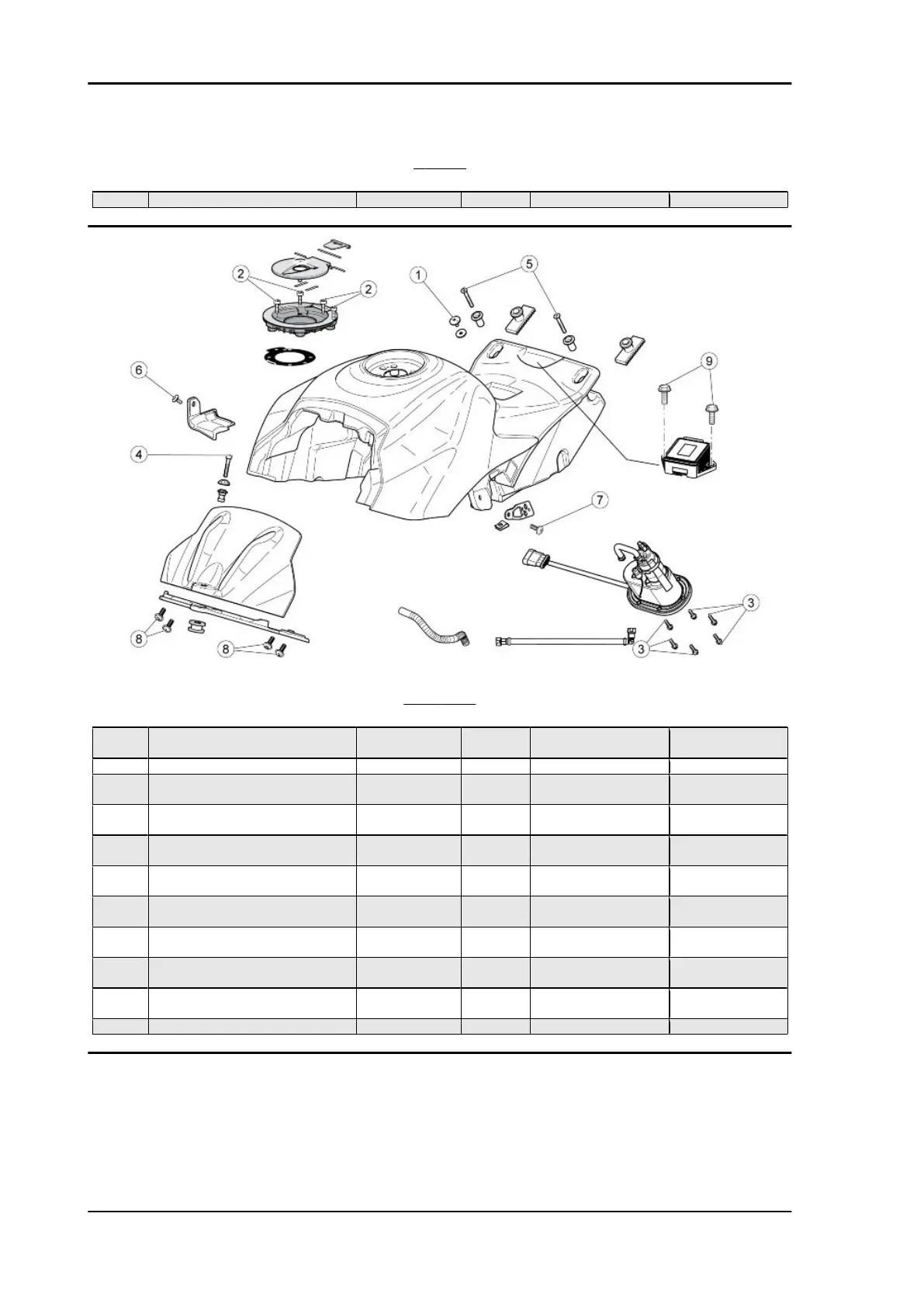

FUEL TANK

pos.

Description Type Quantity Torque Notes

1 Special screw fastening rider saddle

to the tank

M6 1 4 Nm (2.95 lbf ft) -

2 Screws fixing the filler to the tank M5 4 4 Nm (2.95 lbf ft) -

3 Screws fixing the fuel pump flange to

the tank

M5 8 3 Nm (2.21 lbf ft) -

4 Front screws fastening the tank to

the chassis

M6 1 8 Nm (5.9 lbf ft) -

5 Rear screws fastening the tank to the

rear chassis

M6 2 7 Nm (5.16 lbf ft) -

6 Screws fastening plastic fuel pipe

mounting

M5 1 2.5 Nm (1.84 lbf ft) -

7 Left fairing mounting bracket fixing

screws

M5 1 3 Nm (2.21 lbf ft) -

8 Screws fastening structural tank

mounting to tank

M6 4 3 Nm (2.21 lbf ft) -

9 Flanged TBEI screw fixing the sen-

sor box

M6x16 stainless

steel

2 6 Nm (4.42 lbf ft) -

- Central screw fastening the cover to

the tank

M4 1 0.5 Nm (0.37 lbf ft) -

- Fuel tank breather pipe unions M7 2 3 Nm (2.21 lbf ft) -

Characteristics RSV4 Factory a-PRC

CHAR - 26
