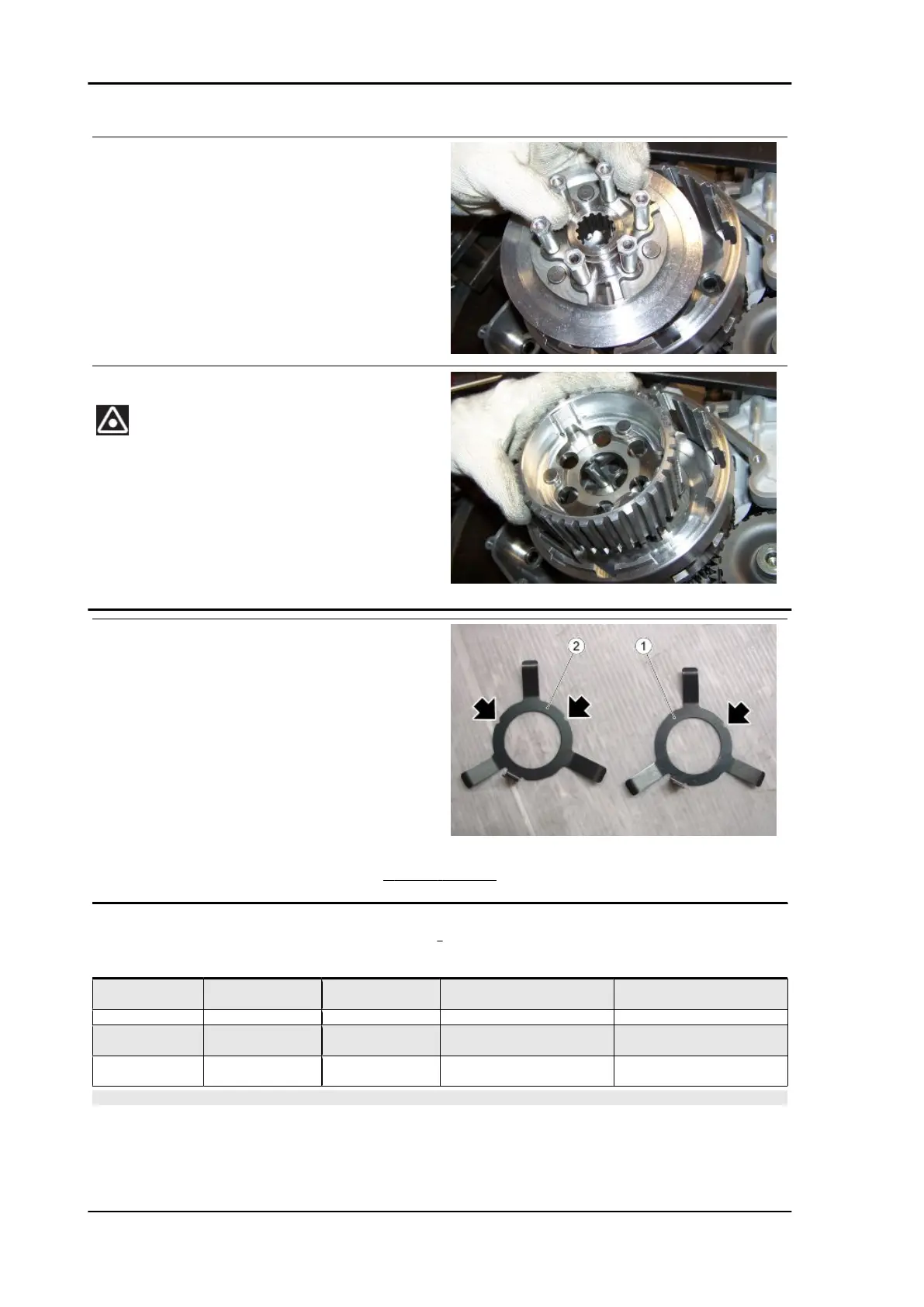

Install the clutch hub cam tower.
•
Position the clutch hub.
HOUSE THE THREE CLUTCH HUB CAMS IN THE SPECIFIC
CLUTCH HUB CAM TOWER INCLINES.
•
The slipper springs are distinguishable
by the cleats. In the 0.8mm spring (1)
there is only one notch, while in the
0.9mm spring (2) there are two notch-
es.
SLIPPER SPRINGS
First assembly solution
Specific assistance
-
Model - Engine
No.
Spring No. -
Thickness
Washer -
Thickness
Spring No. - Thickness Washer - Thickness
My2009/2010 - All
engines
3 - 0.8 mm NO 3 - 0.8 mm NO
Alternatively Alternatively
My2011 - up to No.
3637
3 - 0.8 mm NO 2 - 0.9 mm YES - 0.9 mm
My2011 - from No.
3638
2 - 0.9 mm YES - 0.9 mm 2 - 0.9 mm YES - 0.9 mm
CAUTION
ONCE THE SPRINGS HAVE BEEN RECEIVED BY THE SPARE PARTS, VERIFY THE THICKNESS
TO CHOOSE THE RIGHT COMBINATION AS IN THE TABLE
Engine RSV4 Factory a-PRC
ENG - 298
