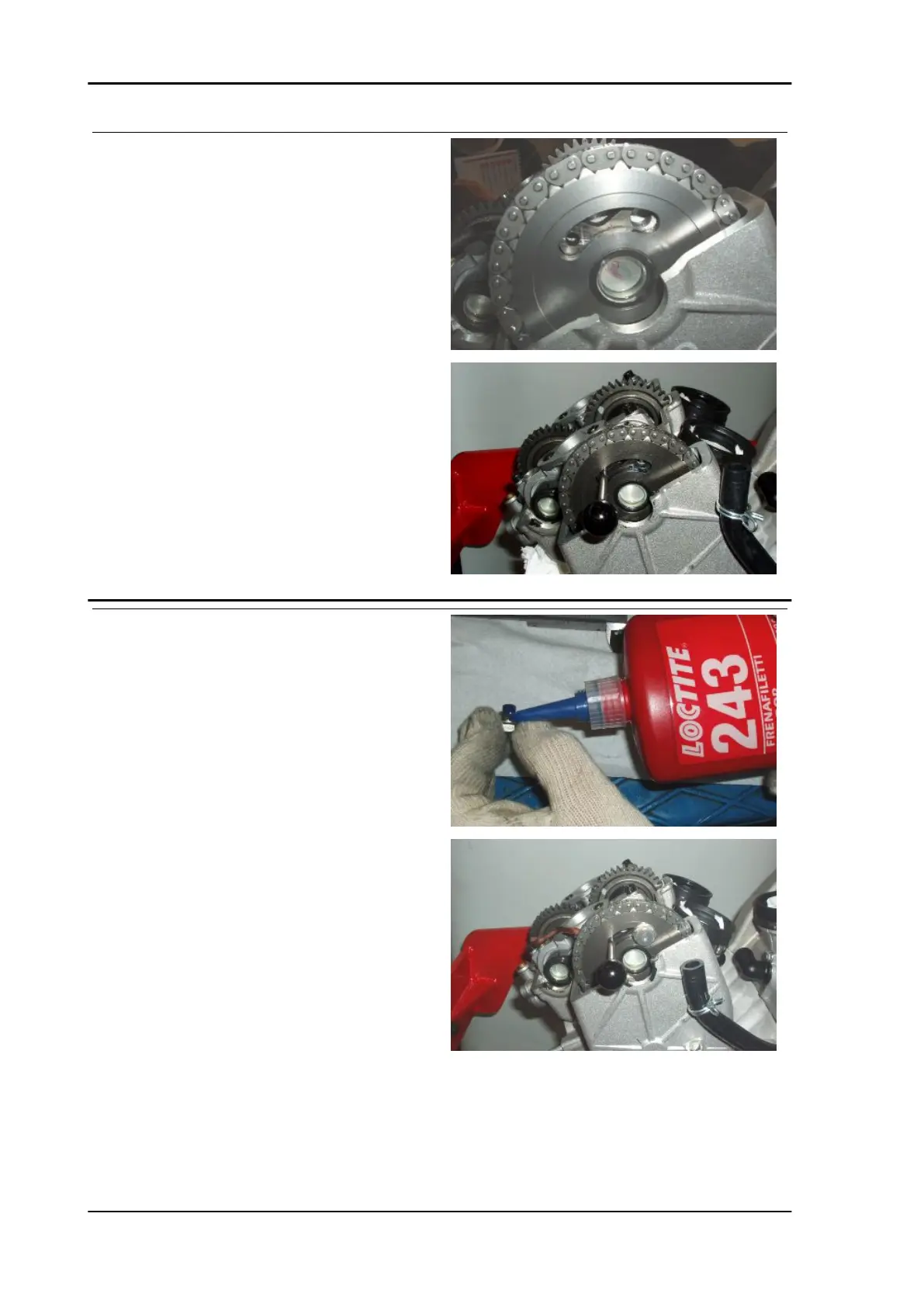

Cut the clamp that binds the chain to
the gear.
•
Position the gear on the camshaft so
that the timing hole and the gear fixing
screw hole are centred with the gear
slot.
•
Insert the specific timing pin.
Specific tooling
020851Y Camshaft timing pin
•
Apply Loctite 243 thread lock on the
thread of the timing gear fastener
screw. This screw must be replaced at
each reassembly.
•
Apply and loosely tighten the gear fix-
ing screw on the camshaft.
•
Protect the edge of the head with rubber.
•
Load the chain tensioner with special tool.
Specific tooling
020855Y Lever for engaging the chain tensioner
Engine RSV4 Factory a-PRC
ENG - 324
