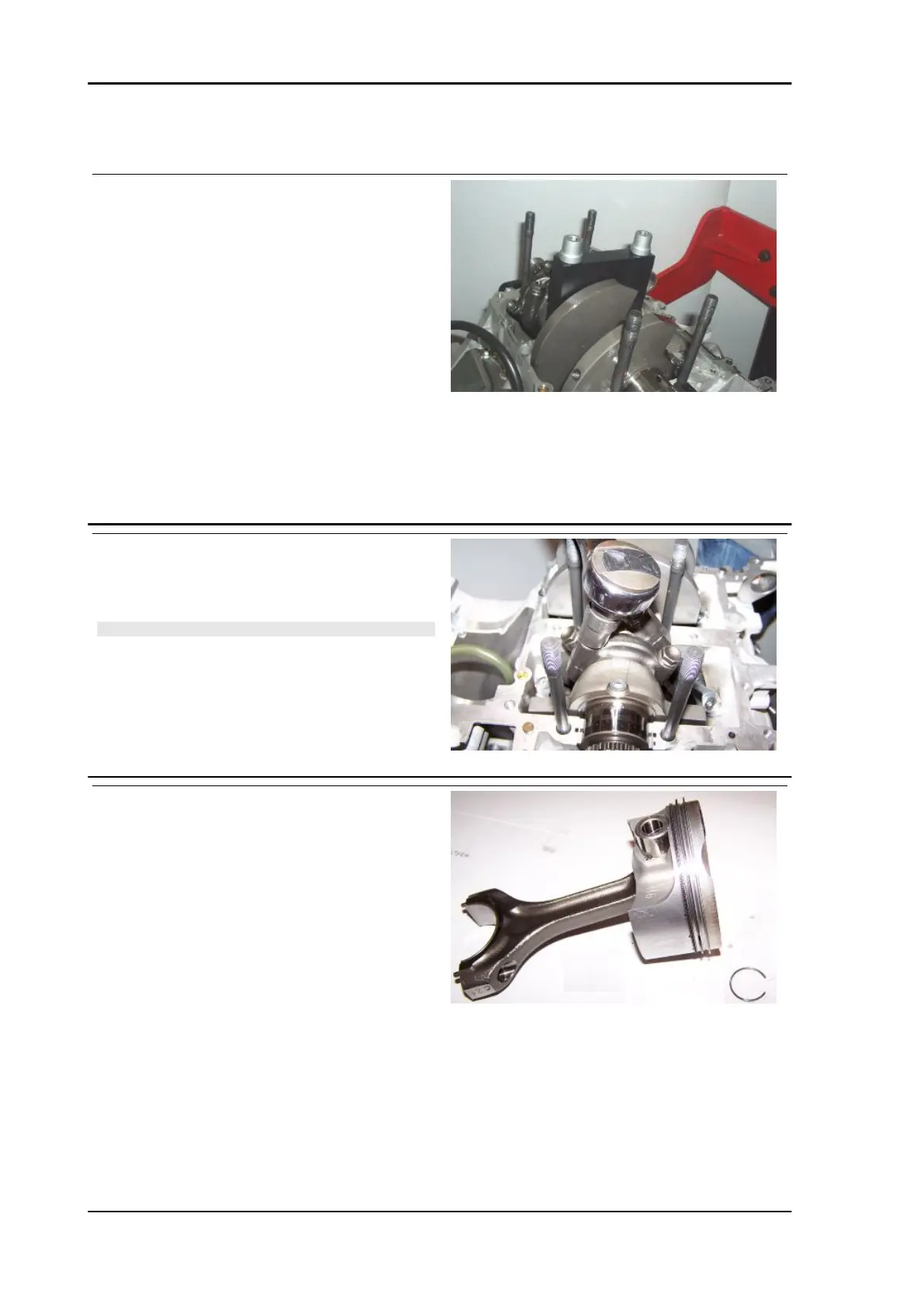

Removing connecting rods - pistons
•
Remove both heads.
•
Open the crankcases.
•
Install the tool that keeps the crank-
shaft in position.
Specific tooling
020857Y Crankshaft bearing U bolt
See also
Front head removal
Rear head removal
•
Unscrew and remove the two connect-
ing rod screws.
•
Remove the connecting rod cap.
NOTE
MARK THE COMPONENTS TO PREVENT INCORRECT RE-
FITTING.
•
Remove the piston connected to the
connecting rod from the cylinder side.
•
Extract the snap ring, slide off the pin
Engine RSV4 Factory a-PRC
ENG - 358
