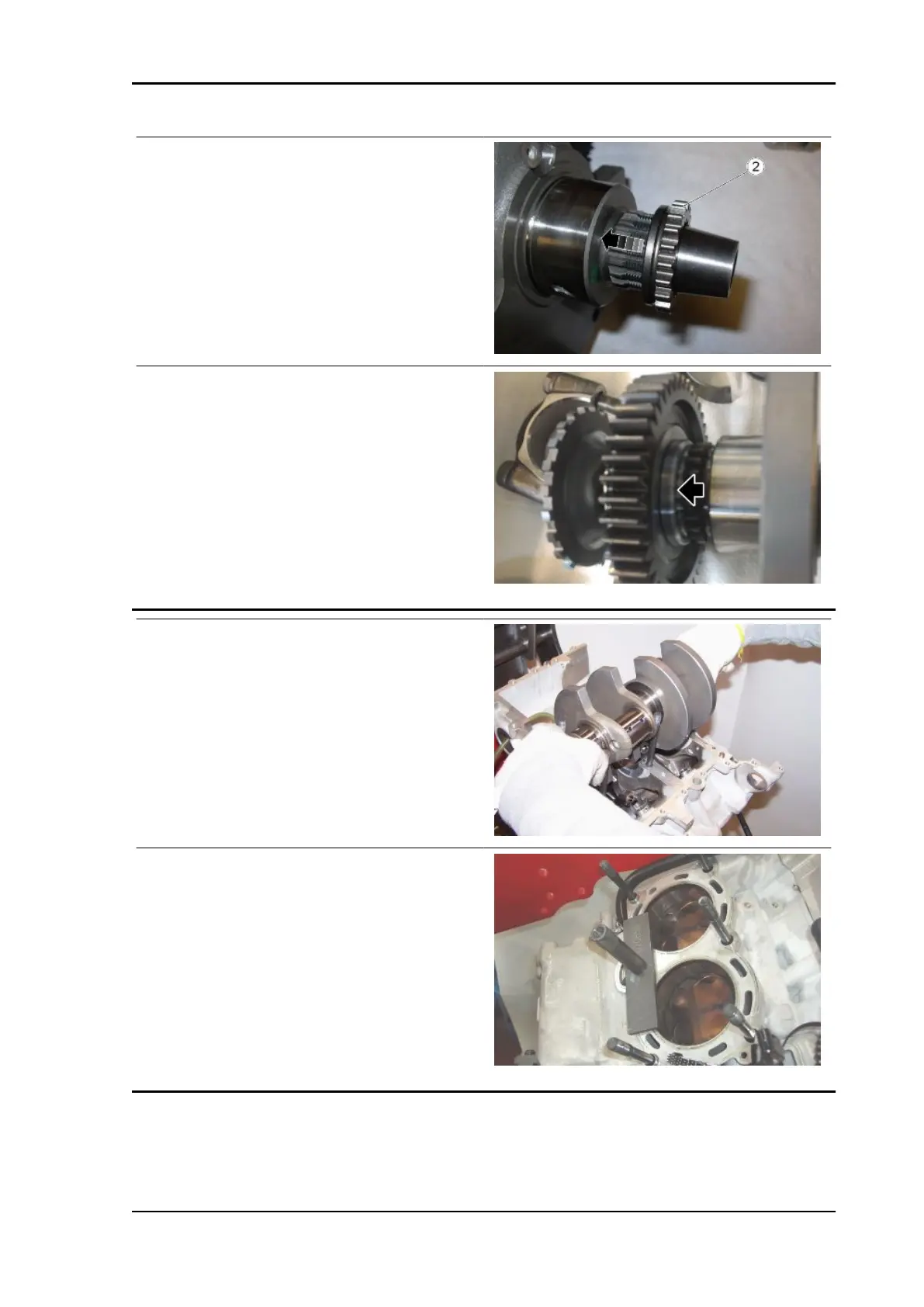

Position the sprocket (2) with the smooth side fac-
ing the inside of the crankshaft.
Move the sprocket (2) up against the crankshaft
shoulder.
OPTION 2
Crankshaft with non removable gear.
When refitting the primary gear, remember to first
place the lining as shown in the figure. The greater
diameter side is facing outwards the engine.
•
Lubricate the crankshaft pins and in-
sert them into their positions.
•
Install the connecting rod shank piston
assembly in the relative cylinders.
•
Join the crankcases.
•
If the special tool was used, remove it
to keep the pistons from coming out.
Specific tooling
020858Y Device for holding the pistons in the
cylinders
RSV4 Factory a-PRC Engine
ENG - 371
