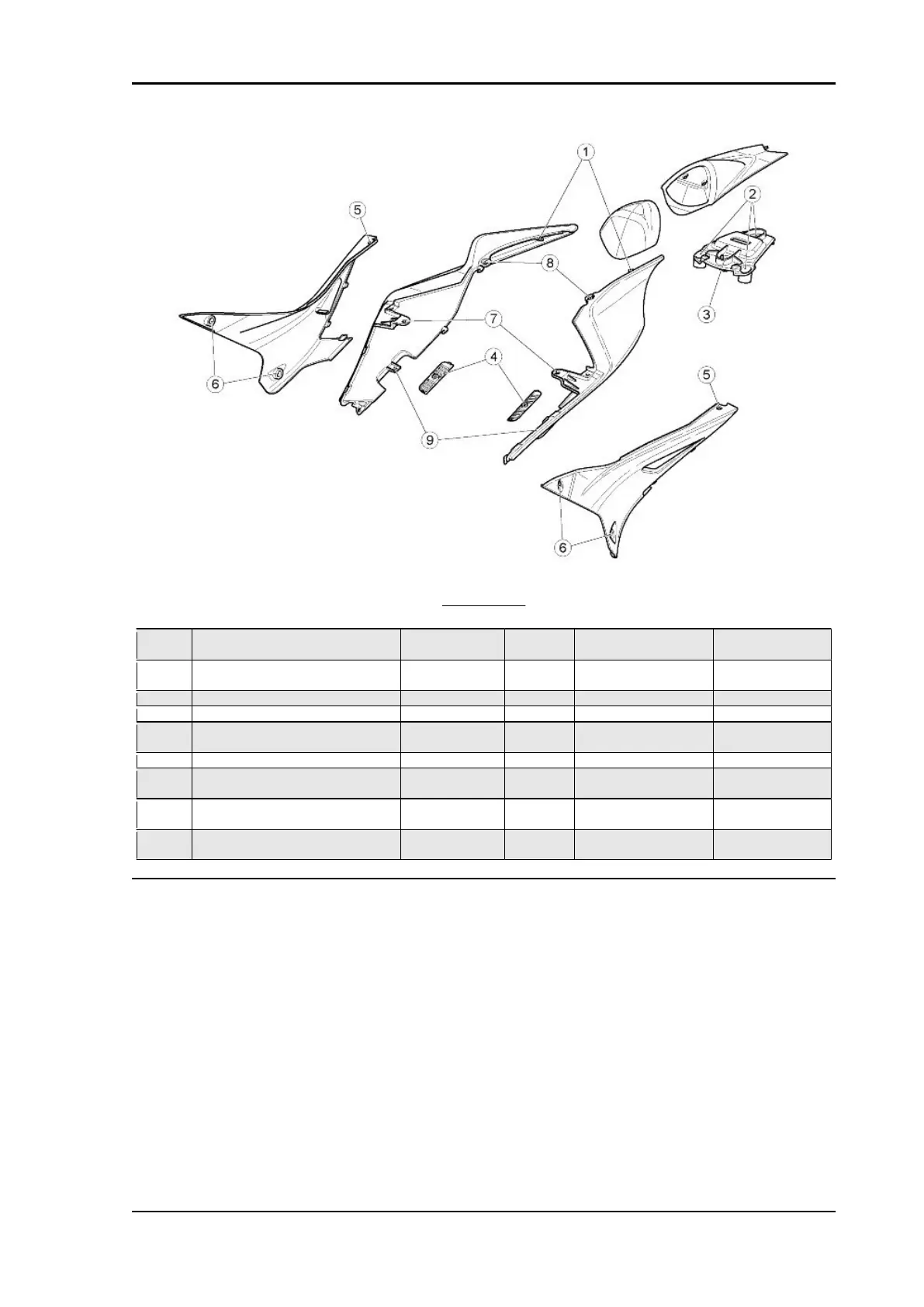

TAIL FAIRING
pos.
Description Type Quantity Torque Notes
1 Rear screws fastening tail fairing to
taillight bracket
M5 2 3 Nm (2.21 lbf ft) -
2 Screws fastening the saddle cover
base to the saddle cover
SWP 2.9 3 1 Nm (0.74 lbf ft) -
3 Saddle cover pin fixing screws M4 1 1.5 Nm (1.11 lbf ft) -
4 Screws fastening grilles to tail fairing M5 2 0.5 Nm (0.37 lbf ft) -
5 Screws fastening side fairings to tail
fairing
M5 2 1 Nm (0.74 lbf ft) -
6 Screws fixing side fairings to tank M5 2 + 2 2 Nm (1.47 lbf ft) -
7 Screws fastening tail fairing to saddle
mounting
M5 2 3 Nm (2.21 lbf ft) -
8 Screws fastening tail fairing to saddle
mounting bracket
M5 2 2 Nm (1.47 lbf ft) -
9 Screws fixing tail fairing to lower sad-
dle mounting fastener
M5 2 3 Nm (2.21 lbf ft) -
RSV4 Factory a-PRC Characteristics
CHAR - 39
