If the scorings are deep, replace the stem.
Use a dial gauge to check that the stem bending is below the limit value.
If over the value, replace the stem.
CAUTION
A BENT STEM SHOULD NEVER BE STRAIGHTENED BECAUSE ITS STRUCTURE WOULD BE
WEAKENED AND USING THE VEHICLE MAY BECOME DANGEROUS.
Characteristic
Bending limit:
0.2 mm (0.00787 in)
Sleeve
Check that there are no damages and/or cracks; otherwise, replace it.
Springs
Check that the springs are in good condition. Check that the length of the springs is within the specified
tolerance range.
Replace the springs if the length is not within the specified tolerance range.
SPRING MINIMUM LENGTH WHEN UNLOADED: 254 mm (9.99 in)
MINIMUM COUNTERSPRING LENGTH 35 mm (1.38 in)

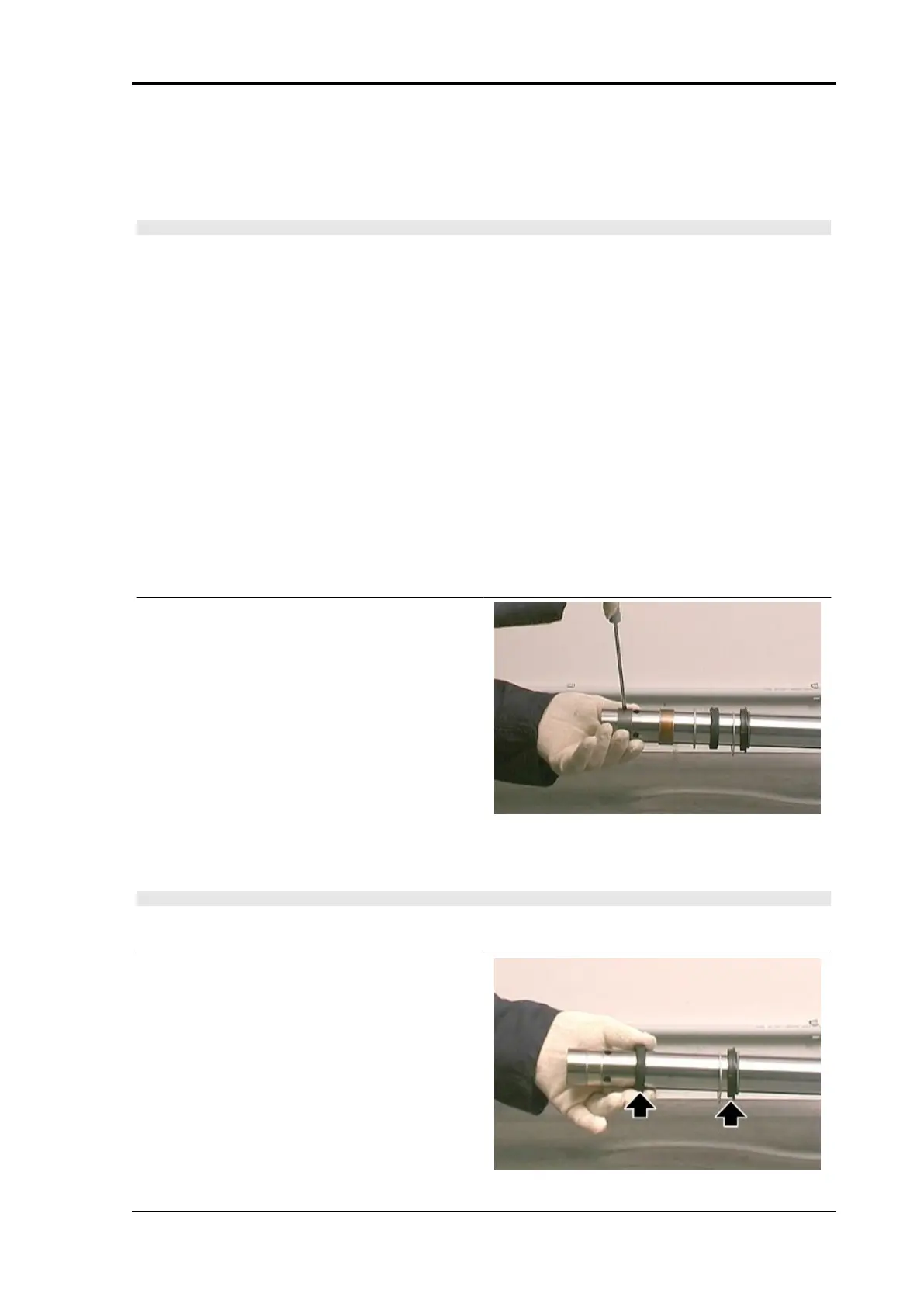

Check that the following components are in good
conditions:
•
sliding bushing;
•
guide bushing;
•
piston.
If there are signs of excessive wear or damage, replace the affected component.
CAUTION
REMOVE ANY IMPURITY IN THE BUSHINGS, TAKING CARE NOT TO SCRATCH THEIR SUR-
FACE.
Replace the following components with new ones:
•
seal;
•
dust gaiter
•
the two OR on the regulator.
RSV4 Factory a-PRC Suspensions
SUSP - 411
