APRILIA RSV4 Factory a-PRC 2009 User Manual

CYLINDERS - PISTON
pos. Description Type Quantity Torque Notes
1 Screws fastening water union onto
crankcase
M6x40 2 10 Nm (7.37 lbf ft) -

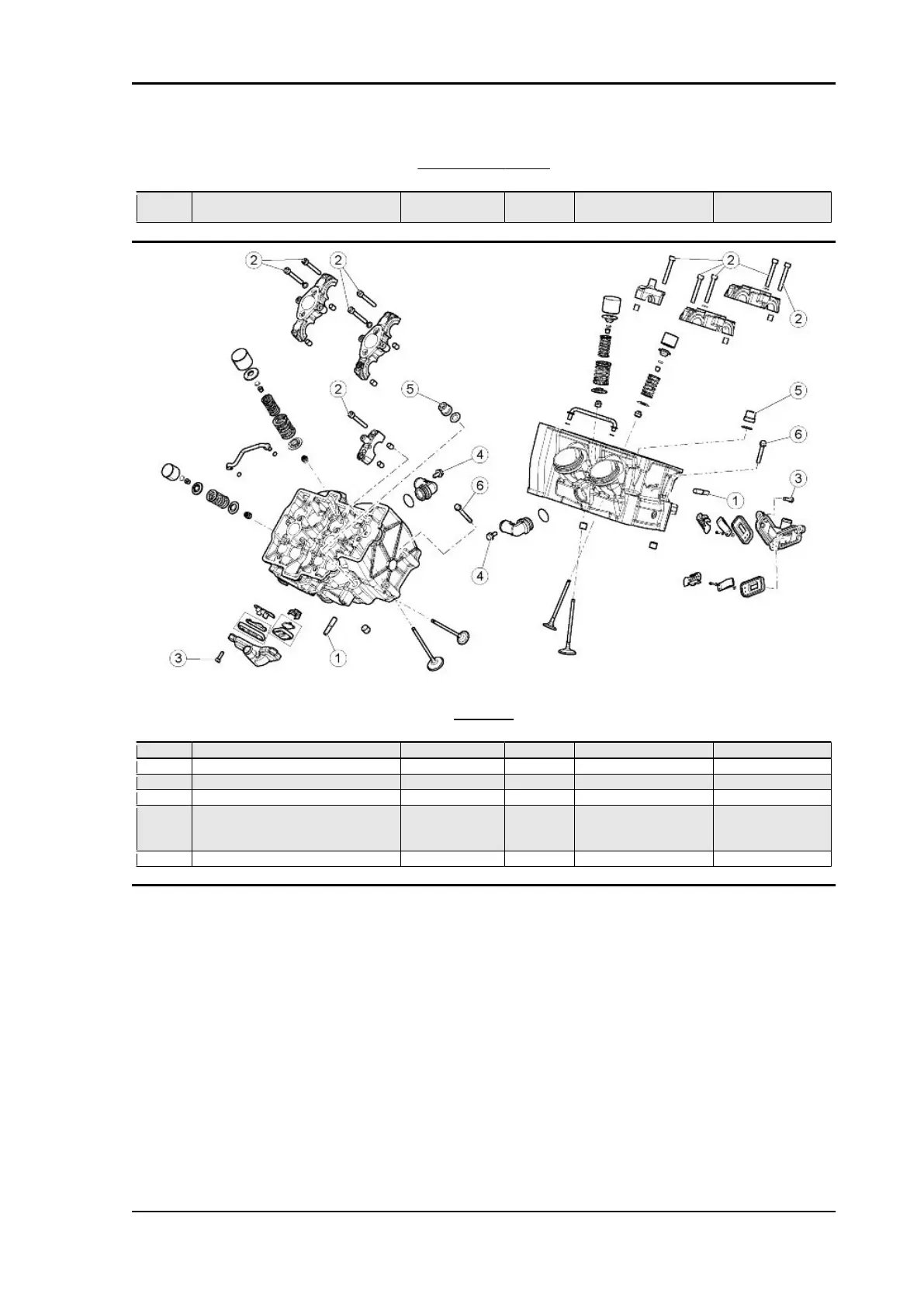

HEADS
pos.
Description Type Quantity Torque Notes
1 Exhaust stud bolts - 8 10 Nm (7.37 lbf ft) -
2 Camshaft cam tower fixing screws M6x45 20 12 Nm (8.85 lbf ft) -
3 Reed valve cover fixing screws - 6 6 Nm (4.42 lbf ft) -
4 Water outlet union fixing screw - 2 12 Nm (8.85 lbf ft) Loct. 243
5 Flanged head nut - 12 30 + 55 Nm (22.13 +
40.56 lbf ft)
Molykote spray on
thread and under
head
6 Head fastener screw, chain side M6x55 4 12 Nm (8.85 lbf ft) -
