Ch. 21. Shipping or Moving Sec. 21.4. Shipping a Complete Cypher AFM System
Minimum Preparation System Shut Down: (Section 21.3 on page 238)
Scanner Removal: (Section 21.4.1 on page 239)
Enclosure Top Removal: (
Section 21.4.2 on page 242)
Backpack Removal [partial]: (Section 21.4.3 on page 244 trough step 4)
Chassis Removal: (Section 21.4.4 on page 246)

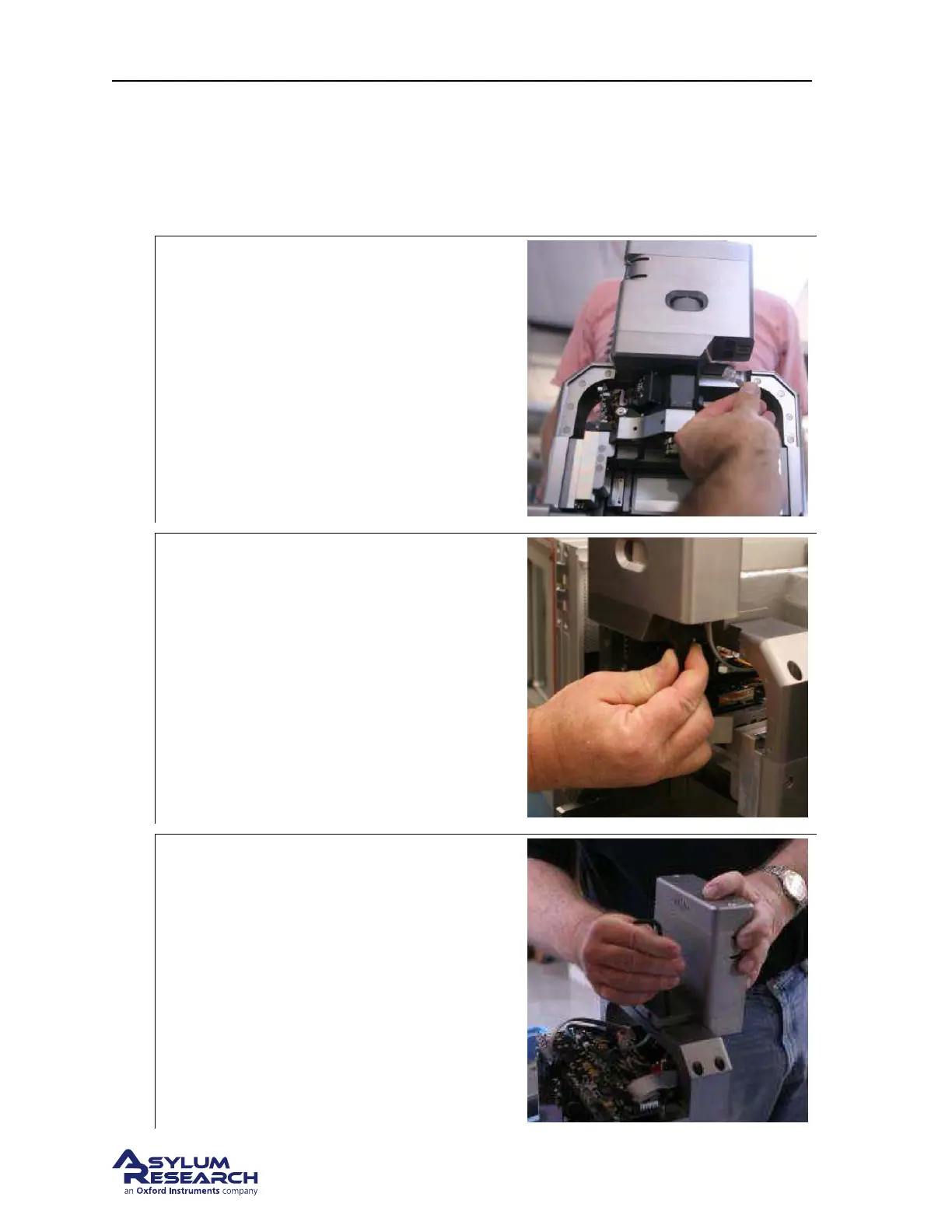

1.
Remove the phone cable from the bottom side
of the view module (note: you need to pinch
one side).
2.
Remove the FireWire cable from the bottom
side of the view module (black cable-like
USB).
3.
Unscrew and remove 2 screws from the top
bridge of the view module using the 3/16”
Ball End Allen Wrench L-Key.
(part#290.105)-BE CAREFUL TO HOLD
VIEW MODULE TIGHTLY WITH YOUR
OTHER HAND BECAUSE IT WILL FALL
FORWARD OTHERWISE!!!
