Ch. 21. Shipping or Moving Sec. 21.4. Shipping a Complete Cypher AFM System
Materials
991.016: Cardboard Carton 16”x14”x17”
990.034: Foam (Chassis Foam)
113.495: Chassis Packing Guard a.k.a “the Mullet”
10-32 x ¼ or ½ BHCS SS Bolts (2EA) depending on which guard you have
10-32 x1 ½ or1 ¾ BHCS SS Bolts (2EA) depending on which guard you have)
10-32 Kepnuts (2 EA)
Lens Tissue
Kapton Tape (1/2” or 3/4”)
Tools
290.119: 1/8” Hex Wrench L-key
Pair of pliers or adjustable wrench.
Final Wt 51 lbs / 23 kg
Minimum Preparation System Shut Down: (
Section 21.3 on page 238)
Scanner Removal: (
Section 21.4.1 on page 239)
Enclosure Top Removal: (Section 21.4.2 on page 242)
Backpack Removal [partial]: (Section 21.4.3 on page 244 trough step 4)
Chassis Removal: (
Section 21.4.4 on page 246)

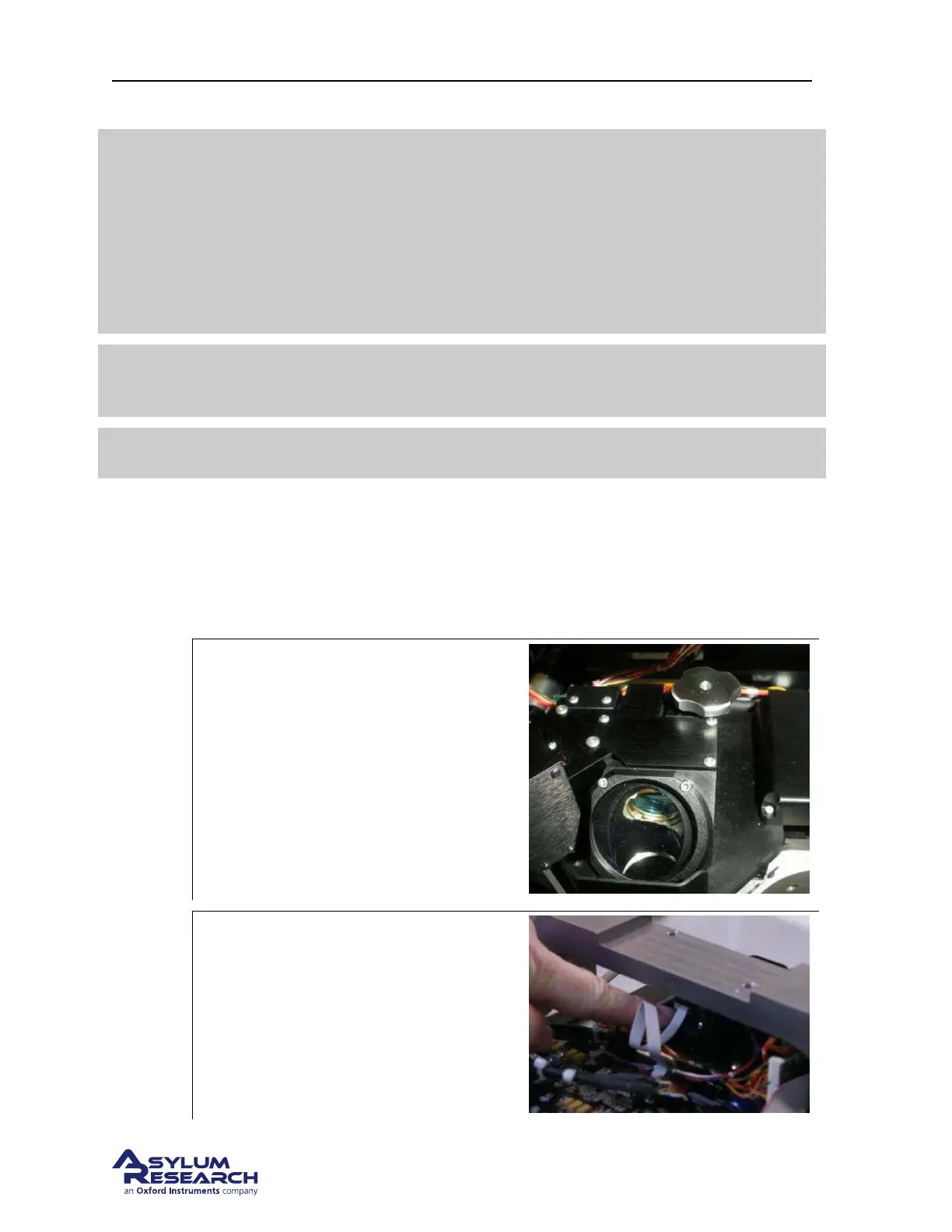

1. Remove the light cube from the head.
a)
Undo the clamping (4 petal knob); screw
ONLY ¼ turn.
b)
Disconnect the light cube mating cable
(thin gray ribbon cable) from the light
cube; pinch and wiggle loose until it is
detached.
BETA
Page 255
