ATmega128

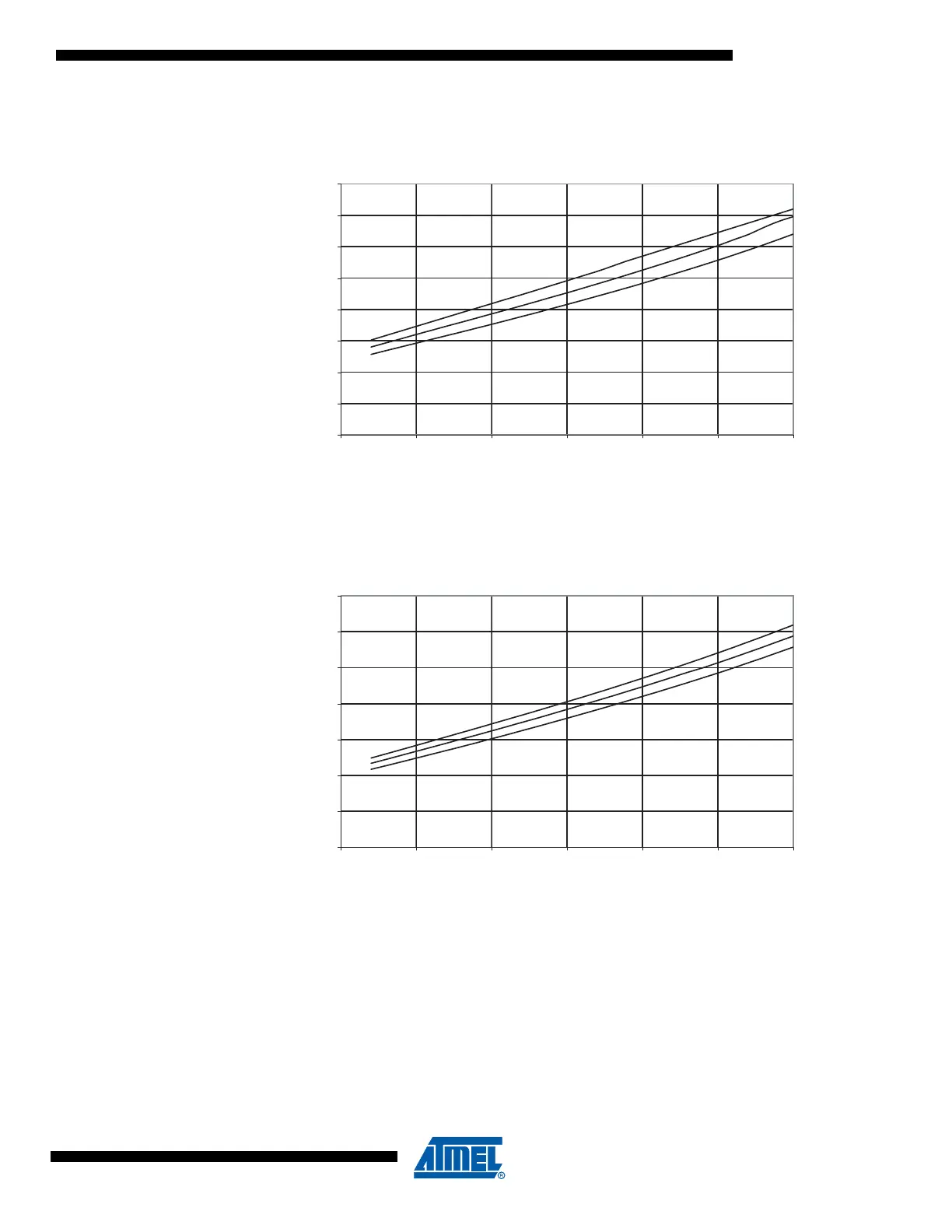

Figure 164. Active Supply Current vs. V
CC
(Internal RC Oscillator, 2 MHz)
Figure 165. Active Supply Current vs. V
CC
(Internal RC Oscillator, 4 MHz)
ACTIVE SUPPLY CURRENT vs. V
CC
INTERNAL RC OSCILLATOR, 2 MHz
85 °C
25 °C
-40 °C
0
1
2
3
4
5
6
7
8
2.5 3 3.5 4 4.5 5 5.5
V
CC
(V)
I
CC
(mA)
ACTIVE SUPPLY CURRENT vs. V
CC
INTERNAL RC OSCILLATOR, 4 MHz
85 °C
25 °C
-40 °C
0
2
4
6
8
10
12
14
2.5 3 3.5 4 4.5 5 5.5
V
CC
(V)
I
CC
(mA)
