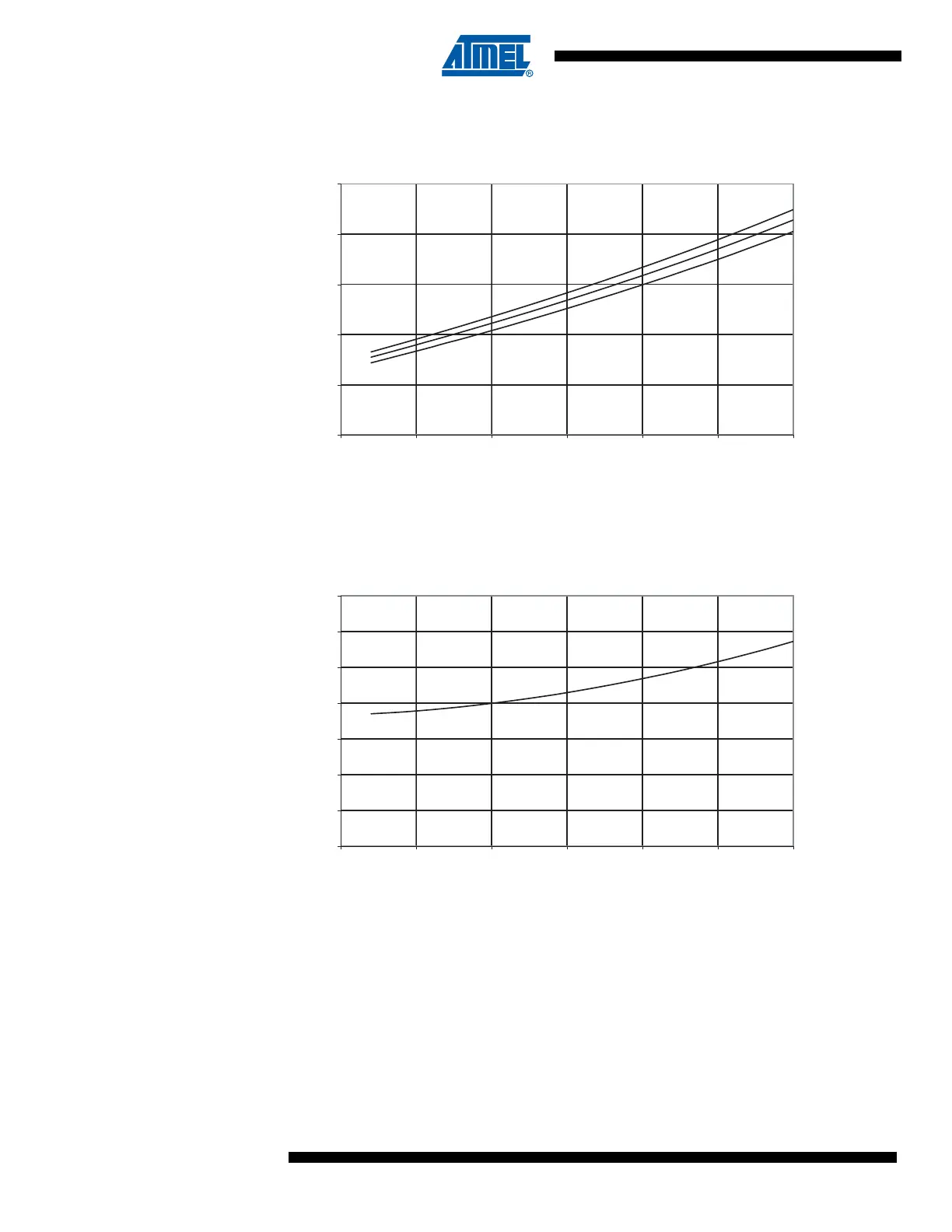

Figure 166. Active Supply Current vs. V
CC
(Internal RC Oscillator, 8 MHz)
Figure 167. Active Supply Current vs. V
CC
(32 kHz External Oscillator)
ACTIVE SUPPLY CURRENT vs. V
CC
INTERNAL RC OSCILLATOR, 8 MHz
85 °C
25 °C
-40 °C
0
5
10
15
20
25
2.5 3 3.5 4 4.5 5 5.5
V
CC
(V)
I
CC
(mA)
ACTIVE SUPPLY CURRENT vs. V
CC
32 kHz EXTERNAL OSCILLATOR
25 °C
0
20
40
60
80
100
120
140
2.5 3 3.5 4 4.5 5 5.5
VCC (V)
ICC (uA)
