ATmega128

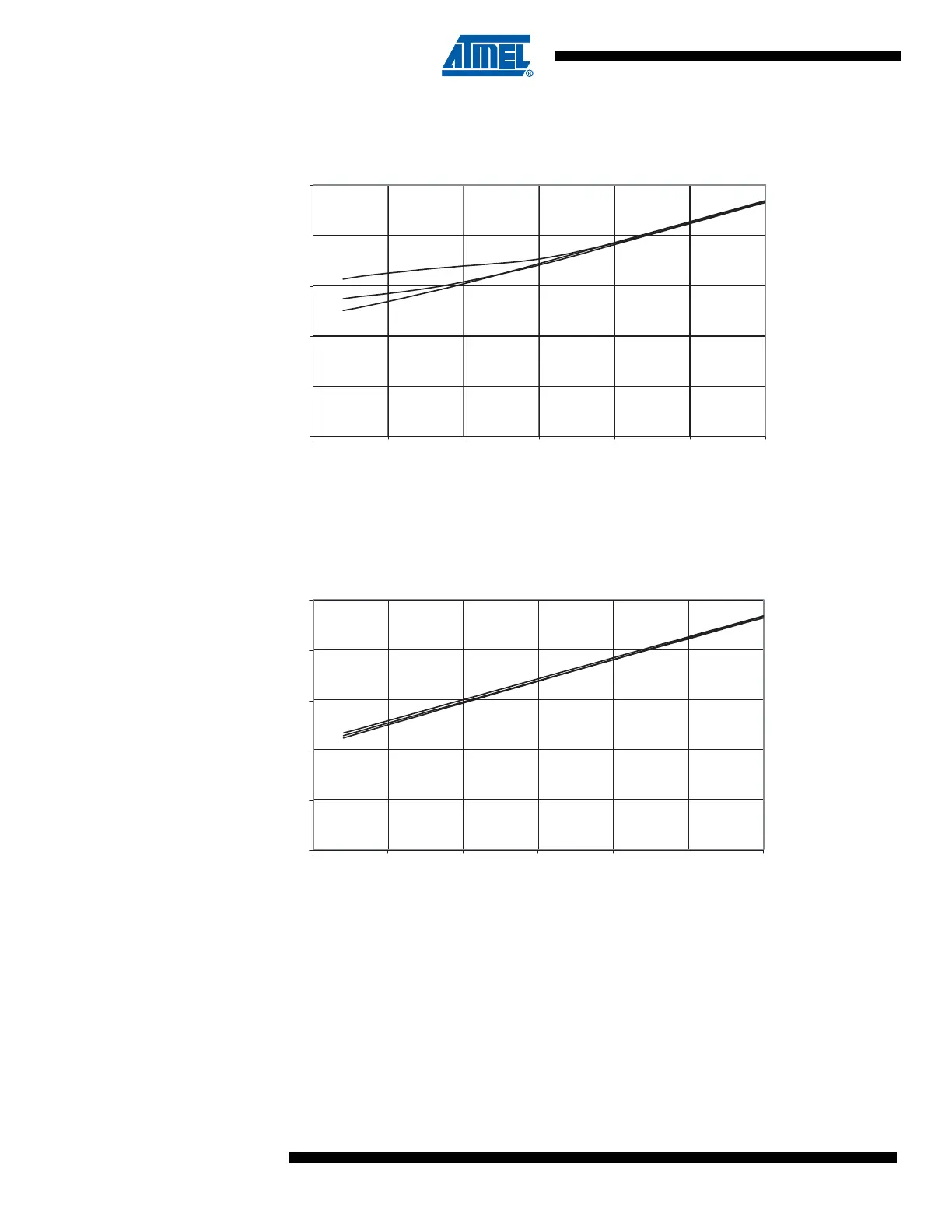

Figure 214. Reset Input Threshold Voltage vs. V
CC
(VIH, Reset Pin Read as ‘1’)
Figure 215. Reset Input Threshold Voltage vs. V
CC
(VIL, Reset Pin Read as ‘0’)
RESET INPUT THRESHOLD VOLTAGE vs. V
CC
VIH, RESET PIN READ AS '1'
85 °C
25 °C
-40 °C
0
0.5
1
1.5
2
2.5
2.5 3 3.5 4 4.5 5 5.5
V
CC
(V)
Threshold (V)
RESET INPUT THRESHOLD VOLTAGE vs. V
CC
VIL, IO PIN READ AS '0'
85 ˚C
25 ˚C
-40 ˚C
0
0.5
1
1.5
2
2.5
2.5 3 3.5 4 4.5 5 5.5
V
CC
(V)
Threshold (V)
