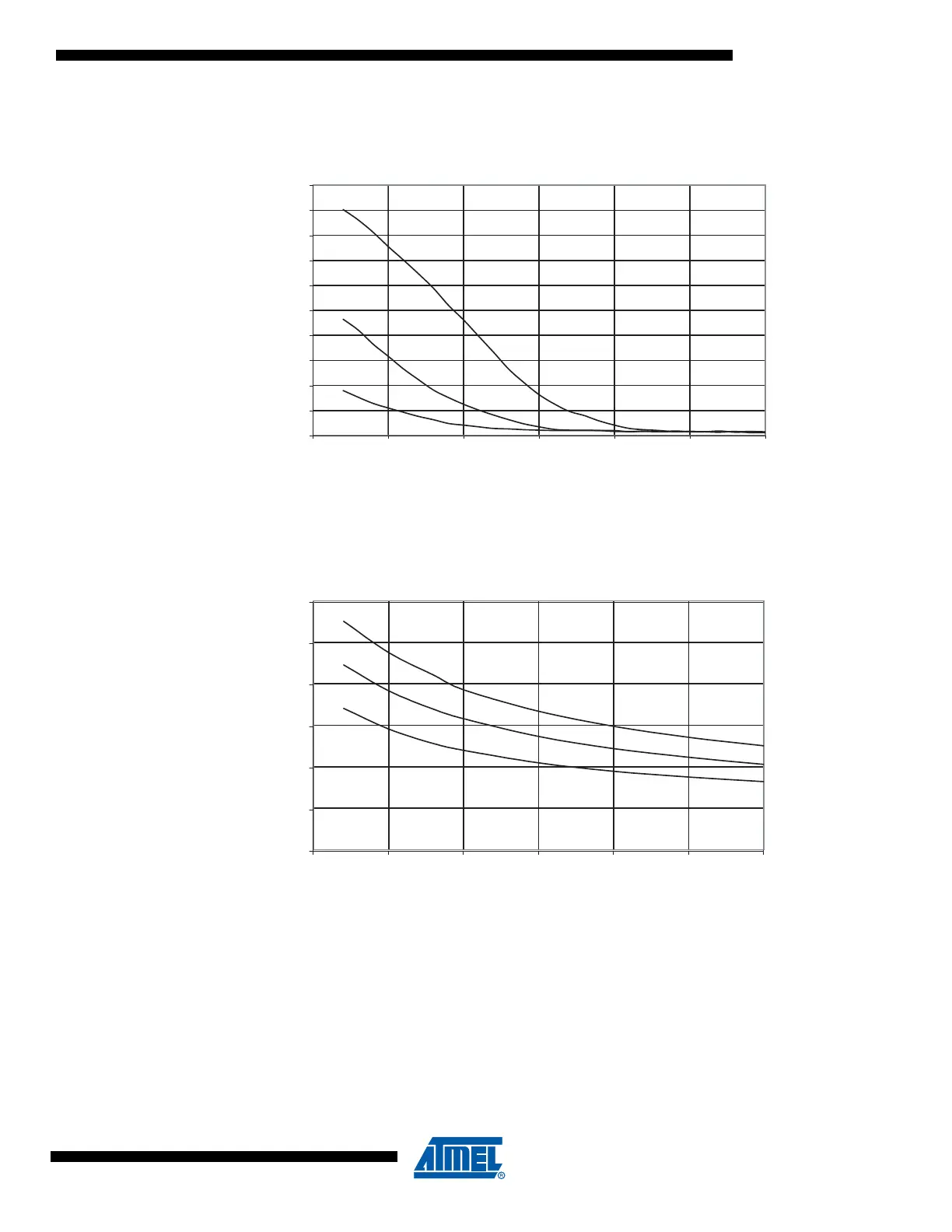

Figure 216. Reset Input Pin Hysteresis vs. V
CC
Figure 217. Reset Pulse width vs. V
CC
(External Clock, 1 MHz)
RESET INPUT PIN HYSTERESIS vs. V
CC
85 ˚C
25 ˚C
-40 ˚C
0
0.05
0.1
0.15
0.2
0.25
0.3
0.35
0.4
0.45
0.5
2.5 3 3.5 4 4.5 5 5.5
V
CC
(V)
Input Hysteresis (mV)
RESET PULSE WIDTH vs. V
CC
External Clock, 1 MHz
85 °C
25 °C
-40 °C
0
0.2
0.4
0.6
0.8
1
1.2
2.5 3 3.5 4 4.5 5 5.5
V
CC
(V)
Pulsewidth (us)
