AudioCodes 405 - Figure 2-1: Front View; Table 2-1: Font View Description

405 and 405HD IP Phone
User's Manual 12 Document #: LTRT-12045

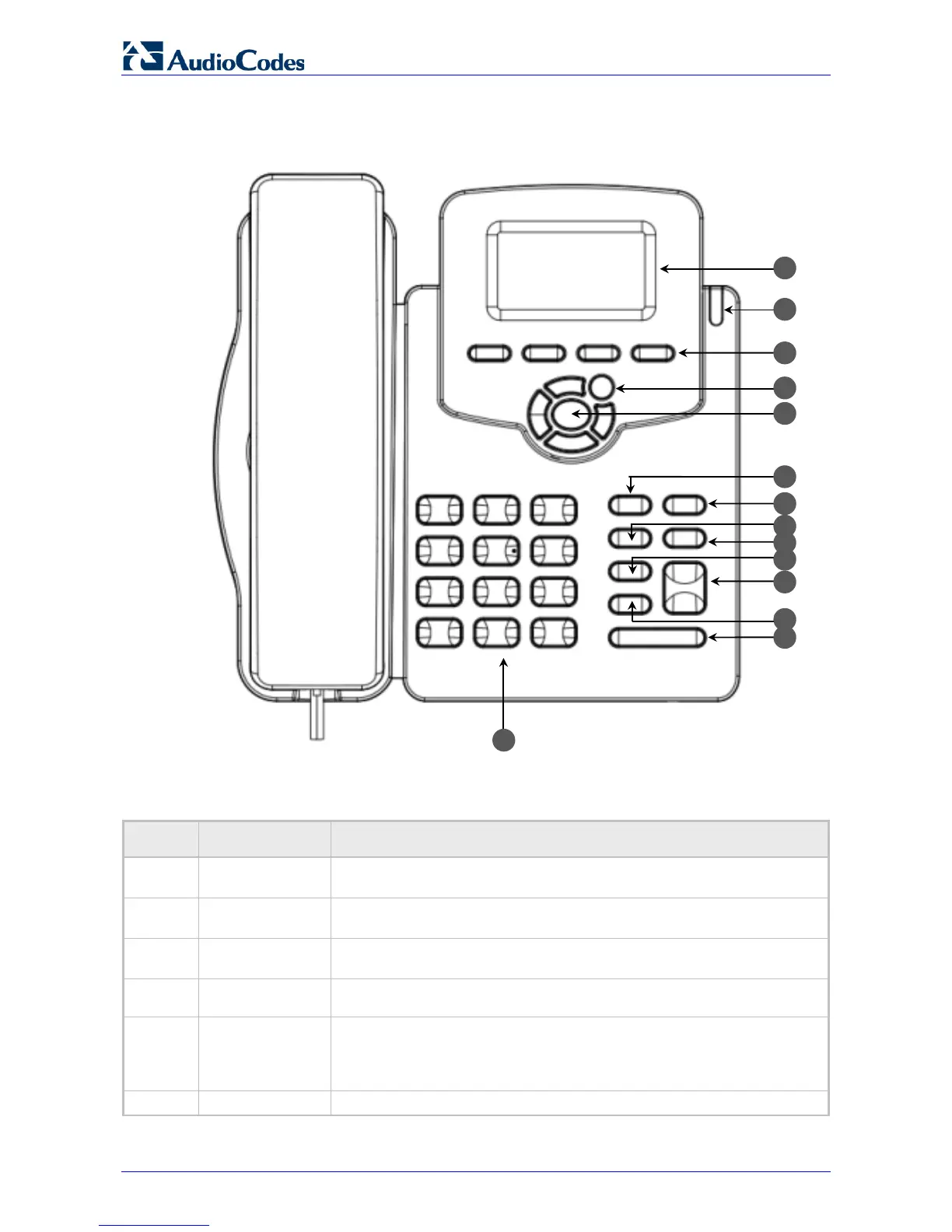

Figure 2-1: Front View
Table 2-1: Font View Description
Item # Label/Name Description
1 LCD
Liquid Crystal Display - interactive screen displaying calling information,
enabling you to set up phone features.
2 Ring LED
Flashing green light indicates an incoming call.
Steady green light indicates that there is voicemail.
3 Softkeys
See Section 3.2 on page 18 for details on the four softkeys and the
available functions they offer.
4
MENU
Accesses menus (1) Call Log (2) Directory (3) Keys Configuration
(4) Settings (5) Status (6) Administration.
5
Navigation
Control / OK
Press the upper rim to scroll up menus/items in the LCD display screen.
Press its lower rim to scroll down. Press its left or right rim to move the
cursor left or right (when editing a contact number for example). Press the
OK button to select a menu/item/option.
6
VOICE MAIL
Retrieves voice mail messages.
