30

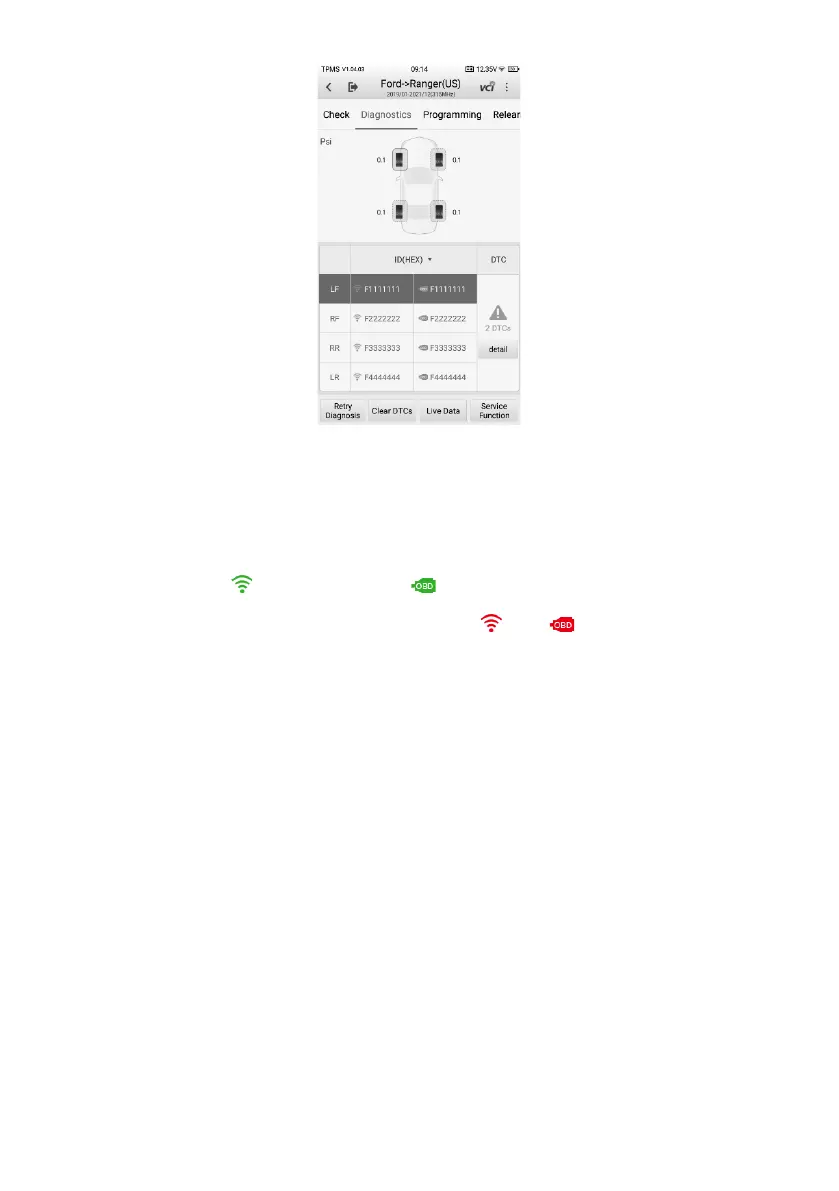

Figure 4-12 Diagnostics Screen
If the OBD function is supported by the test vehicle, the sensor ID saved in the TPMS
ECU will be retrieved and displayed on the screen with an OBD icon adjacent to it.
If the sensor ID retrieved from sensor activation is the same as the ID saved in the ECU,
the trigger mark ( ) and OBD mark ( ) will display green.
If the IDs are different, the marks will display red ( and ). In this case, the vehicle
ECU cannot recognize the sensor installed on the vehicle.
If the OBD function is not supported by the test vehicle, the sensor ID saved in the TPMS
ECU cannot be retrieved and only the sensor ID retrieved from sensor activation will
display on the screen with a signal icon.
Details
If Diagnostic Trouble Codes (DTCs) are presented in the TPMS ECU, a yellow hazard
icon will show up in the DTC column with the number of faults displayed below, and the
detail button is available (see Figure 4-12 Diagnostics Screen).
Tap detail in the DTC column to view the detailed information of the DTCs.
In this screen, the detailed fault definition will display. Select one of the DTC and tap
Search, and the tablet will automatically connect to the Internet and additional
information will display.
If no DTCs present in the TPMS ECU, a green “No DTC” message will display on the
DTC screen.
