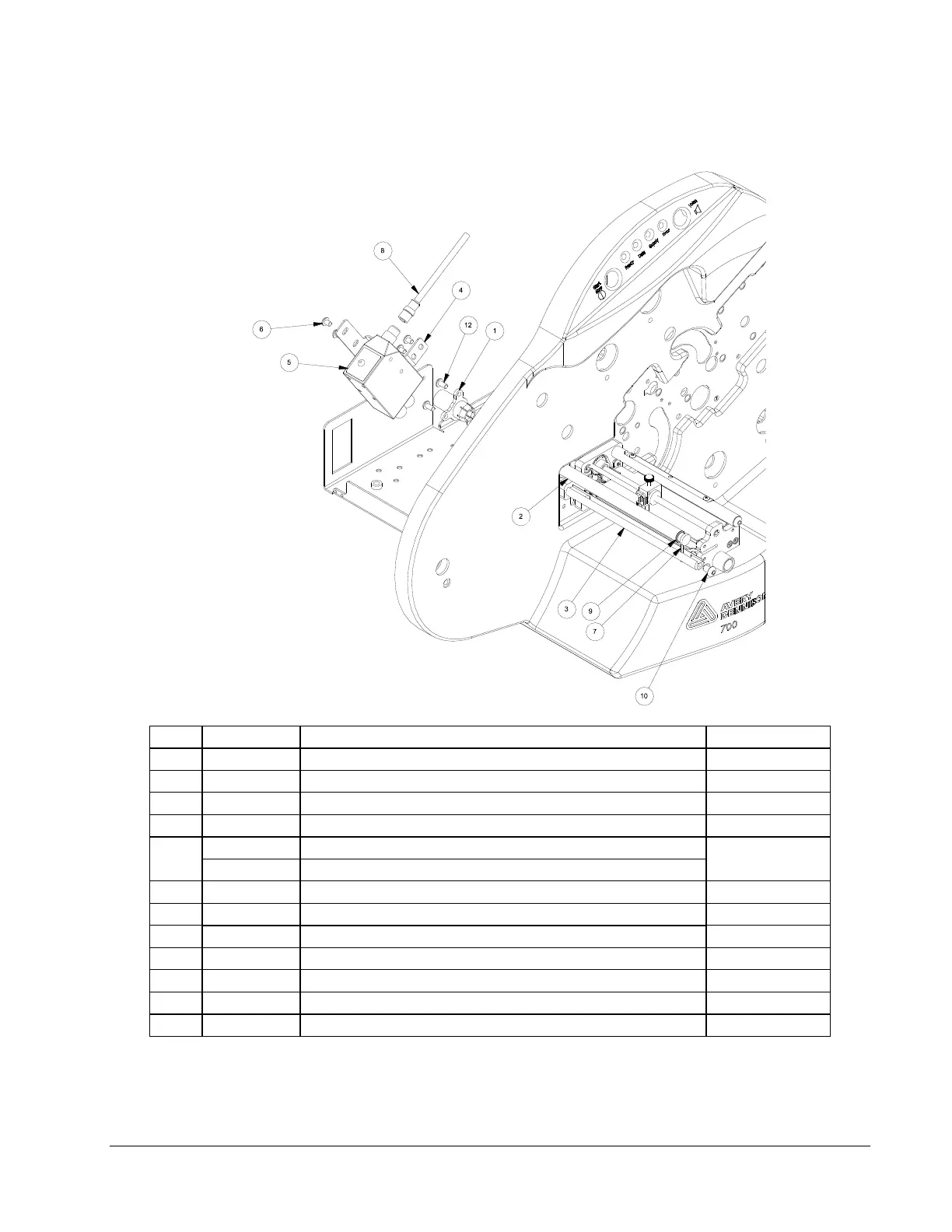

Move the configuration switch to RUN position.
Item
Part #
Description
1.1.1.1.1.2 Qty
1
594008
Collet, Sensor mount
1
2
624029
Mount, Fiber Optic
1
3
624026
Shaft, Turn Bar
1
4
581316
Bracket, Color Sensor, Mount
1
5*
581181
Sensor, Contrast, Sick
1
581182
Sensor, Color, Sick
6
990089
10-32 x ¼ BHCS
4
7
591304
Light Guide, Fiber Optic
6
8
581124
Cable, Contrast Sensor
1
9
991305
O-Ring, 5/16 x ½ x .032 Wall
1
10
990134
¼-20 x 3/8 BHCS
1
11
620006D
Instructions, Top Color / Contrast Sensor
1
12
990090
10-32 x 3/8 BHCS
2
*620006 use part no. 581181
*620007 use part no. 581182
