3.6 Communications Cable Installation
Use one of the following interface cable options:
 Null-modem serial cable – Part number 05581139 connector
 USB / Serial adapter – Part number 05581140
 Ethernet adapter – Part number 05591105. ASUS, BCM, or Advantech
motherboards support the Ethernet port on the printer so the Ethernet
adapter is not required.
3.6.1 Serial Cable
1. Locate the communication cable connectors on the backside of the
printer (see Figure 6).
2. Plug in the serial cable connection to the serial port.
The default serial port setup in the printer is 115,200 baud, no parity, 8 data bits,
1 stop bit.

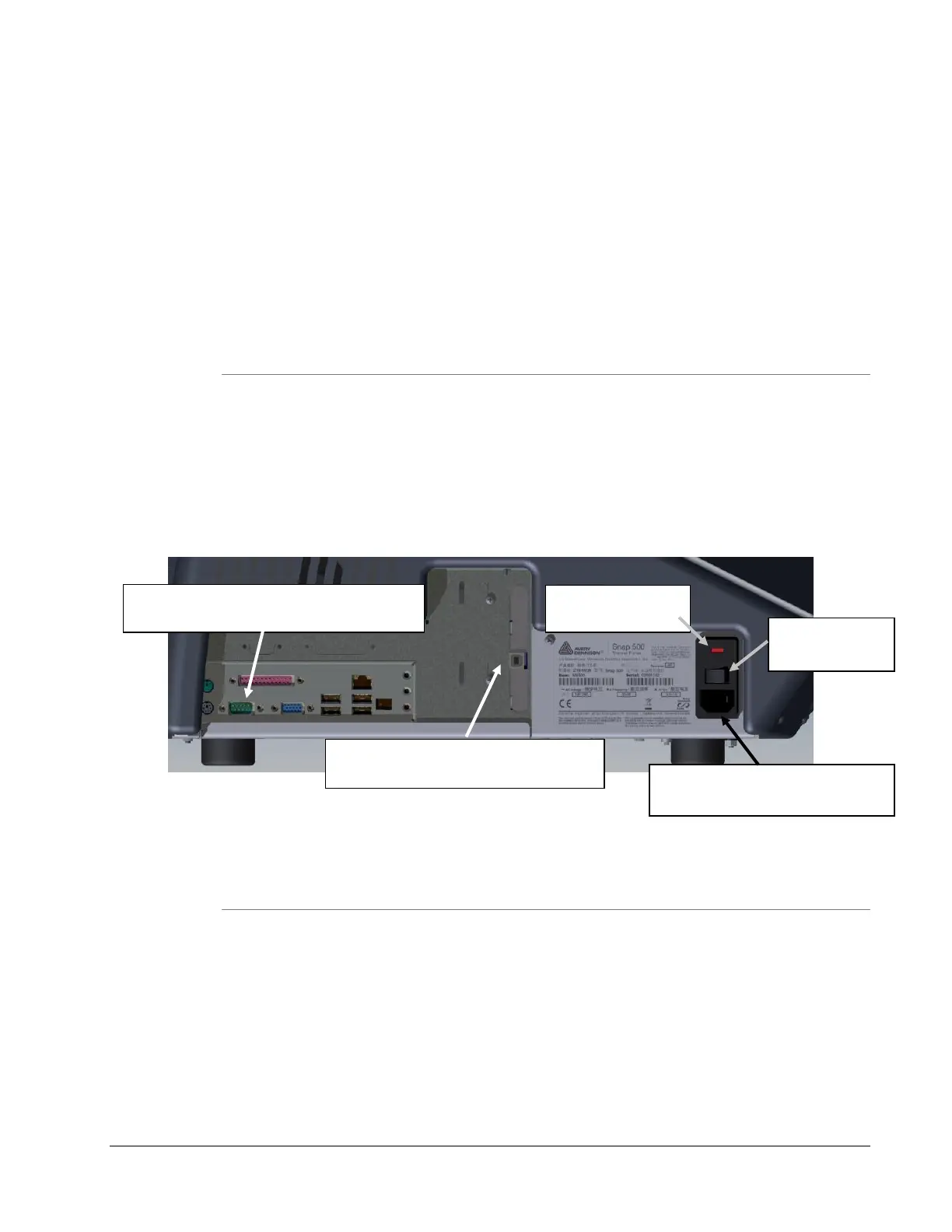

Figure 6: Rear View of the Printer
3.6.2 USB Cable
1. Use either the USB option card if higher download speeds are required
for the extra expense of the option, or
2. USB to Serial adapter, if the USB connector is needed and serial
download speed is acceptable.
Serial Port for Communication to Printer
AC Connection for Power Cable
Power Switch
Auto Strapping
USB or Ethernet cards (if installed)
