User’s Manual—SNAP™ 700 Printer 47
Classification: Avery Dennison - Public
a. For short feeds ranging from 1 - 2 inches (25 mm – 51 mm), use the
upper sensor.
b. For long feed and/or woven labels, use the lower sensor.
2. Depress the top portion of the toggle switch to use the upper sensor.
3. Depress the bottom portion of the toggle switch to use the lower sensor.
5.2.3 Stacker Angle
The angle of the stacker is adjustable, and can be tipped out a maximum of 20
degrees at the bottom from the vertical position shown in Figure 5. Since there is
no single stacker angle that is best for all label lengths and types of materials,
you can adjust the stacker angle to best accommodate each run.
1. When the feed is 2 inches (51 mm) or longer, or when using coated tapes,
the stacker works well with the bottom tipped out.
2. When using woven tapes, the stacker should be vertical or almost vertical.

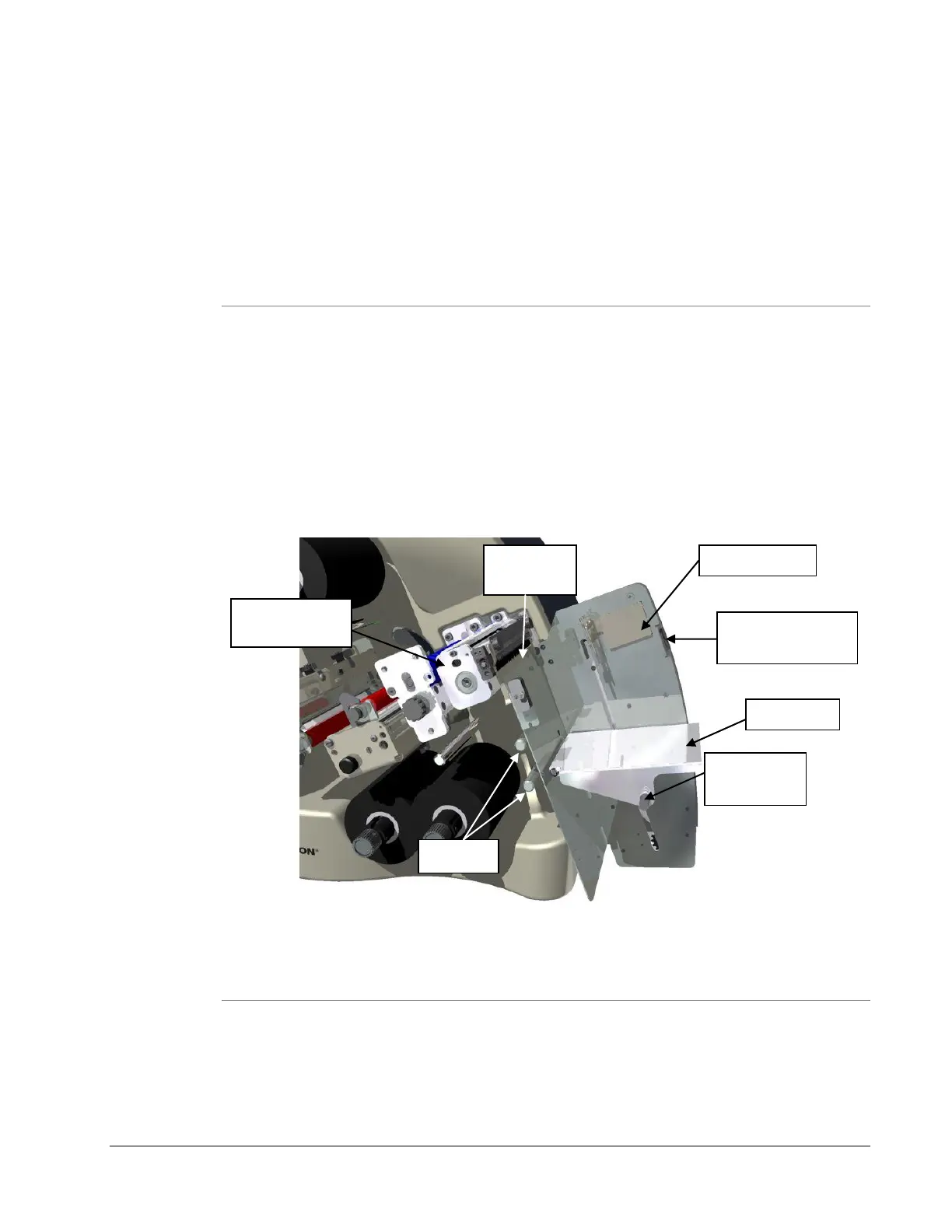

Figure 14. Stacker Angle – Almost Vertical
5.2.4 Platform
The platform angle can be adjusted in two different locations to alter the angle at
which labels are stacked and stopped.
1. Pull the spring loaded Adjustment Pin and move the platform from a
horizontal to a backwards angle approximately 20 degrees up on the outer
Platform
Stacker Sensor
Switch
Label Stop
Rotary Knife
Assembly
Shafts
Nip Roller
Stripper
Plate
Adjustment
Pin
