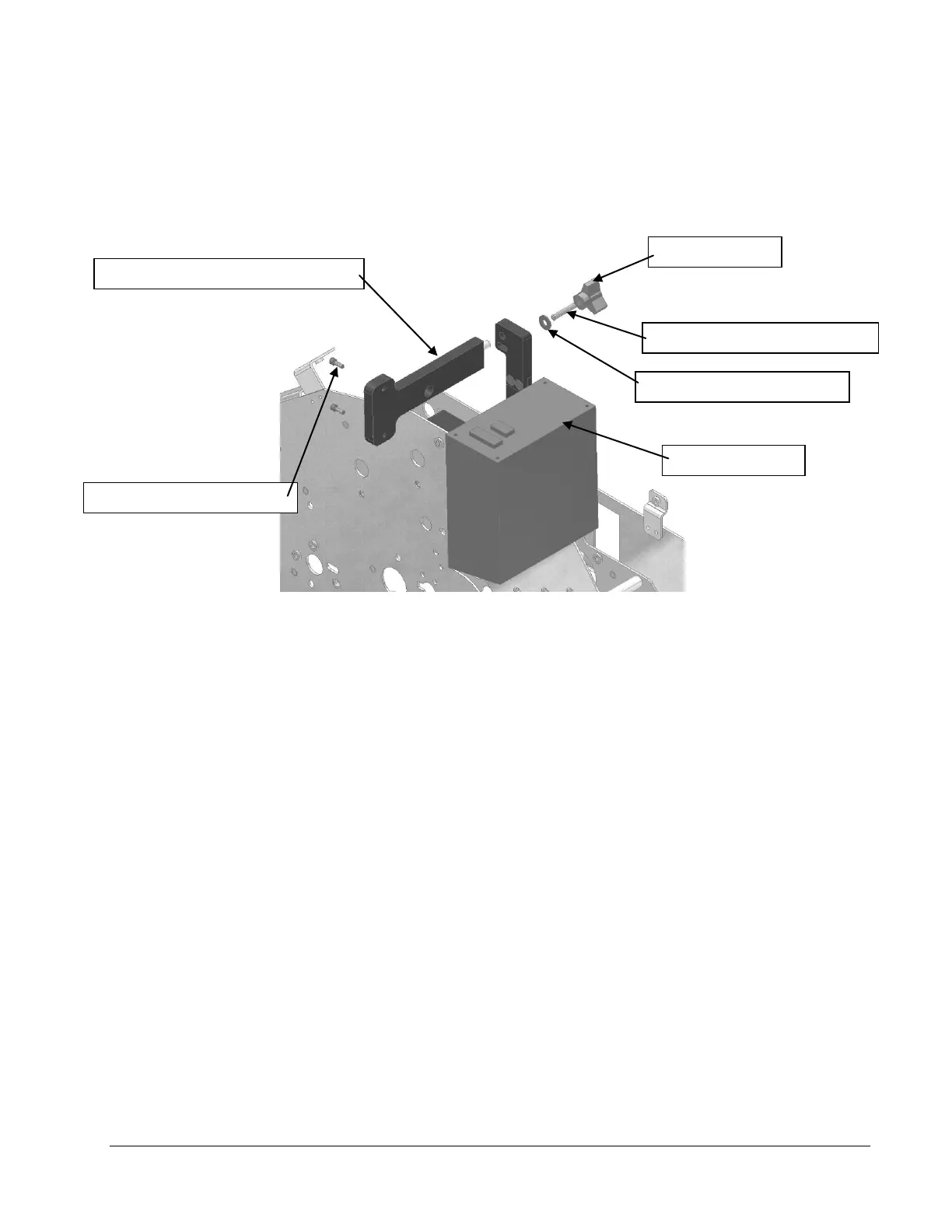

6. Install the Bracket Verifier Mount (621307A) to the Bracket, Verifier Upright (621304) as shown
using a washer, set screw and knob. Attach the Verifier to the Assembly, Bracket, Verifier Mount
with (2) 6-32 x 3/8 Cap Screws (990016).
990016 – 6-32 x 3/8 SHCS
621307A – Bracket, Verifier Mount
991204 – Knob
989979 – 10-32 x 1 Set Screw
990102 – #10 SAE Washer
551144 – Verifier
