Avid Technology MV3000 DELTA - Page 45

T1689 Technical Manual Rev 07 Specification
MV3000 Air Cooled DELTA DELTA Rectifier Module
Page 45

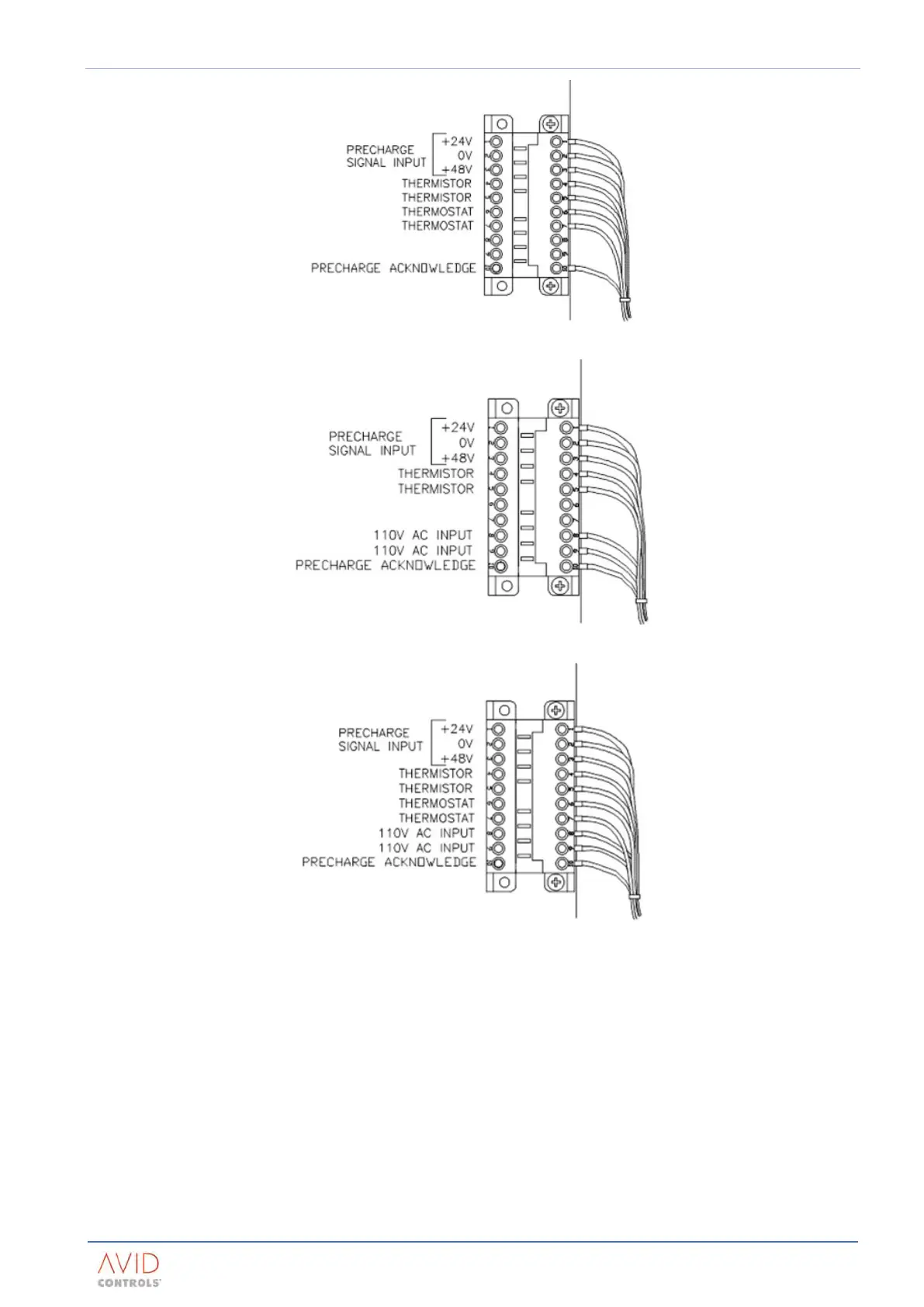

Figure 2–11. – Rectifier Bridge Module Terminals (GDR633-4401, GDR872-4401 & GDR1168-4401))
Figure 2–12. – Rectifier Bridge Module Terminals (GDR391-4601 & GDR721-4601))
Figure 2–13. – Rectifier Bridge Module Terminals (GDR633-4601, GDR872-4601 & GDR1168-4601))
NOTES
Terminals will accept up to 2.5 mm
2
(12 AWG) flexible cables.
To prevent failure of the Rectifier Bridge Module pre-charge components, the rectifier pre-charge acknowledge
signal (TB1/10) must be connected to the control module. If this signal is not high, the control module must
not allow the drive to run.
Power Connections
Terminations for the 3-phase supply, the d.c. output and earth/ground are detailed in Table 2–23.
