Avid Technology MV3000 DELTA User Manual

Specification T1689 Technical Manual Rev 07
DELTA Rectifier Module MV3000 Air Cooled DELTA
Page 50
Power Terminals for GDR1168 Rectifier Bridge Module
(GDR1168-4401 & GDR1168-4601)
Connections to the phase and d.c. link are may be made by copper busbars or cables.
See Figure 2–18.
When tightening connections support the terminals to prevent twisting.
Phase terminals (marked R1, S1, T1 and R2, S2, T2) appear at the right-hand side of the module and mate with
busbar risers fitted to the mounting steelwork. Once the module is in place use M10 bolts with plain and
spring washers to bolt through the six terminals to the threaded risers. The centre terminal may be rotated for
cable connection – see Figure 2–19.
DC link terminals (marked + and -) appear at the front of the module and are connected with M10 bolts
through the d.c. link busbars to the threaded terminals.
The earth terminal (M10 threaded insert) is located on the lower front of the module.

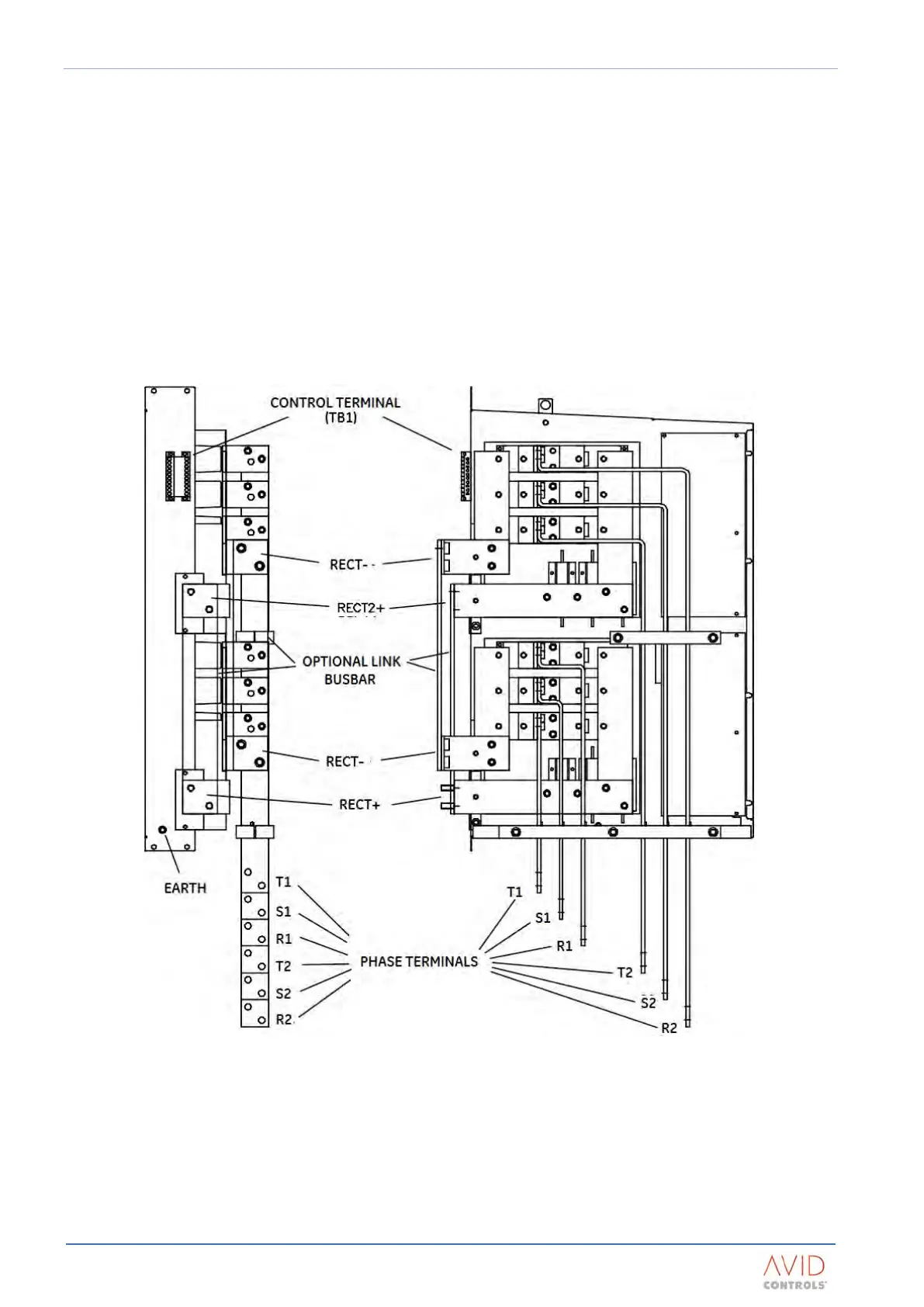

Figure 2–18. – Terminals for GDR1168 Rectifier Bridge Module
