9 Mentor will generate a “canvas” for the mosaic video wall layout with the ISF® Geometry
1.78:1 test pattern for easy visual reference regarding which part of the content will be
captured.

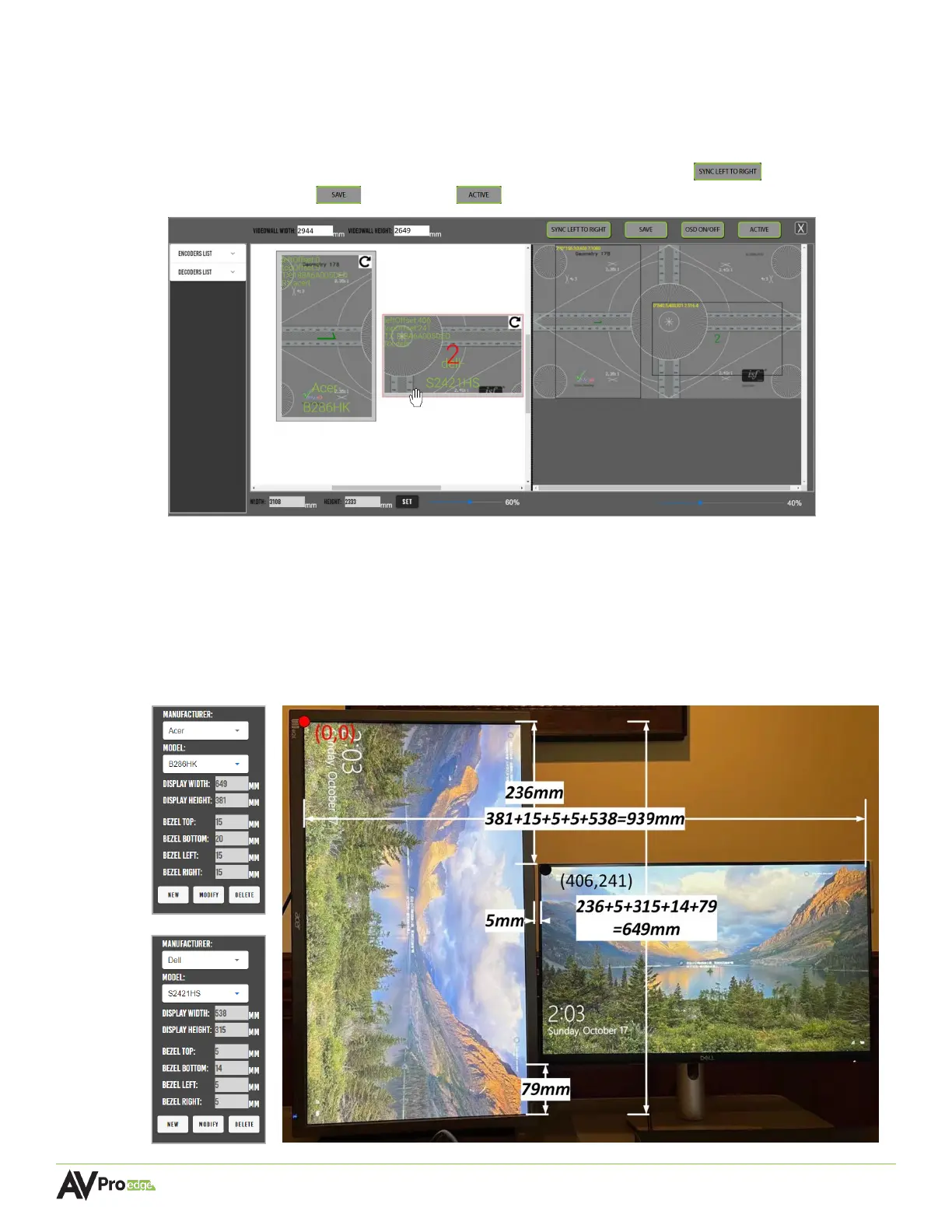

The panels can be individually adjusted by clicking and dragging the desired panels on
the white background, and selecting the sync left to right button , followed by
selecting the save and active buttons.
Measurement example:
236mm + 5mm (Dell top bezel) = 241mm
381 (Acer height) + 15 (Acer top bezel) + 5mm gap + 5mm (Dell left bezel) = 406mm
Red point / Coordinate origin: (0,0)
Black point / Coordinate: (406,241)
