5.4 Terminals

5.4.1 Location of the terminals

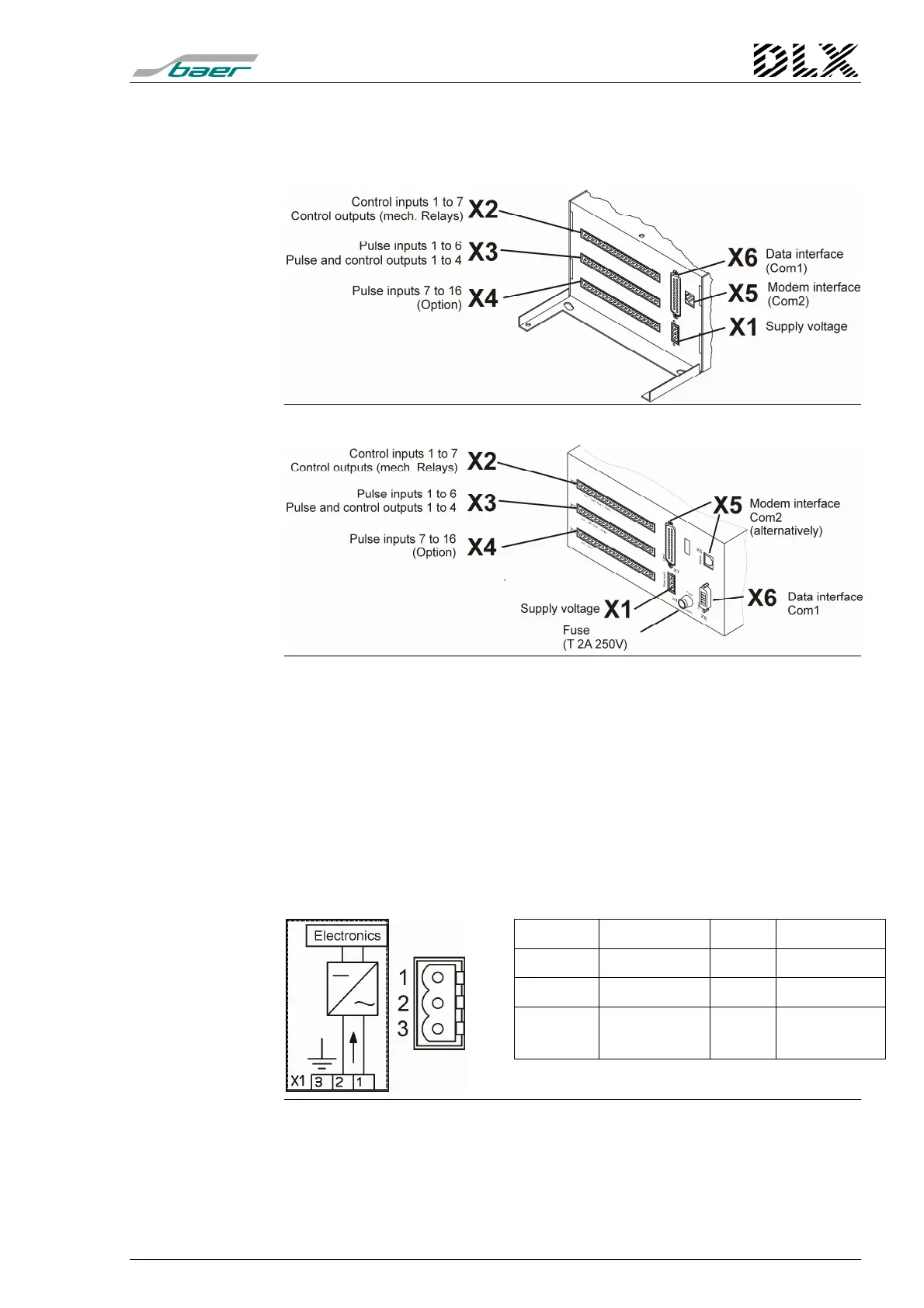

Figure 16, Location of the terminals (Housing for panel mounting)

Figure 17, Location of the terminals (19”-rack)

5.4.2 Connector X1 (Supply voltage)

Type of connector: Combicon MSTB2,5/3-ST-5,08 (Phoenix)

Function: DLX mains power supply connector

Supply voltage: 60VDC – 270VDC and

85VAC – 265VAC

Fuse: T 2A 250V

Power consumption max. 20VA

Terminal Description AC DC

1 Line L1 60-270VDC

2 Neutral N 0VDC

3 Protective

Earth

PE PE

Figure 18, Connector X1 (Supply voltage)
